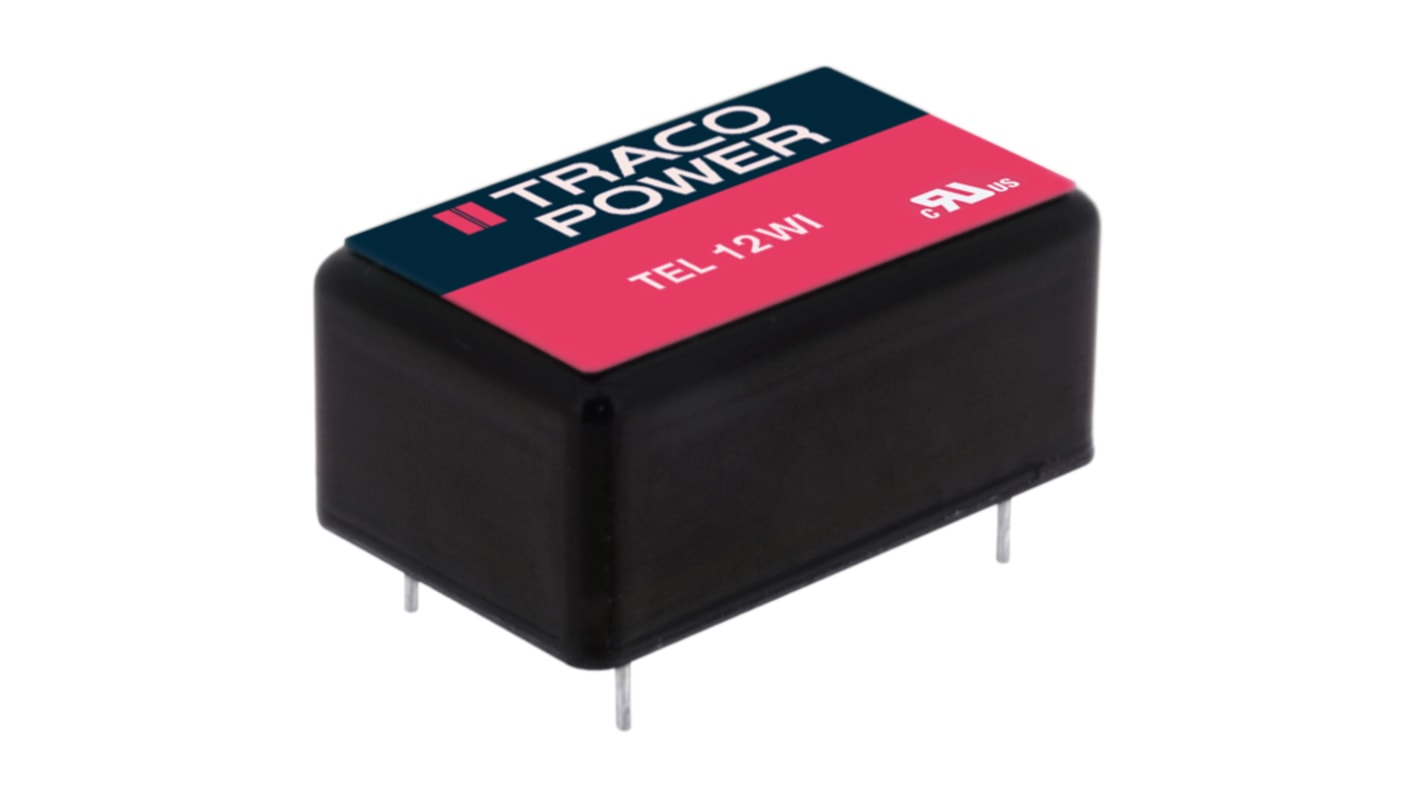

TRACOPOWER TEL 12WI DC-DC Converter, ±15V dc/, 18 → 75 V dc Input, 12W, Through Hole
- RS Stock No.:
- 230-4703
- Mfr. Part No.:
- TEL 12-4823WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£270.42
(exc. VAT)
£324.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £270.42 | £27.042 |
| 5 - 9 | £262.31 | £26.231 |
| 10 - 24 | £254.20 | £25.42 |
| 25 - 49 | £243.38 | £24.338 |
| 50 + | £232.56 | £23.256 |
*price indicative
- RS Stock No.:
- 230-4703
- Mfr. Part No.:
- TEL 12-4823WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 12W | |
| Input Voltage Nominal | 48 Vdc | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Isolation Voltage | 1.5kV dc | |
| Series | TEL 12WI | |
| Railway Approved | No | |
| Medical Approved | No | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 12W | ||
Input Voltage Nominal 48 Vdc | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Isolation Voltage 1.5kV dc | ||
Series TEL 12WI | ||
Railway Approved No | ||
Medical Approved No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
The TRACOPOWER 12 Watt DC/DC converter comes in an ultra compact DIP-16 metal package. It has also an internal input filter to comply with conducted emission standard EN 55032 class A.
Highest power density
Wide 4:1 input voltage range
High efficiency (up to 88%) for low thermal loss
Operating temperature range -40°C to +88°C
Wide 4:1 input voltage range
High efficiency (up to 88%) for low thermal loss
Operating temperature range -40°C to +88°C
