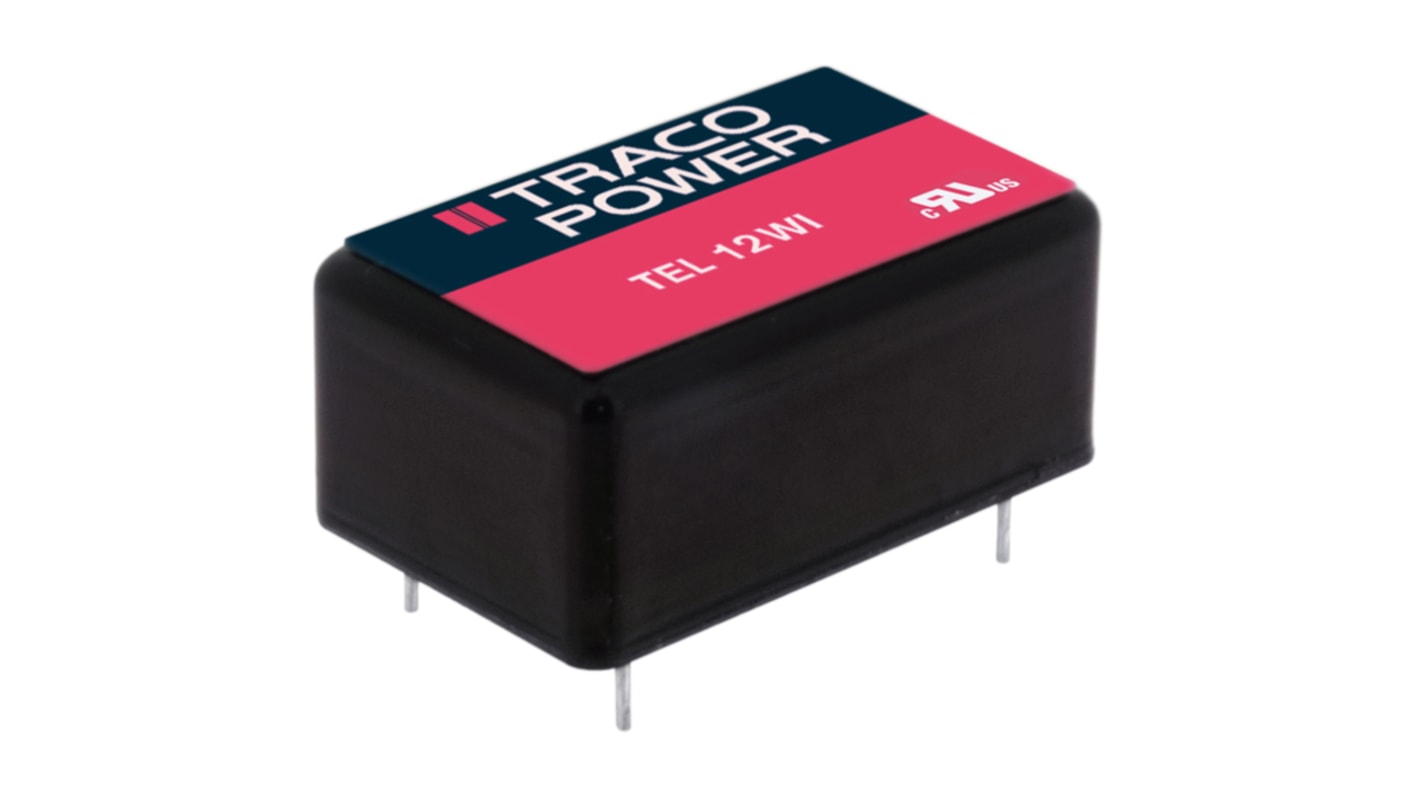

TRACOPOWER TEL 12WI DC-DC Converter, 12V dc/ 1A Output, 9 → 36 V dc Input, 12W, Through Hole, +88°C Max Temp
- RS Stock No.:
- 230-4682
- Mfr. Part No.:
- TEL 12-2412WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£257.35
(exc. VAT)
£308.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £257.35 | £25.735 |
5 - 9 | £249.63 | £24.963 |
10 - 24 | £241.91 | £24.191 |
25 - 49 | £231.61 | £23.161 |
50 + | £221.32 | £22.132 |
*price indicative
- RS Stock No.:
- 230-4682
- Mfr. Part No.:
- TEL 12-2412WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 12V dc | |
Input Voltage Range | 9 → 36 V dc | |
Power Rating | 12W | |
Input Voltage Nominal | 24 Vdc | |
Output Current | 1A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | DIP 16 | |
Isolation Voltage | 1.5kV dc | |
Width | 13.7mm | |
Depth | 10.2mm | |
Length | 23.8mm | |
Railway Approved | No | |
Series | TEL 12WI | |
Load Regulation | 1% | |
Maximum Temperature | +88°C | |
Medical Approved | No | |
Minimum Temperature | -40°C | |
Efficiency | 87% | |
Standards Met | IEC/EN 62368-1 | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 12W | ||
Input Voltage Nominal 24 Vdc | ||
Output Current 1A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 16 | ||
Isolation Voltage 1.5kV dc | ||
Width 13.7mm | ||
Depth 10.2mm | ||
Length 23.8mm | ||
Railway Approved No | ||
Series TEL 12WI | ||
Load Regulation 1% | ||
Maximum Temperature +88°C | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
Efficiency 87% | ||
Standards Met IEC/EN 62368-1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TEL 12WI Series DC-DC Converter, 87% Efficiency, 1.5kV DC Isolation Voltage - TEL 12-2412WI
This device provides a highly efficient method for converting input DC voltages from 9V to 36V into a stable output of 12V. The isolated DC-DC converter is designed for various applications across automation and electrical sectors, ensuring dependable performance in compact configurations.
Features & Benefits
• Compact DIP-16 package optimises space utilisation
• High efficiency of up to 88% minimises thermal loss
• Wide input voltage range accommodates diverse applications
• Built-in short circuit protection enhances safety
• Isolated design ensures dependable operation under high voltages
• PCB mounting style simplifies installation
• High efficiency of up to 88% minimises thermal loss
• Wide input voltage range accommodates diverse applications
• Built-in short circuit protection enhances safety
• Isolated design ensures dependable operation under high voltages
• PCB mounting style simplifies installation
Applications
• Utilised in industrial instrumentation for stable voltage supply
• Suitable for power-sensitive in automation systems
• Ideal for IT electronics needing compact power solutions
• Employed in systems where space conservation is essential
• Suitable for power-sensitive in automation systems
• Ideal for IT electronics needing compact power solutions
• Employed in systems where space conservation is essential
How does the efficiency of the device affect performance?
The high efficiency minimises energy loss, enhancing performance while reducing heat generation, which is vital for maintaining system reliability.
What measures should be taken for optimal installation?
Ensure proper PCB mounting and adhere to the specified input voltage range to optimise performance and prevent damage.
Can this converter be used in environments with extreme temperatures?
Yes, it operates within a temperature range of -40°C to +85°C, making it suitable for harsh conditions and various applications.
Is additional wiring required for the internal input filter?
No, the internal Pi-type filter is built into the device, ensuring compliance with standard conducted emission requirements without the need for external components.
What should be considered for voltage balancing in dual output models?
When employing dual output configurations, maintain symmetrical loads to achieve optimal voltage balance across both outputs.
