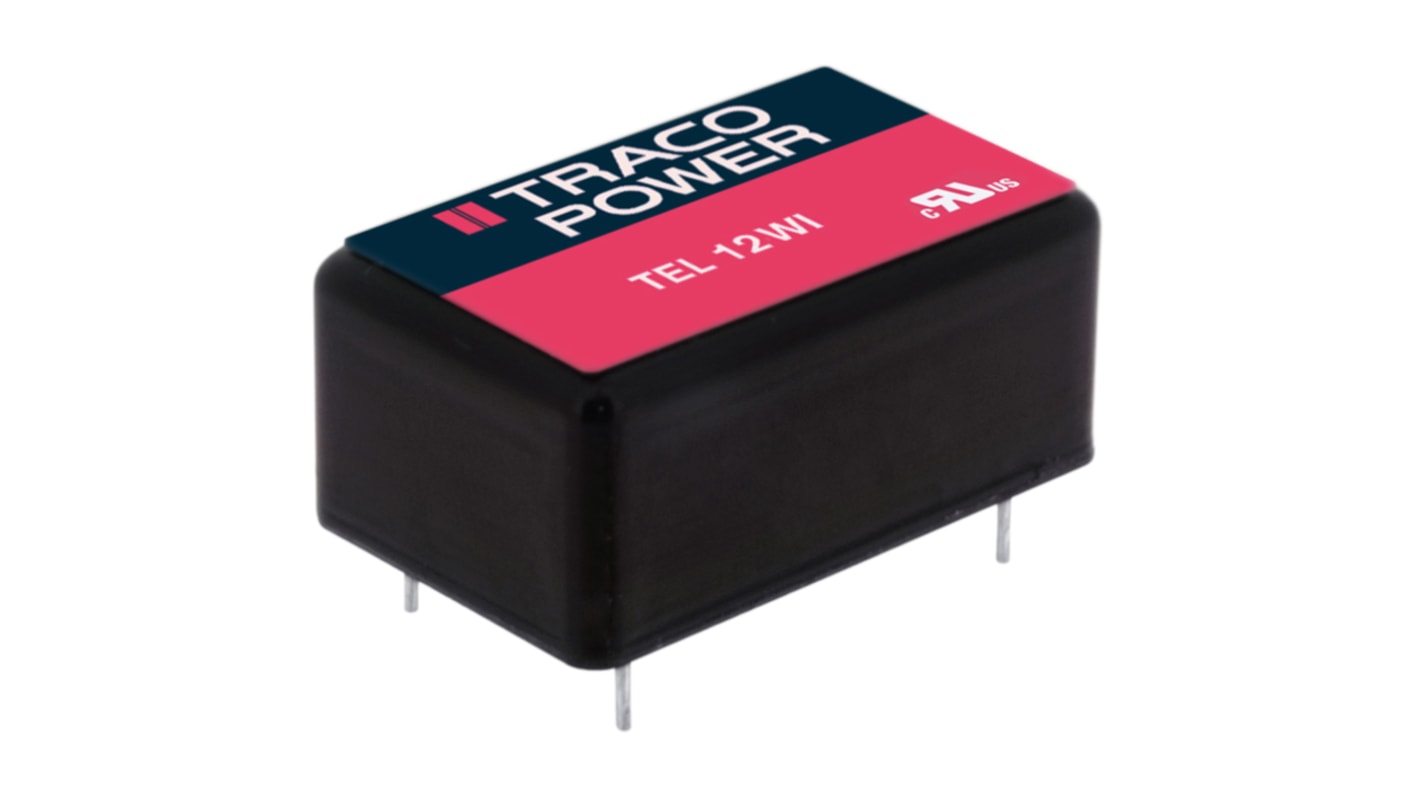

TRACOPOWER TEL 12WI DC/DC Converter, 12V dc/ 500 mA, 36V dc Input, 18V Input 12 W, PCB, 88 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 230-4689
- Distrelec Article No.:
- 304-31-686
- Mfr. Part No.:
- TEL 12-2422WI
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (10 units, in tubes of 10)*
£273.22
(exc. VAT)
£327.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £273.22 | £27.322 |
| 5 - 9 | £265.02 | £26.502 |
| 10 - 24 | £256.82 | £25.682 |
| 25 - 49 | £245.89 | £24.589 |
| 50 + | £234.96 | £23.496 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 230-4689
- Distrelec Article No.:
- 304-31-686
- Mfr. Part No.:
- TEL 12-2422WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 18V | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 500mA | |
| Output Current 2 | 500mA | |
| Output Voltage 2 | -12V dc | |
| Mount Type | PCB | |
| Input Ratio | 2:1 | |
| MTBF | 2540000h | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | 18/36 V | |
| Number of Pins | 5 | |
| Isolation Voltage | 1.5kV dc | |
| Package Type | DIP | |
| Maximum Output Power | 12W | |
| Width | 13.7mm | |
| Series | TEL 12WI | |
| Standards/Approvals | No | |
| Depth | 10.2mm | |
| Length | 23.8mm | |
| Better World Claim | Concentrated or Compact Solution | |
| Better World Product | Yes | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 87% | |
| Maximum Operating Temperature | 88°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 18V | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 500mA | ||
Output Current 2 500mA | ||
Output Voltage 2 -12V dc | ||
Mount Type PCB | ||
Input Ratio 2:1 | ||
MTBF 2540000h | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range 18/36 V | ||
Number of Pins 5 | ||
Isolation Voltage 1.5kV dc | ||
Package Type DIP | ||
Maximum Output Power 12W | ||
Width 13.7mm | ||
Series TEL 12WI | ||
Standards/Approvals No | ||
Depth 10.2mm | ||
Length 23.8mm | ||
Better World Claim Concentrated or Compact Solution | ||
Better World Product Yes | ||
Minimum Operating Temperature -40°C | ||
Efficiency 87% | ||
Maximum Operating Temperature 88°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TEL 12WI Series DC-DC Converter, 87% Efficiency, 1.5kV DC Isolation Voltage - TEL 12-2422WI
This compact DC-DC converter delivers steady voltage regulation for various electronic applications. Designed with a wide input voltage range, it is essential for power solutions where space is at a premium. This model offers dual output voltages of ±12V DC, catering to multiple circuit requirements, ensuring smooth operation in challenging environments.
Features & Benefits
• Utilises a 4:1 input voltage range for flexible integration
• High efficiency up to 88% reduces thermal losses
• Compact DIP-16 metal package optimises space utilisation
• Built-in short circuit protection enhances safety
• Supports a broad operating temperature range for versatility
• Isolated design adds safety in electrical applications
Applications
• Used in instrumentation for precise voltage regulation
• Ideal for automation systems requiring dependable power delivery
• Suitable for electronics in harsh industrial conditions
• Applied in telecommunications for equipment stability
• Utilised in various electrical systems needing compact solutions
What is the operational temperature range for this converter?
It operates between -40°C and +85°C, suitable for extreme conditions.
Can it handle voltage fluctuations within its specified range?
Yes, it supports a wide input voltage range from 9V to 36V DC.
What type of mounting is required for installation?
It is designed for through-hole mounting on a PCB.
Is additional external filtering needed for compliance?
Typically, it meets standards with its internal filter, but this may vary by application.
How is the performance affected in high temperature conditions?
Power derating occurs above 50°C to ensure consistent operation.
