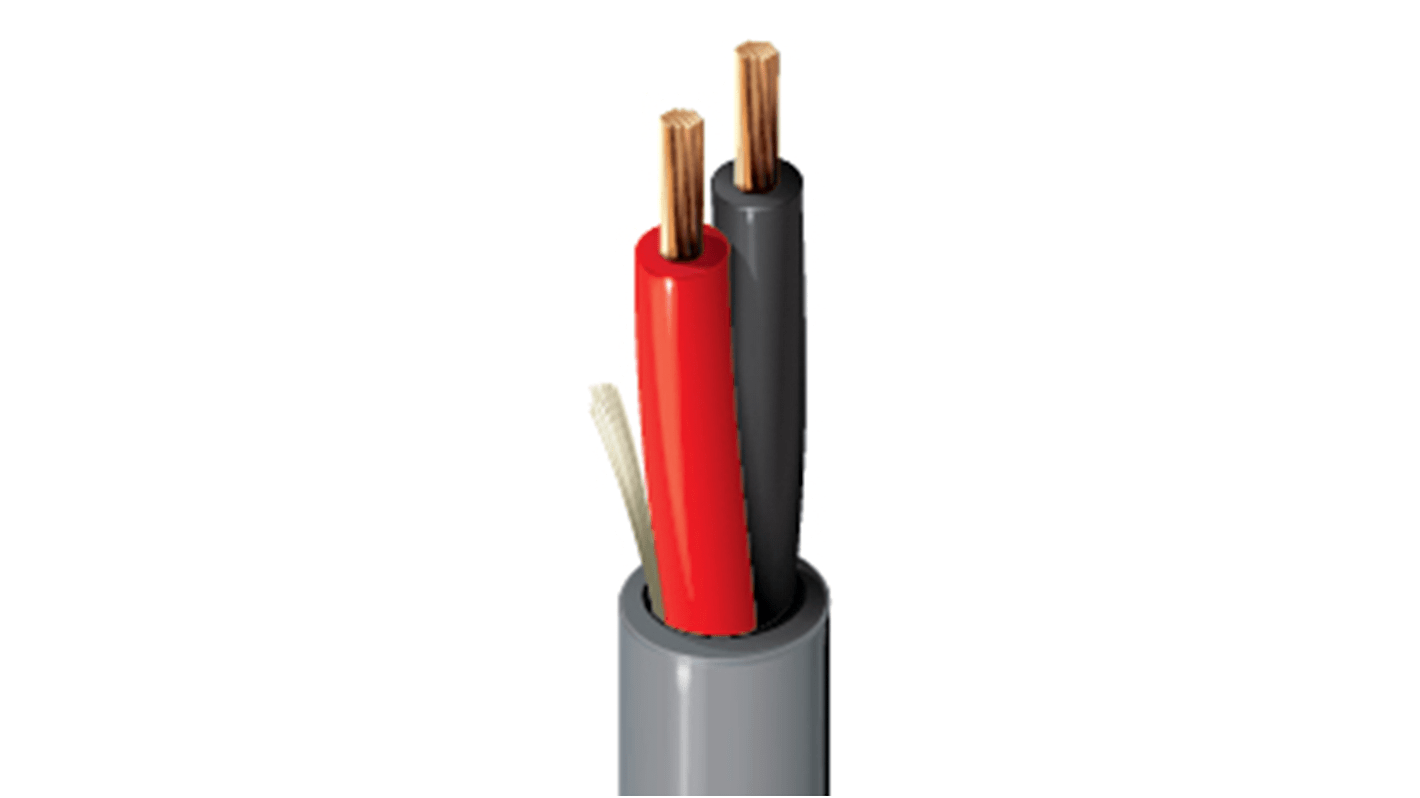

Belden 4100UE Control Cable, 2 Cores, 2.09 mm², Unscreened, 100m, Grey LSZH Sheath, 14 AWG
- RS Stock No.:
- 510-2167
- Mfr. Part No.:
- 4100UE.00100
- Brand:
- Belden
Subtotal (1 reel of 100 metres)*
£209.99
(exc. VAT)
£251.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 4 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £209.99 | £2.10 |
*price indicative
- RS Stock No.:
- 510-2167
- Mfr. Part No.:
- 4100UE.00100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 4100UE | |
| Number of Cores | 2 | |
| Cross Sectional Area | 2.09 mm² | |
| American Wire Gauge | 14 AWG | |
| Conductor Material | Copper | |
| Sheath Material | LSZH | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Length | 100m | |
| Outer Diameter | 5.55mm | |
| Minimum Bend Radius | 55.5 mm | |
| Voltage Rating | 300 V | |
| Current Rating | 8 A | |
| Standards Met | Euroclass Eca | |
| CPR Certification | Eca | |
| Fire Behaviour | Fire Resistant | |
| Maximum Operating Temperature | +70°C | |
| Cable Shape | Multicore | |
| Insulation Material | PP | |
| Core Strands | 19/27 AWG | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 4100UE | ||
Number of Cores 2 | ||
Cross Sectional Area 2.09 mm² | ||
American Wire Gauge 14 AWG | ||
Conductor Material Copper | ||
Sheath Material LSZH | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 100m | ||
Outer Diameter 5.55mm | ||
Minimum Bend Radius 55.5 mm | ||
Voltage Rating 300 V | ||
Current Rating 8 A | ||
Standards Met Euroclass Eca | ||
CPR Certification Eca | ||
Fire Behaviour Fire Resistant | ||
Maximum Operating Temperature +70°C | ||
Cable Shape Multicore | ||
Insulation Material PP | ||
Core Strands 19/27 AWG | ||
Minimum Operating Temperature -20°C | ||
Belden Control Cable, 300V Voltage Rating, 8A Current Rating - 4100UE.00100
Keep the volume high and interference low with this control cable from Belden. It’s 100 metres in length with a 14AWG two-core design, so it easily connects speaker systems across large setups. A duo of bare copper strands gives conductivity a boost to ensure reliable transmissions, so you can rest assured that your equipment receives a steady signal. A minimum bend radius during installation of 55.5mm means it’s flexible enough to provide top-notch electrical performance even in complex setups.
Features & Benefits
• Low-smoke zero halogen sheath reduces smoke density in case of fire, for workplace safety
• Performs reliably in commercial and industrial conditions between -20°C and +70°C
• PP insulation adds strength and protects wires from outside interference
• Performs reliably in commercial and industrial conditions between -20°C and +70°C
• PP insulation adds strength and protects wires from outside interference
Applications
• Intercom and PA systems
• Recording studios
• Control systems
• Recording studios
• Control systems
What size is this control cable?
The outer diameter is just 5.55mm, making this a slim choice that fits neatly into compact electrical installations.
