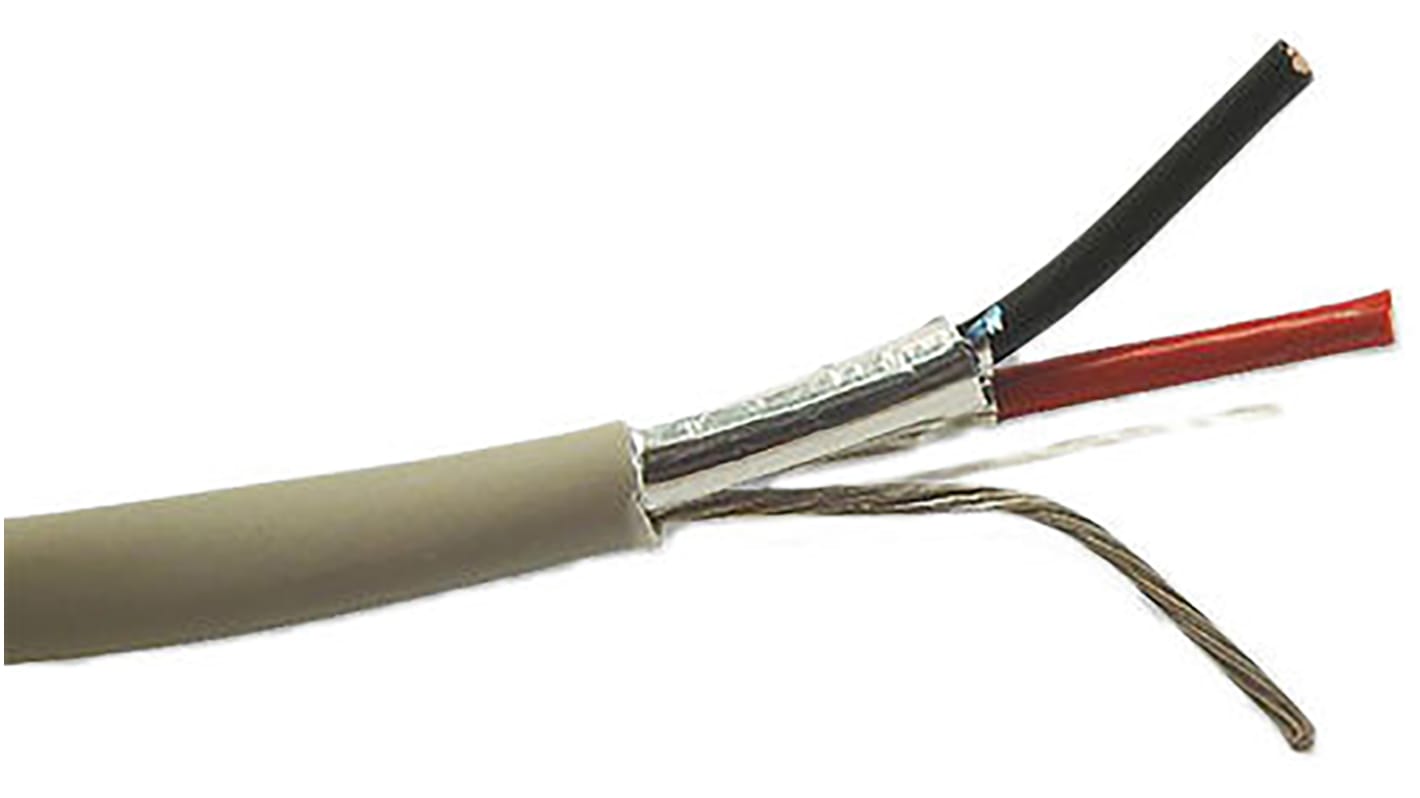

Belden 4500FE Control Cable, 2 Cores, 0.33 mm², Screened, 100m, Grey Flame Retardant Non-Corrosive (FRNC) Sheath, 22 AWG

View all Control Cable

Subtotal (1 reel of 100 metres)*

£109.91

(exc. VAT)

£131.89

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£109.91£1.099

*price indicative

RS Stock No.:
510-2274
Distrelec Article No.:
304-22-467
Mfr. Part No.:
4500FE.00100
Brand:
Belden
Find similar products by selecting one or more attributes.
Select all

Brand

Belden

Series

4500FE

Number of Cores

2

Cross Sectional Area

0.33 mm²

American Wire Gauge

22 AWG

Conductor Material

Copper

Sheath Material

Flame Retardant Non-Corrosive (FRNC)

Sheath Colour

Grey

Screen Type

Aluminium/PET Foil

Screened/Unscreened

Screened

Length

100m

Minimum Bend Radius

32 mm

Outer Diameter

3.3mm

Voltage Rating

300 V

Current Rating

2.8 A

Standards Met

Euroclass Eca

CPR Certification

Eca

Maximum Operating Temperature

+70°C

Insulation Material

PP

Minimum Operating Temperature

-20°C

Core Strands

7/30 AWG

Drain Wire

Yes

Conductor Resistance

54 Ω/km

Cable Shape

Multicore

COO (Country of Origin):
NL

Belden Screened Grey Control Cable, 0.33mm² CSA, 100m Length - 4500FE.00100


Turn to this control cable from Belden when you need to send data and transmissions between your electronic equipment and control panels. It features an aluminium foil screen to reduce EMI (electromagnetic interference), meaning signals travelling through the cable won't affect or be impaired by nearby equipment and wiring. The cable produces minimal smoke in the case of fire thanks to its FRNC (flame retardant non-corrosive) sheath material, making it a safe choice for commercial and residential use.

Features & Benefits


• Bare copper strands provide high conductivity
• Durable and abrasion-resistant PVC sheath for a long service life
• 100m length can be cut to suit your application's needs
• Cross-sectional area (CSA) of 0.33 mm² for flexibility and use in tight spaces
• Wide operating temperature range between -20°C and +70°C for use in challenging settings

Applications


• Industrial automation
• Security equipment
• Office infrastructure
• Broadcasting

What does a drain wire do in a control cable?


The drain wire in a control cable works alongside the metallic shield to provide effective grounding and draw electrical noise away from the circuit. This allows for error-free and direct signal transmission.
