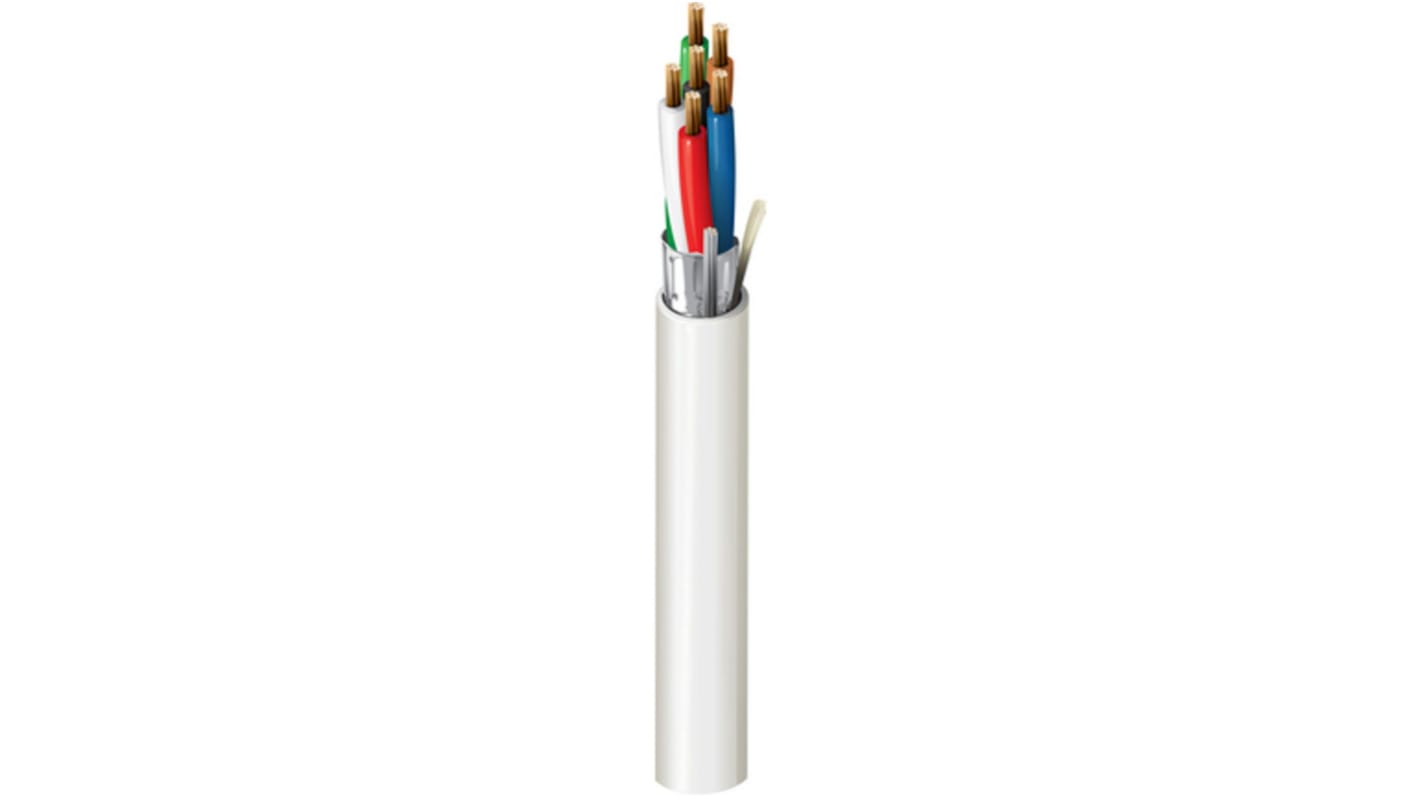

Belden 5504FE Control Cable, 6 Cores, 0.33 mm², Screened, 152m, Grey PVC Sheath, 22 AWG
- RS Stock No.:
- 510-2577
- Mfr. Part No.:
- 5504FE 008U500
- Brand:
- Belden
Subtotal (1 reel of 152 metres)*
£260.17
(exc. VAT)
£312.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 3 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £260.17 | £1.712 |
*price indicative
- RS Stock No.:
- 510-2577
- Mfr. Part No.:
- 5504FE 008U500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 5504FE | |
| Number of Cores | 6 | |
| Cross Sectional Area | 0.33 mm² | |
| American Wire Gauge | 22 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screen Type | Aluminium/PET Foil | |
| Screened/Unscreened | Screened | |
| Minimum Bend Radius | 43 mm | |
| Outer Diameter | 4.17mm | |
| Length | 152m | |
| Voltage Rating | 300 V | |
| Current Rating | 2 A | |
| CPR Certification | Eca | |
| Standards Met | Euroclass Eca | |
| Maximum Operating Temperature | +75°C | |
| Cable Shape | Multicore | |
| Drain Wire | Yes | |
| Core Strands | 7/30 AWG | |
| Insulation Material | PP | |
| Minimum Operating Temperature | -20°C | |
| Conductor Resistance | 53.805776 Ω/km | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 5504FE | ||
Number of Cores 6 | ||
Cross Sectional Area 0.33 mm² | ||
American Wire Gauge 22 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Aluminium/PET Foil | ||
Screened/Unscreened Screened | ||
Minimum Bend Radius 43 mm | ||
Outer Diameter 4.17mm | ||
Length 152m | ||
Voltage Rating 300 V | ||
Current Rating 2 A | ||
CPR Certification Eca | ||
Standards Met Euroclass Eca | ||
Maximum Operating Temperature +75°C | ||
Cable Shape Multicore | ||
Drain Wire Yes | ||
Core Strands 7/30 AWG | ||
Insulation Material PP | ||
Minimum Operating Temperature -20°C | ||
Conductor Resistance 53.805776 Ω/km | ||
- COO (Country of Origin):
- US
Belden Control Cable, 2A Current Rating, 300V Voltage Rating - 5504FE 008U500
Use this control cable from Belden to connect sensors and actuators to your industrial equipment. It has six cores, which means it can transmit six signals at once, minimising your wiring needs and cutting down clutter. Thanks to a broad operating temperature range between -20°C and +75°C, you can rely on the cable to perform in challenging conditions. It has an outer sheath made of durable PVC that provides resistance to impact and abrasion for long-term use.
Features & Benefits
• Flame retardant properties prevent the spread of flames during a fire
• Beldfoil screening reduces electromagnetic interference for steady data transmission
• Integrated drain wire for safe handling
• Copper conductors provide a reliable connection
• Beldfoil screening reduces electromagnetic interference for steady data transmission
• Integrated drain wire for safe handling
• Copper conductors provide a reliable connection
Applications
• Alarm systems
• Robotics and automation setups
• Hospitality industry
• Robotics and automation setups
• Hospitality industry
What's the voltage rating of this cable?
This cable has a voltage rating of 300V, so it's a practical choice for low-voltage applications.
