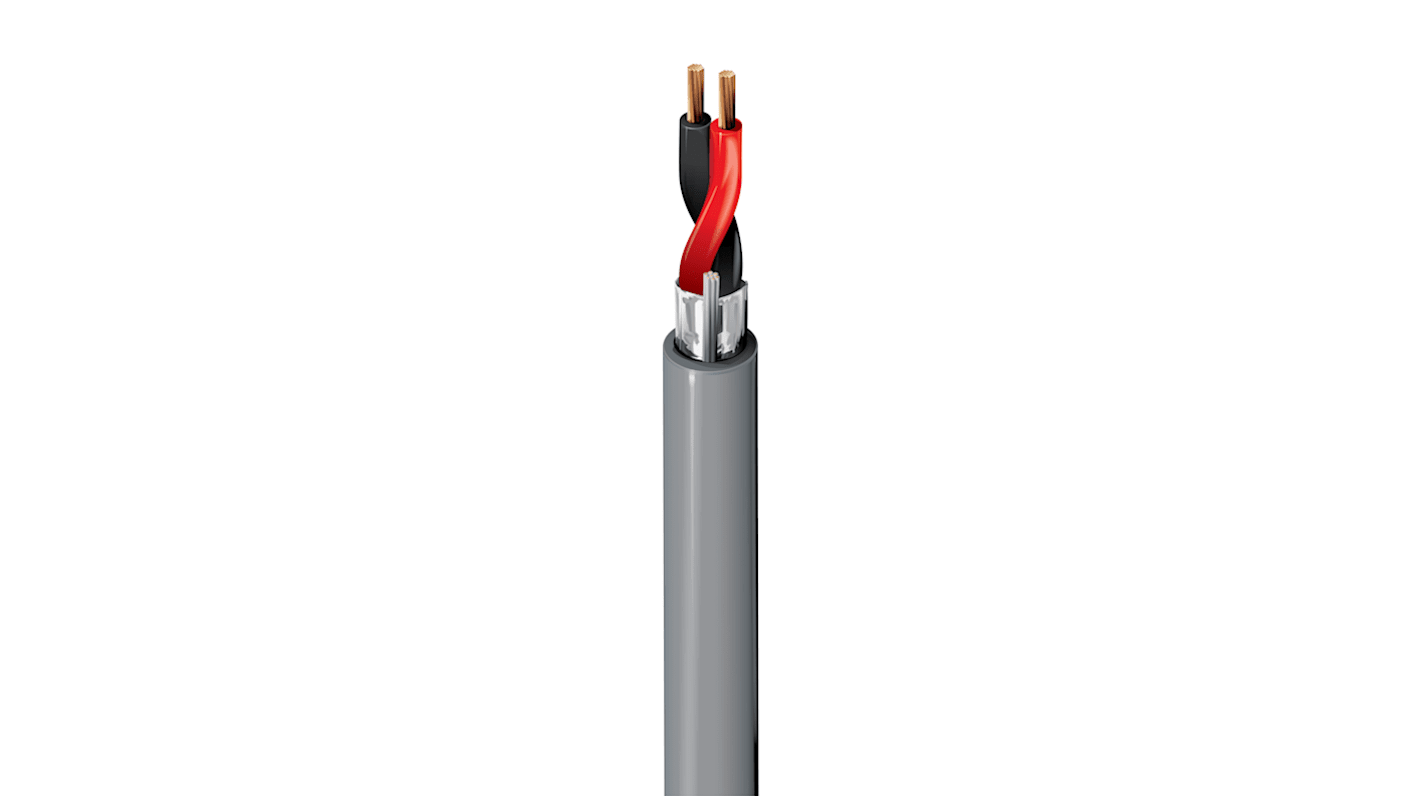

Belden 5200FE Control Cable, 2 Cores, 1.31 mm², Screened, 152m, Grey PVC Sheath, 16 AWG
- RS Stock No.:
- 510-2432
- Mfr. Part No.:
- 5200FE.00152
- Brand:
- Belden
Subtotal (1 reel of 152 metres)*
£274.47
(exc. VAT)
£329.36
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £274.47 | £1.806 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£196.28
(exc. VAT)
£235.54
(inc. VAT)
- RS Stock No.:
- 510-2432
- Mfr. Part No.:
- 5200FE.00152
- Brand:
- Belden
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 5200FE | |
| Number of Cores | 2 | |
| Cross Sectional Area | 1.31 mm² | |
| American Wire Gauge | 16 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Armoured | No | |
| Screened/Unscreened | Screened | |
| Screen Type | Aluminium/PET Foil | |
| Outer Diameter | 4.57mm | |
| Length | 152m | |
| Minimum Bend Radius | 50.8 mm | |
| Voltage Rating | 300 V | |
| Current Rating | 6.25 A | |
| Standards Met | Euroclass Eca | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +75°C | |
| Drain Wire | Yes | |
| Cable Shape | Multicore | |
| Conductor Resistance | 13.12336 Ω/km | |
| Minimum Operating Temperature | -20°C | |
| Insulation Material | PP | |
| Earth Cable | No | |
| Core Strands | 19/29 AWG | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 5200FE | ||
Number of Cores 2 | ||
Cross Sectional Area 1.31 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Screen Type Aluminium/PET Foil | ||
Outer Diameter 4.57mm | ||
Length 152m | ||
Minimum Bend Radius 50.8 mm | ||
Voltage Rating 300 V | ||
Current Rating 6.25 A | ||
Standards Met Euroclass Eca | ||
CPR Certification Eca | ||
Maximum Operating Temperature +75°C | ||
Drain Wire Yes | ||
Cable Shape Multicore | ||
Conductor Resistance 13.12336 Ω/km | ||
Minimum Operating Temperature -20°C | ||
Insulation Material PP | ||
Earth Cable No | ||
Core Strands 19/29 AWG | ||
