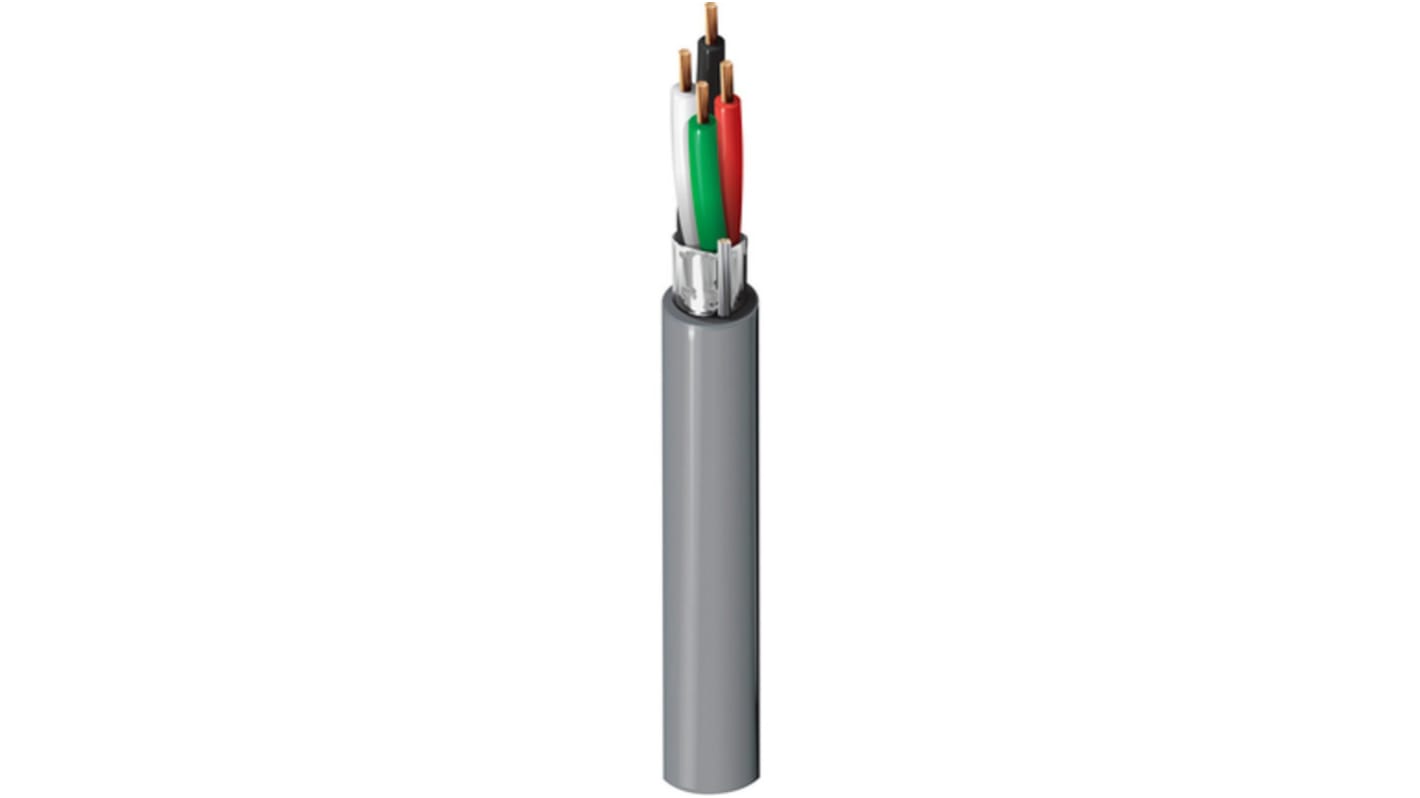

Belden 5502FE Control Cable, 4 Cores, 0.33 mm², Screened, 152m, Grey PVC Sheath, 22 AWG
- RS Stock No.:
- 510-2555
- Mfr. Part No.:
- 5502FE.00152
- Brand:
- Belden
Subtotal (1 reel of 152 metres)*
£176.18
(exc. VAT)
£211.42
(inc. VAT)
FREE delivery for orders over £50.00
- 36 unit(s) ready to ship
- Plus 1 unit(s) shipping from 07 August 2025
- Plus 6 unit(s) shipping from 16 October 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £176.18 | £1.159 |
*price indicative
- RS Stock No.:
- 510-2555
- Mfr. Part No.:
- 5502FE.00152
- Brand:
- Belden
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | 5502FE | |
Number of Cores | 4 | |
Cross Sectional Area | 0.33 mm² | |
American Wire Gauge | 22 AWG | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Screen Type | Aluminium/PET Foil | |
Screened/Unscreened | Screened | |
Outer Diameter | 3.53mm | |
Length | 152m | |
Minimum Bend Radius | 38 mm | |
Voltage Rating | 300 V | |
Current Rating | 2.2 A | |
CPR Certification | Eca | |
Standards Met | Euroclass Eca | |
Maximum Operating Temperature | +75°C | |
Insulation Material | PP | |
Conductor Resistance | 53.805776 Ω/km | |
Core Strands | 7/30 AWG | |
Cable Shape | Multicore | |
Minimum Operating Temperature | -20°C | |
Drain Wire | Yes | |
Select all | ||
---|---|---|
Brand Belden | ||
Series 5502FE | ||
Number of Cores 4 | ||
Cross Sectional Area 0.33 mm² | ||
American Wire Gauge 22 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Aluminium/PET Foil | ||
Screened/Unscreened Screened | ||
Outer Diameter 3.53mm | ||
Length 152m | ||
Minimum Bend Radius 38 mm | ||
Voltage Rating 300 V | ||
Current Rating 2.2 A | ||
CPR Certification Eca | ||
Standards Met Euroclass Eca | ||
Maximum Operating Temperature +75°C | ||
Insulation Material PP | ||
Conductor Resistance 53.805776 Ω/km | ||
Core Strands 7/30 AWG | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -20°C | ||
Drain Wire Yes | ||
