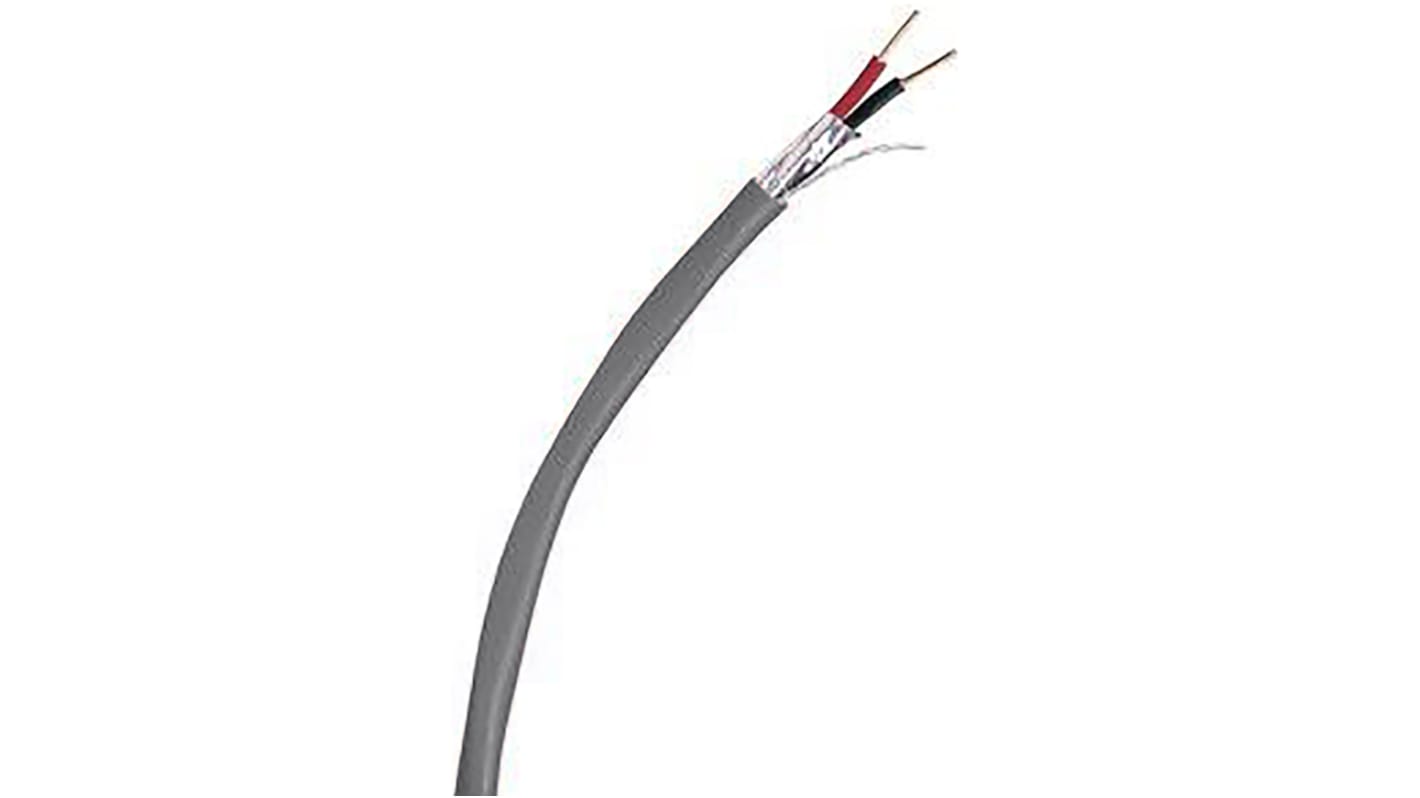

Belden 5100FE Control Cable, 2 Cores, 2.09 mm², Screened, 152m, Grey PVC Sheath, 14 AWG
- RS Stock No.:
- 510-2410
- Mfr. Part No.:
- 5100FE.00152
- Brand:
- Belden
Subtotal (1 reel of 152 metres)*
£405.70
(exc. VAT)
£486.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 3 unit(s) shipping from 24 October 2025
- Plus 2 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £405.70 | £2.669 |
*price indicative
- RS Stock No.:
- 510-2410
- Mfr. Part No.:
- 5100FE.00152
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 5100FE | |
| Number of Cores | 2 | |
| Cross Sectional Area | 2.09 mm² | |
| American Wire Gauge | 14 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screen Type | Aluminium/PET Foil | |
| Screened/Unscreened | Screened | |
| Length | 152m | |
| Outer Diameter | 5.64mm | |
| Voltage Rating | 300 V | |
| Current Rating | 8 A | |
| Standards Met | Euroclass Eca | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +75°C | |
| Core Strands | 19/27 AWG | |
| Drain Wire | Yes | |
| Minimum Operating Temperature | -20°C | |
| Conductor Resistance | 8.3333336 Ω/km | |
| Cable Shape | Multicore | |
| Insulation Material | PP | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 5100FE | ||
Number of Cores 2 | ||
Cross Sectional Area 2.09 mm² | ||
American Wire Gauge 14 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Aluminium/PET Foil | ||
Screened/Unscreened Screened | ||
Length 152m | ||
Outer Diameter 5.64mm | ||
Voltage Rating 300 V | ||
Current Rating 8 A | ||
Standards Met Euroclass Eca | ||
CPR Certification Eca | ||
Maximum Operating Temperature +75°C | ||
Core Strands 19/27 AWG | ||
Drain Wire Yes | ||
Minimum Operating Temperature -20°C | ||
Conductor Resistance 8.3333336 Ω/km | ||
Cable Shape Multicore | ||
Insulation Material PP | ||
- COO (Country of Origin):
- MX
Belden Control Cable, 8A Current Rating, 5.64mm OD - 5100FE.00152
Link your security system up in a jiffy with this control cable from Belden. Its copper wires are highly conductive, so you can be sure of strong and reliable audio transmission. Aluminium foil screening resists electrical interference to keep signals clean, even in noisy environments. Thanks to its narrow 5.64mm outer diameter, this cable fits through tight spaces with ease. Colour-coded cores make wiring a breeze.
Features & Benefits
• Hard-wearing PVC jacket resists abrasion in heavy-duty applications
• Cable sheath includes a ripcord for hassle-free stripping
• Comes on a reel of 152m, for long runs or to cut to the exact length you need
• Cable sheath includes a ripcord for hassle-free stripping
• Comes on a reel of 152m, for long runs or to cut to the exact length you need
Applications
• Surveillance equipment
• Retail units
• PA networks
• Fire safety systems
• Retail units
• PA networks
• Fire safety systems
Can I use this cable in extreme temperatures?
Yes, this product has an operating temperature range between -20°C and +75°C, so it's a safe bet for use in tough conditions.
