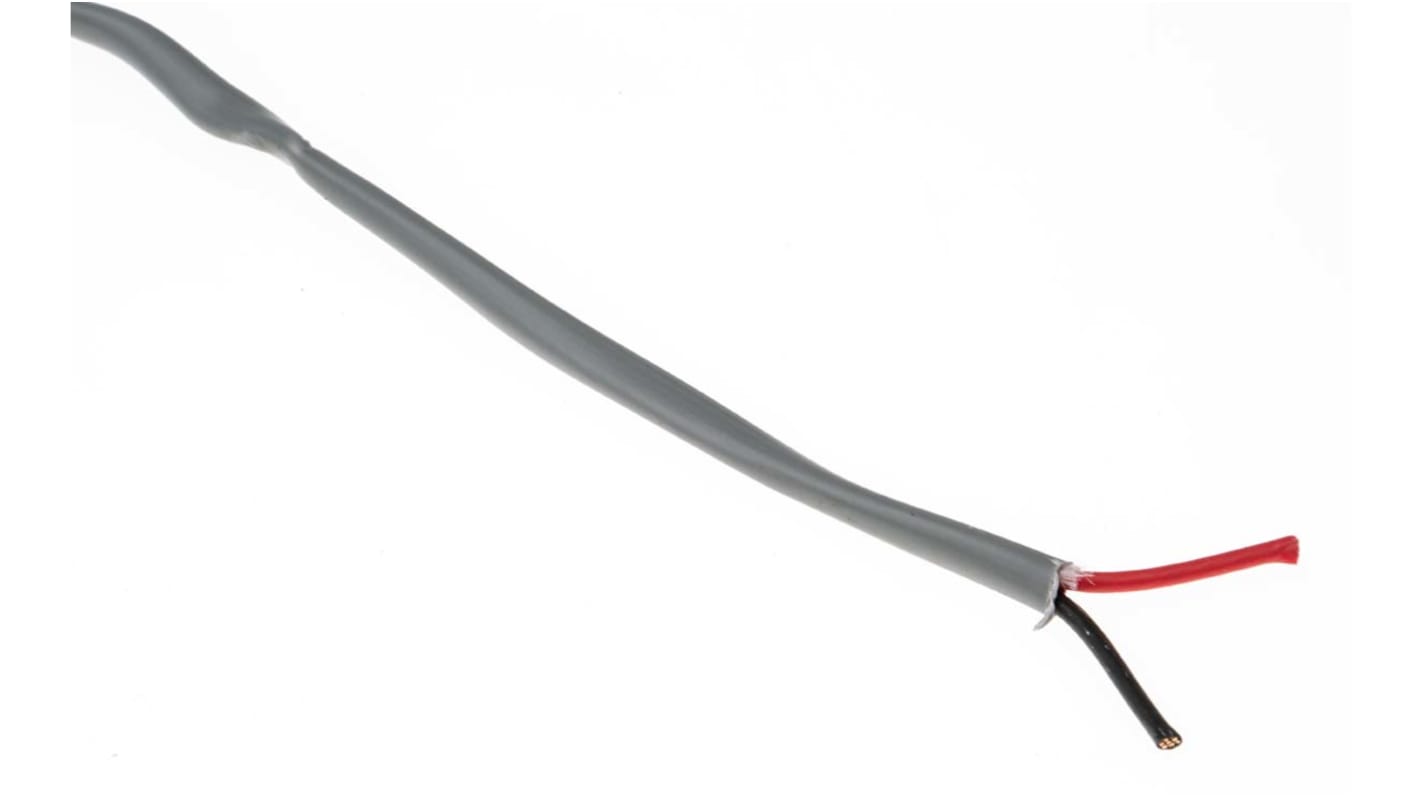

Belden 5300UE Control Cable, 2 Cores, 0.82 mm², Unscreened, 152m, Chrome PVC Sheath, 18 AWG

View all Control Cable

Subtotal (1 reel of 152 metres)*

£153.02

(exc. VAT)

£183.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
  • Plus 6 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£153.02£1.007

*price indicative

RS Stock No.:
510-2460
Mfr. Part No.:
5300UE.00152
Brand:
Belden
Find similar products by selecting one or more attributes.
Select all

Brand

Belden

Series

5300UE

Number of Cores

2

Cross Sectional Area

0.82 mm²

American Wire Gauge

18 AWG

Conductor Material

Copper

Sheath Material

PVC

Sheath Colour

Chrome

Screened/Unscreened

Unscreened

Outer Diameter

4.01mm

Length

152m

Minimum Bend Radius

41 mm

Voltage Rating

300 V

Current Rating

5 A

Standards Met

Euroclass Eca

CPR Certification

Eca

Maximum Operating Temperature

+75°C

Minimum Operating Temperature

-20°C

Insulation Material

PP

Conductor Resistance

21.32546 Ω/km

Cable Shape

Multicore

Core Strands

7/26 AWG

Belden 2-Core Audio Control Cable, 152m Length, 18AWG - 5300UE.00152


Use this 2-core cable from Belden to deliver audio signals safely and efficiently between your electrical devices. It features a multicore twisted cable design which minimises EMI (electromagnetic interference) and external signal distortion to ensure safe signal transmission. For quick transference, this cable is fitted with highly conductive copper contacts with a low resistance of 21.2Ω/km (ohm per kilometre). Thanks to the cable’s outer PVC jacket and durable PP (polypropylene) insulation, it’s protected against high temperatures and chemical exposure.

Features & Benefits


• Chrome sheath colour for easy cable identification
• Durable PVC jacket with ripcord offers flexibility for easy installation
• High voltage rating of 300V for use in high-energy systems
• Outer diameter of just 4.01mm to fit in compact spaces
• Capacitance of 70.52pF/m (picofarad per metre) allows it to store high levels of energy

Applications


• Analogue signalling
• Intercom systems
• Computer communication devices

What’s the operating temperature range of this cable?


This cable has a wide operating temperature range between -20°C and +75°C, making it suitable for use in industrial environments where demanding conditions are expected.
