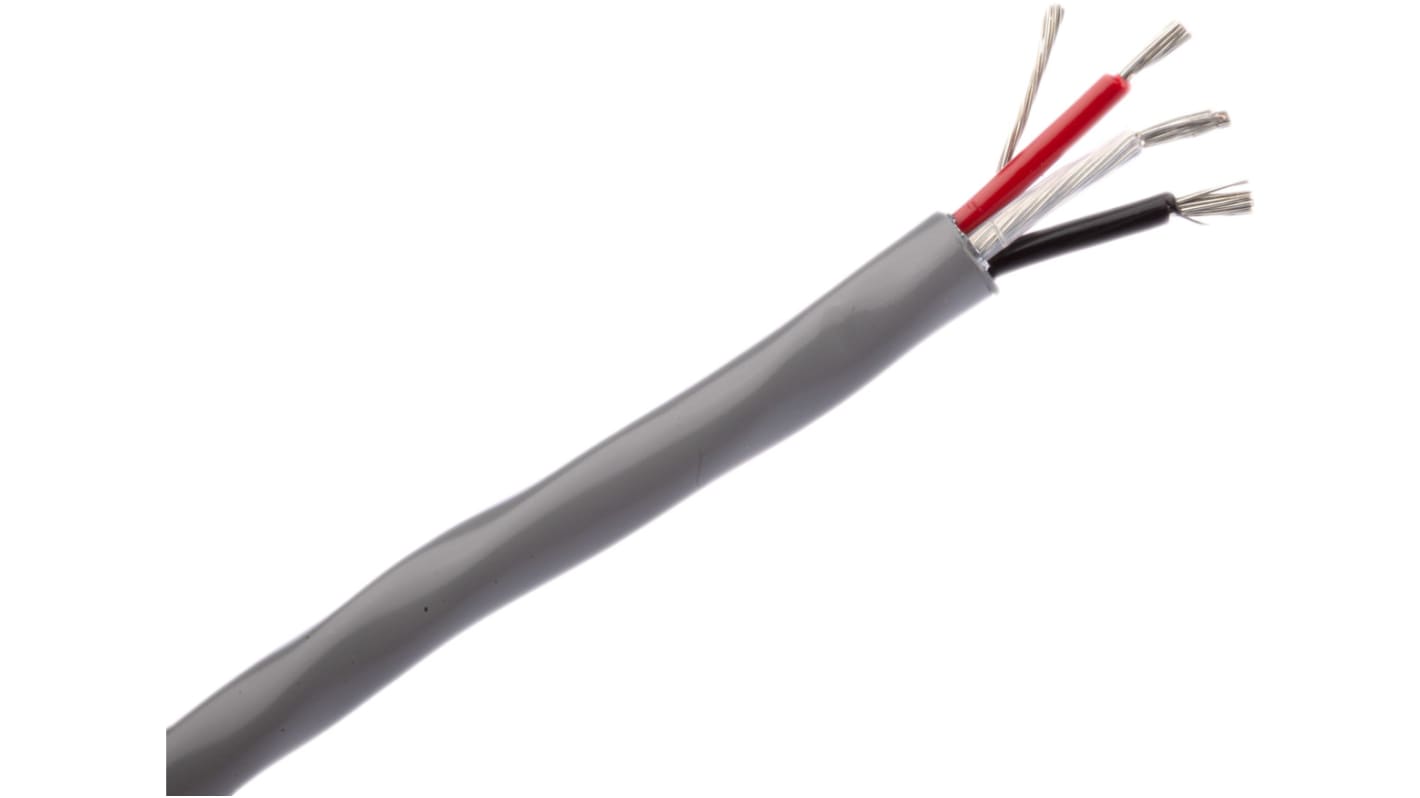

Belden 8770 Multicore Industrial Cable, 3 Cores, 0.82 mm², Screened, 152m, Chrome PVC Sheath, 18 AWG
- RS Stock No.:
- 331-9010
- Mfr. Part No.:
- 8770.00U152
- Brand:
- Belden
Subtotal (1 reel of 152 metres)*
£475.27
(exc. VAT)
£570.32
(inc. VAT)
FREE delivery for orders over £50.00
- 2 unit(s) ready to ship
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £475.27 | £3.127 |
*price indicative
- RS Stock No.:
- 331-9010
- Mfr. Part No.:
- 8770.00U152
- Brand:
- Belden
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | 8770 | |
Number of Cores | 3 | |
Cross Sectional Area | 0.82 mm² | |
American Wire Gauge | 18 AWG | |
Conductor Material | Tinned Copper | |
Sheath Material | Polyvinyl Chloride PVC | |
Sheath Colour | Chrome | |
Screened/Unscreened | Screened | |
Screen Type | Foil | |
Minimum Bend Radius | 10 x Diameter | |
Outer Diameter | 6.1mm | |
Length | 152m | |
Voltage Rating | 300 V | |
Current Rating | 5.3 A | |
Standards Met | Euroclass Eca | |
CPR Certification | Eca | |
Fire Behaviour | Flame Retardant | |
Maximum Operating Temperature | +60°C | |
Drain Wire | Yes | |
Conductor Resistance | 21.65 Ω/km | |
Core Strands | 16/0.25 mm | |
Minimum Operating Temperature | -20°C | |
Insulation Material | PE | |
Select all | ||
---|---|---|
Brand Belden | ||
Series 8770 | ||
Number of Cores 3 | ||
Cross Sectional Area 0.82 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Chrome | ||
Screened/Unscreened Screened | ||
Screen Type Foil | ||
Minimum Bend Radius 10 x Diameter | ||
Outer Diameter 6.1mm | ||
Length 152m | ||
Voltage Rating 300 V | ||
Current Rating 5.3 A | ||
Standards Met Euroclass Eca | ||
CPR Certification Eca | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +60°C | ||
Drain Wire Yes | ||
Conductor Resistance 21.65 Ω/km | ||
Core Strands 16/0.25 mm | ||
Minimum Operating Temperature -20°C | ||
Insulation Material PE | ||
- COO (Country of Origin):
- NL
Belden Screened 3-Core Industrial Cable, 0.82mm², 300V - 8770.00U152
Features & Benefits
• Tinned copper wires provide good conductivity for reliable signal transmission
• Wide operating temperature range of -20°C to +60°C for use in a variety of environments
• Length of 152m, which can be cut to suit your needs
Applications
• Wind turbines
• Robotics
• Industrial process control
Is this cable safe to use in applications where exposure to flames is likely?
