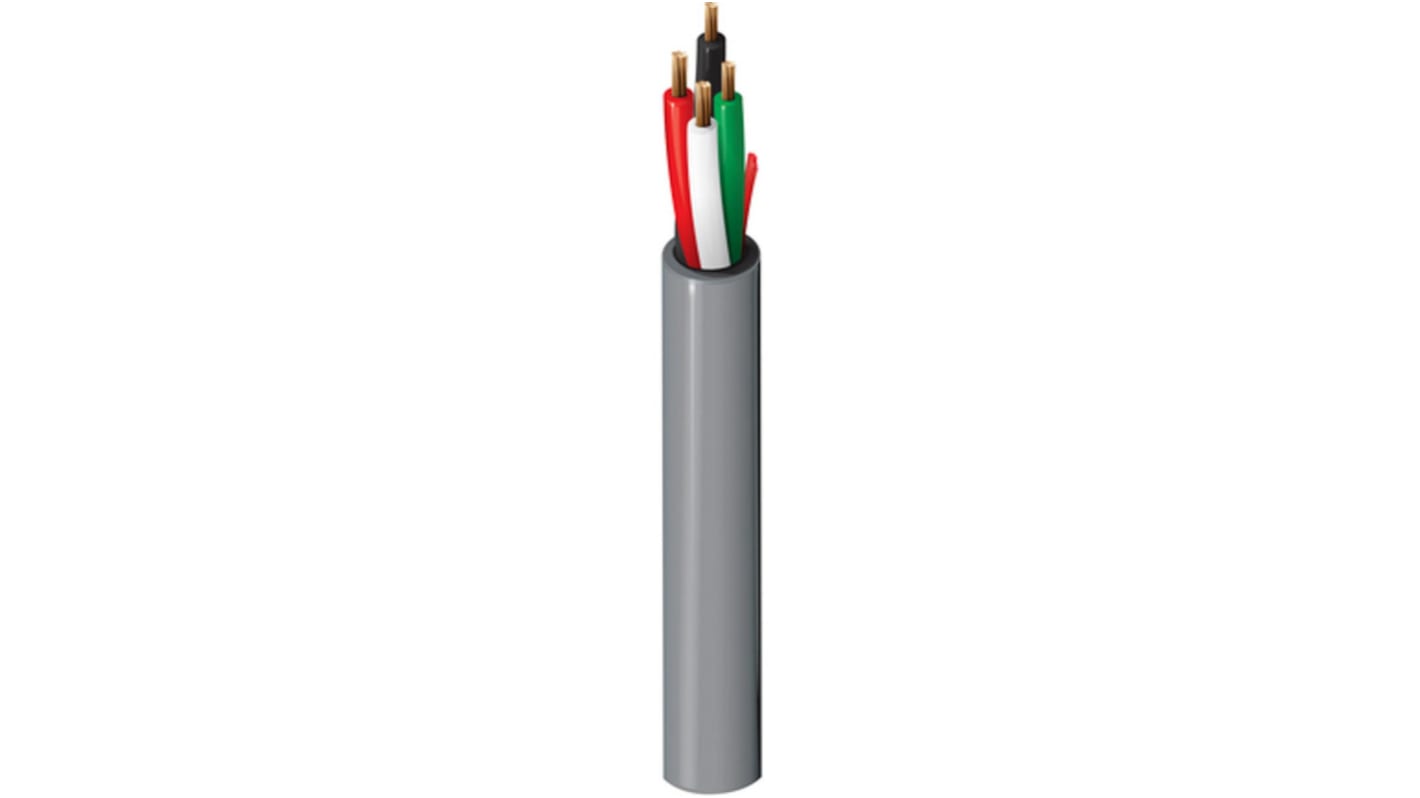

Belden 5302UE Control Cable, 4 Cores, 0.82 mm², Unscreened, 152m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 510-2505
- Mfr. Part No.:
- 5302UE 008500
- Brand:
- Belden
Subtotal (1 reel of 152 metres)*
£272.86
(exc. VAT)
£327.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 999,999,993 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £272.86 | £1.795 |
*price indicative
- RS Stock No.:
- 510-2505
- Mfr. Part No.:
- 5302UE 008500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 5302UE | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.82 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Length | 152m | |
| Outer Diameter | 4.67mm | |
| Voltage Rating | 300 V | |
| Current Rating | 4 A | |
| CPR Certification | Eca | |
| Standards Met | Euroclass Eca | |
| Maximum Operating Temperature | +75°C | |
| Minimum Operating Temperature | -20°C | |
| Cable Shape | Multicore | |
| Core Strands | 7/26 AWG | |
| Insulation Material | PP | |
| Conductor Resistance | 21.32546 Ω/km | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 5302UE | ||
Number of Cores 4 | ||
Cross Sectional Area 0.82 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 152m | ||
Outer Diameter 4.67mm | ||
Voltage Rating 300 V | ||
Current Rating 4 A | ||
CPR Certification Eca | ||
Standards Met Euroclass Eca | ||
Maximum Operating Temperature +75°C | ||
Minimum Operating Temperature -20°C | ||
Cable Shape Multicore | ||
Core Strands 7/26 AWG | ||
Insulation Material PP | ||
Conductor Resistance 21.32546 Ω/km | ||
- COO (Country of Origin):
- MX
Belden Control Cable, Multicore Type, 4A Current Rating - 5302UE 008500
For smooth transfer of power, signals and data to your electronic devices, opt for this control cable from Belden. It's a four-core type with robust copper conductors that deliver high electrical conductivity, so you can be sure of stable transmission. You're protected when handling the cable as it has strong PP insulation to shield against electric shocks. A length of 152m gives you plenty to work with, whether you're making a long-range connection or cutting it to size for multiple connections.
Features & Benefits
• Wires are colour-coded for quick identification during cable assembly
• Safe to use in harsh settings thanks to an operating temperature range of -20°C to +75°C
• Unterminated ends offer flexibility in wire connection
• 4A current rating for use in low-power systems
• Safe to use in harsh settings thanks to an operating temperature range of -20°C to +75°C
• Unterminated ends offer flexibility in wire connection
• 4A current rating for use in low-power systems
Applications
• HVAC equipment
• Laboratories
• Transportation industry
• Robotics systems
• Laboratories
• Transportation industry
• Robotics systems
Is this cable flame-retardant?
Yes, this cable is flame-retardant thanks to its durable PVC outer sheath that has self-extinguishing properties.
