Belden 4200UE Control Cable, 2 Cores, 1.5 mm², Unscreened, 100m, Grey LSZH Sheath, 16 AWG
- RS Stock No.:
- 510-2189
- Mfr. Part No.:
- 4200UE.00100
- Brand:
- Belden
Subtotal (1 reel of 100 metres)*
£152.34
(exc. VAT)
£182.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £152.34 | £1.523 |
*price indicative
- RS Stock No.:
- 510-2189
- Mfr. Part No.:
- 4200UE.00100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 4200UE | |
| Number of Cores | 2 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 16 AWG | |
| Conductor Material | Copper | |
| Sheath Material | LSZH | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Length | 100m | |
| Minimum Bend Radius | 46 mm | |
| Outer Diameter | 4.6mm | |
| Voltage Rating | 300 V | |
| Current Rating | 6.25 A | |
| Standards Met | Euroclass Eca | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +70°C | |
| Fire Behaviour | Halogen Free | |
| Cable Shape | Multicore | |
| Core Strands | 19/29 AWG | |
| Minimum Operating Temperature | -20°C | |
| Insulation Material | PP | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 4200UE | ||
Number of Cores 2 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Copper | ||
Sheath Material LSZH | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 100m | ||
Minimum Bend Radius 46 mm | ||
Outer Diameter 4.6mm | ||
Voltage Rating 300 V | ||
Current Rating 6.25 A | ||
Standards Met Euroclass Eca | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Halogen Free | ||
Cable Shape Multicore | ||
Core Strands 19/29 AWG | ||
Minimum Operating Temperature -20°C | ||
Insulation Material PP | ||
- COO (Country of Origin):
- NL

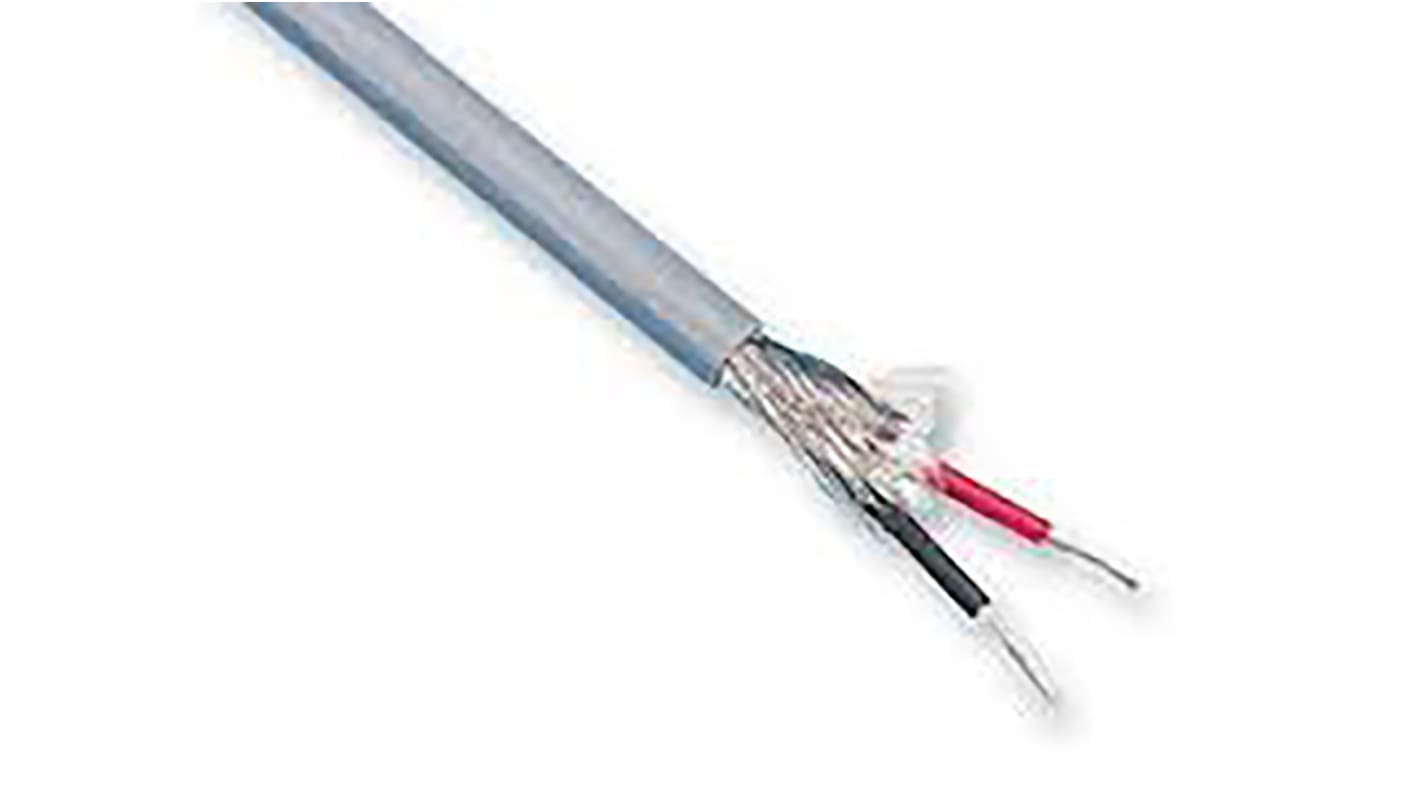

Belden Control Cable, 2 x 16AWG Stranded Conductors, Grey Colour - 4200UE Series - 4200UE.00100
Show your industrial equipment who's in charge with this unscreened 2-core control cable from Belden. It's a hassle-free way to transmit signals to attached components and tell them what to do. With a maximum current rating of 6.25A per conductor, this is an ideal match for powerful electrical systems. A slim diameter of 4.6mm means it's a bendy option that can squeeze into awkward setups.
Features & Benefits
• Polypropylene insulation protects against chemical damage in factory settings
• Supplied on a reel of 100m, so you can wire up large work areas
• Low-smoke zero-halogen type to prevent harmful emissions in the event of a fire
• Supplied on a reel of 100m, so you can wire up large work areas
• Low-smoke zero-halogen type to prevent harmful emissions in the event of a fire
Applications
• Intercom and PA equipment
• Audio systems
• Control networks
• Audio systems
• Control networks
Can I use this cable in harsh environments?
Yes. Its broad operating temperature range between -20°C and +70°C means it's safe to use in demanding work areas.
