- RS Stock No.:
- 510-2202
- Mfr. Part No.:
- 4300UE.00100
- Brand:
- Belden
19 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 100 Metre(s)
£113.19
(exc. VAT)
£135.83
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £113.19 | £1.132 |
*price indicative |
- RS Stock No.:
- 510-2202
- Mfr. Part No.:
- 4300UE.00100
- Brand:
- Belden
Technical Reference
Legislation and Compliance
Product Details

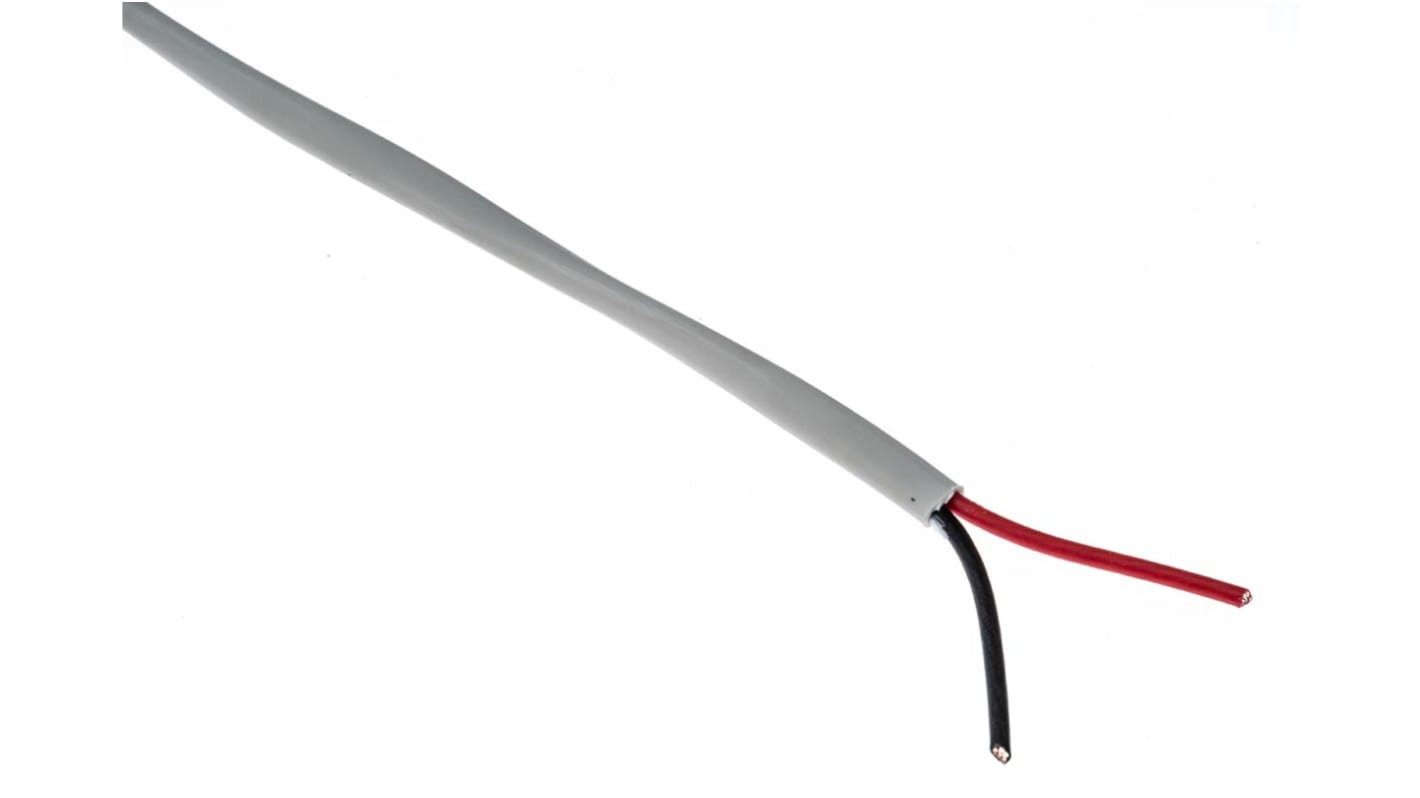

Belden Audio Cable, 100m, Unscreened, 4300UE.00100
Use this Belden cable 2 core unit for dependable and efficient transfer of audio signals. It can operated within temperatures of -30°C to +70°C, making it highly suitable for use in challenging industrial environments. This cable has a voltage rating of 300V and comes with a grey coloured sheath. It uses a LSZH jacket (Low Smoke Zero Halogen), which is a safer option for enclosed spaces as it emits minimal smoke in the event of a fire. It is ideally suited for security and commercial audio installations.
Features and Benefits:
• 90N maximum pulling tension
• Stranded bare copper conductors offer flexibility and optimal conduction of electrical current
• PP (Polypropylene) insulation, ensuring good chemical resistance and strength
• Generous 100m length
• Stranded bare copper conductors offer flexibility and optimal conduction of electrical current
• PP (Polypropylene) insulation, ensuring good chemical resistance and strength
• Generous 100m length
Applications:
Intercom/PA Systems
Sound/Audio Systems
Control Systems
Sound/Audio Systems
Control Systems
What are the benefits of using unscreened cables?
Unscreened cables tend to be more flexible, thin, and inexpensive compared to screened cables. They can also be easier to install.
Specifications
Attribute | Value |
---|---|
Number of Cores | 2 |
Cross Sectional Area | 0.75 mm² |
Screened/Unscreened | Unscreened |
Length | 100m |
Cable Shape | Multicore |
Sheath Colour | Grey |
American Wire Gauge | 18 AWG |
CPR Certification | Eca |
Outer Diameter | 4mm |
Sheath Material | LSZH |
Standards Met | Euroclass Eca |
Current Rating | 5 A |
Core Strands | 7/26 AWG |
Minimum Operating Temperature | -20°C |
Voltage Rating | 300 V |
Conductor Material | Copper |
Minimum Bend Radius | 40 mm |
Maximum Operating Temperature | +70°C |
Insulation Material | PP |
