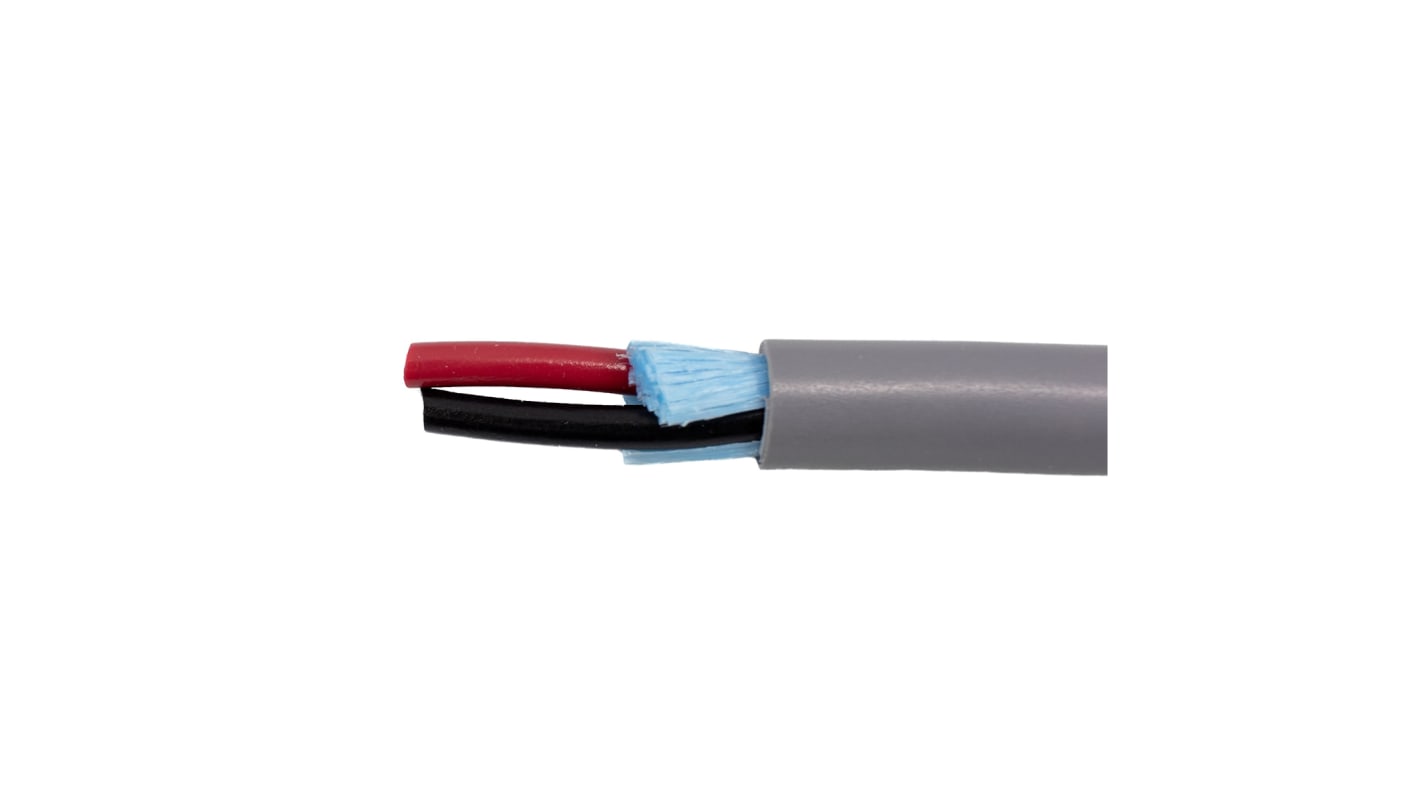

Alpha Wire Alpha Essentials Communication & Control Control Cable, 2 Cores, 2.09 mm², Unscreened, 305m, Grey PVC
- RS Stock No.:
- 187-1930
- Mfr. Part No.:
- 1891C SL001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£957.70
(exc. VAT)
£1,149.85
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
|---|---|---|
| 305 + | £3.14 | £957.70 |
*price indicative
- RS Stock No.:
- 187-1930
- Mfr. Part No.:
- 1891C SL001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Alpha Essentials Communication & Control | |
| Number of Cores | 2 | |
| Cross Sectional Area | 2.09 mm² | |
| American Wire Gauge | 14 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Length | 305m | |
| Outer Diameter | 6.99mm | |
| Minimum Bend Radius | 10 x Cable Diameter | |
| Voltage Rating | 300 V | |
| Standards Met | CE, CSA, UL | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Conductor Resistance | 2.8 Ω | |
| Core Strands | 41/30 AWG | |
| Insulation Material | PVC | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 2 | ||
Cross Sectional Area 2.09 mm² | ||
American Wire Gauge 14 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 305m | ||
Outer Diameter 6.99mm | ||
Minimum Bend Radius 10 x Cable Diameter | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Conductor Resistance 2.8 Ω | ||
Core Strands 41/30 AWG | ||
Insulation Material PVC | ||
Belden Alpha Wire Control Cable, 14AWG, 300V Rating - 1891C SL001
Looking for a reliable way to transmit data signals to your control devices? Choose this control cable from Belden's Alpha Wire range. It has two conductor wires, so it can be used to control two circuits simultaneously to reduce the wiring needs of your setup. The cable's PVC outer jacket provides protection from impact and abrasion, making it suitable for use in harsh environments. With a minimum bend radius of 10 times its diameter, it's flexible enough for installation around corners.
Features & Benefits
• Nominal conductor-to-conductor capacitance of 36pf/ft for high-integrity signals
• Broad operating temperature range of -20°C to +80°C for use in challenging settings
• Conductor housings are colour-coded red and black for easy identification
• Broad operating temperature range of -20°C to +80°C for use in challenging settings
• Conductor housings are colour-coded red and black for easy identification
Applications
• Telecommunications industry
• Security systems
• Security systems
What's the pull tension of this cable?
This cable has a 64lb pull tension, which means that it can withstand substantial strain in tough settings, giving you long-term performance.
