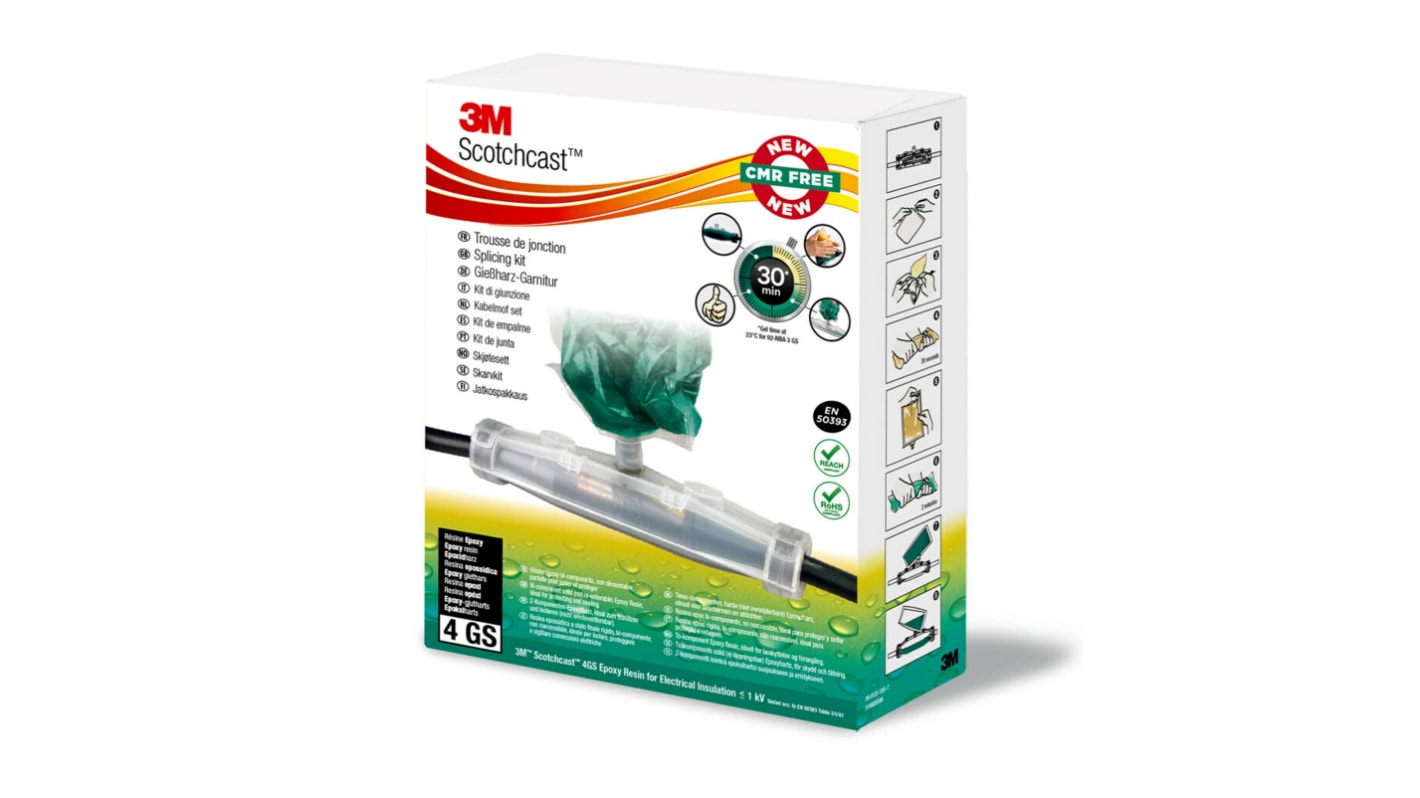

3M Scotchcast Resin Filled Cable Joint Kit, Straight Joint Type , 6 → 16mm²
- RS Stock No.:
- 269-5269
- Mfr. Part No.:
- 7100229876
- Brand:
- 3M
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 269-5269
- Mfr. Part No.:
- 7100229876
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | 3M | |
Product Type | Cable Joint Kit | |
Joint Type | Straight | |
Cable Size | 6 → 16mm² | |
Number of Cores | 1 → 5 | |
Dimensions | 230 x 38 x 71mm | |
Kit Includes | Aluminium Guard Bag, Colour Mixing Indicator, Epoxy Resin, Plastic Pouch, Transparent Mould Body | |
Series | Scotchcast | |
Application | Cable Connection | |
Material | Resin Filled | |
Select all | ||
---|---|---|
Brand 3M | ||
Product Type Cable Joint Kit | ||
Joint Type Straight | ||
Cable Size 6 → 16mm² | ||
Number of Cores 1 → 5 | ||
Dimensions 230 x 38 x 71mm | ||
Kit Includes Aluminium Guard Bag, Colour Mixing Indicator, Epoxy Resin, Plastic Pouch, Transparent Mould Body | ||
Series Scotchcast | ||
Application Cable Connection | ||
Material Resin Filled | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BE
3M Scotchcast Series Cable Joint Kit, Straight Joint Type, 6 to 16 mm² Cable Size - 7100229876
This cable joint kit is designed for efficient and reliable electrical connections, ideal for joining non-shielded, polymeric low-voltage energy cables. Its versatility and ease of use make it essential for a variety of electrical applications, ensuring robust performance in both indoor and outdoor environments.
Features & Benefits
• Resin-filled construction ensures durability and protection
• Designed for 6 to 16 mm² cables with connections for up to 5 cores
• Integrated Closed Mixing and Pouring system simplifies application
• Excellent water and humidity resistance during use
• One-part mould body promotes easy handling and clean results
• Compliant with health and safety regulations
• Designed for 6 to 16 mm² cables with connections for up to 5 cores
• Integrated Closed Mixing and Pouring system simplifies application
• Excellent water and humidity resistance during use
• One-part mould body promotes easy handling and clean results
• Compliant with health and safety regulations
Applications
• Connecting low voltage energy cables up to 0.6/1.0(1.2) kV
• Suitable for underground and submerged installations
• Provides electrical insulation and mechanical protection for joints
• Effective for both indoor and outdoor electrical systems
• Suitable for underground and submerged installations
• Provides electrical insulation and mechanical protection for joints
• Effective for both indoor and outdoor electrical systems
What type of cables can be used with this kit?
It accommodates low voltage energy cables ranging from 6 mm² to 16 mm², suitable for multi-core connections.
How should the resin be stored before use?
Store the resin at temperatures between 5°C and 40°C to maintain its effectiveness.
What is the mixing process for the resin components?
Combine the two resin components until a homogeneous green colour is achieved, indicating thorough mixing.
How long is the shelf life of the resin?
The resin has a shelf life of 36 months when stored under optimal conditions.
