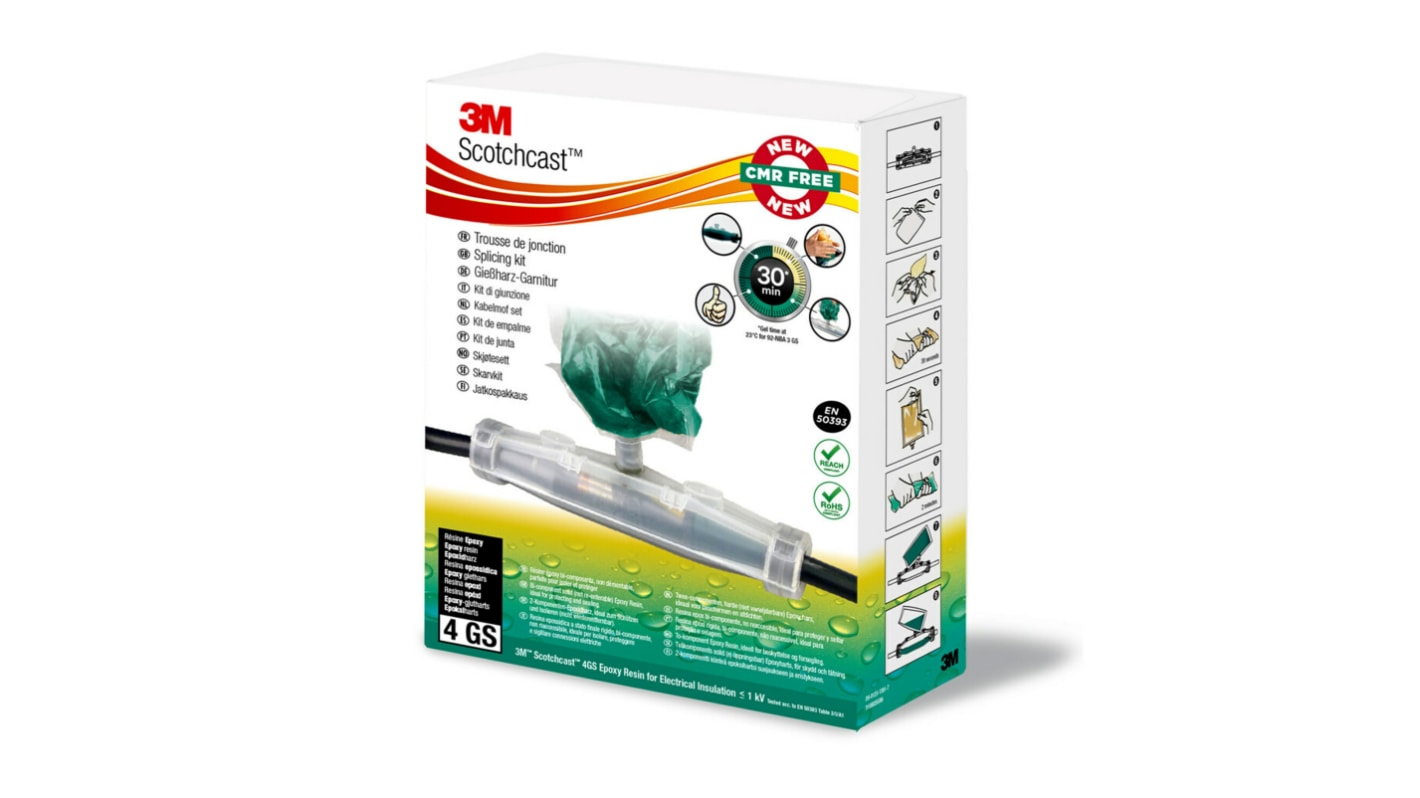

3M Scotchcast Resin Filled Cable Joint Kit, Straight Joint Type , 50 → 95mm²
- RS Stock No.:
- 269-5265
- Mfr. Part No.:
- 7100229874
- Brand:
- 3M
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 269-5265
- Mfr. Part No.:
- 7100229874
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | Cable Joint Kit | |
| Joint Type | Straight | |
| Cable Size | 50 → 95mm² | |
| Number of Cores | 1 → 5 | |
| Dimensions | 369 x 76 x 115mm | |
| Kit Includes | Aluminium Guard Bag, Colour Mixing Indicator, Epoxy Resin, Plastic Pouch, Transparent Mould Body | |
| Series | Scotchcast | |
| Application | Cable Connection | |
| Material | Resin Filled | |
Select all | ||
|---|---|---|
Brand 3M | ||
Product Type Cable Joint Kit | ||
Joint Type Straight | ||
Cable Size 50 → 95mm² | ||
Number of Cores 1 → 5 | ||
Dimensions 369 x 76 x 115mm | ||
Kit Includes Aluminium Guard Bag, Colour Mixing Indicator, Epoxy Resin, Plastic Pouch, Transparent Mould Body | ||
Series Scotchcast | ||
Application Cable Connection | ||
Material Resin Filled | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BE
3M Scotchcast Series Cable Joint Kit, Straight Joint Type, 50 to 95mm² Cable Size - 7100229874
This cable joint kit is designed for effective and reliable electrical connections of low-voltage energy cables. It accommodates the jointing of up to five cores of non-shielded, polymeric cables, enhancing the longevity and safety of electrical installations. With resin-filled connectors, this product is suitable for both indoor and outdoor use, making it a practical choice for professionals in various electrical fields.
Features & Benefits
• Provides electrical insulation and robust mechanical protection
• Integrated Closed Mixing and Pouring system for ease of handling
• Strong adhesion to a variety of metals and plastics
• Transparent mould body allows for easy monitoring of component spacing
• Integrated Closed Mixing and Pouring system for ease of handling
• Strong adhesion to a variety of metals and plastics
• Transparent mould body allows for easy monitoring of component spacing
Applications
• Used to create reliable joints in low-voltage cable installations
• Suitable for underground and submerged electrical systems
• Effective for both indoor and outdoor electrical projects
• Ideal for industrial settings where secure cable connections are essential
• Compatible with one to five core cable configurations
• Suitable for underground and submerged electrical systems
• Effective for both indoor and outdoor electrical projects
• Ideal for industrial settings where secure cable connections are essential
• Compatible with one to five core cable configurations
What preparation is needed before mixing the resin?
It's advisable to keep resin bags at temperatures of 10°C or warmer before mixing.
How should the joints be stored until use?
Store the product in a sealed guard bag at temperatures between 5°C and 40°C in a low humidity environment.
Can this solution be used in submerged locations?
Yes, it is specifically designed for underwater applications, ensuring durability and reliability.
What is the maximum operating temperature for continuous use?
This product supports continuous use up to 110°C and can handle overloads of 130°C.
How do I ensure proper mixing of the resin components?
The components mix adequately when the resin turns a uniform green colour.
