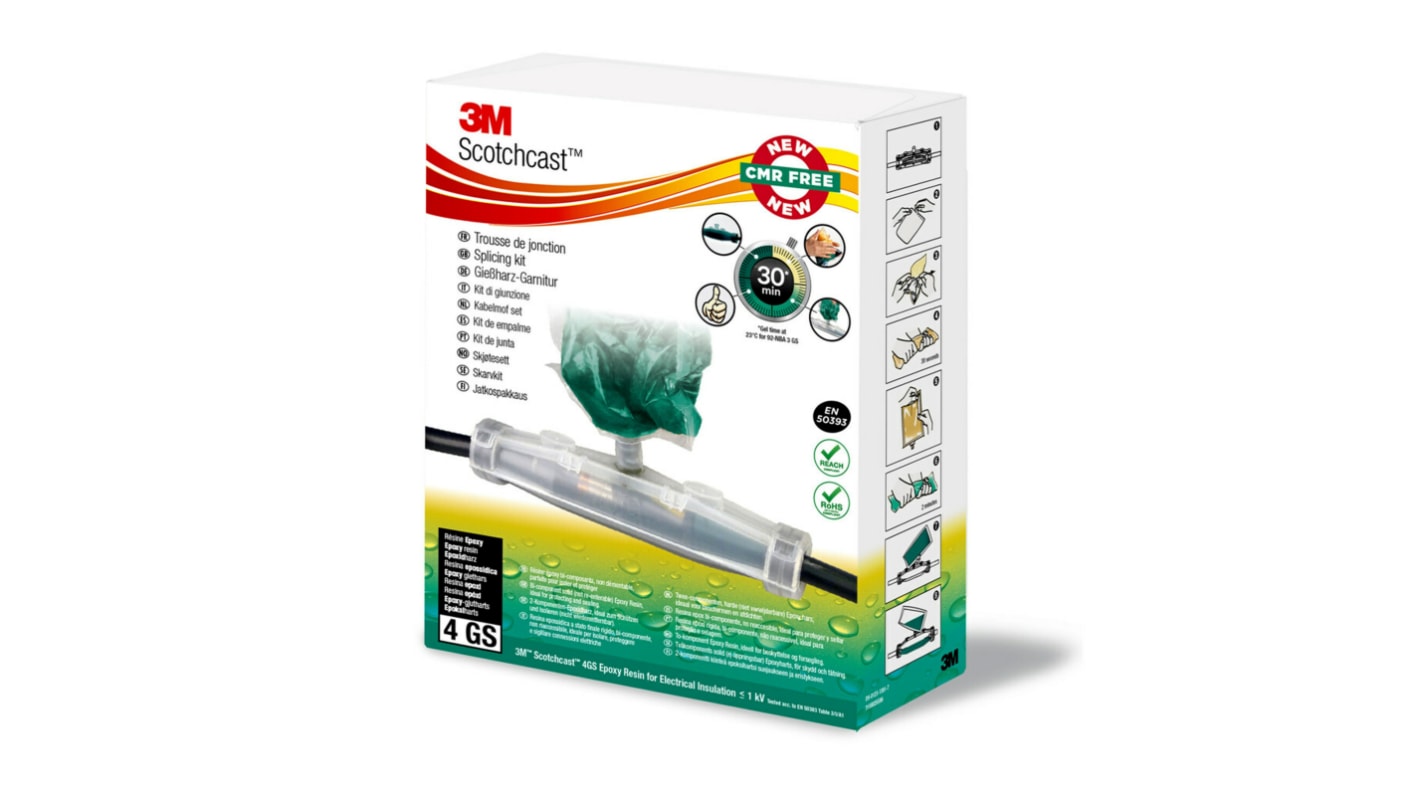

3M Scotchcast Resin Filled Cable Joint Kit, Straight Joint Type , 70 → 120mm²
- RS Stock No.:
- 269-5263
- Mfr. Part No.:
- 7100229873
- Brand:
- 3M
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 269-5263
- Mfr. Part No.:
- 7100229873
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | 3M | |
Product Type | Cable Joint Kit | |
Joint Type | Straight | |
Cable Size | 70 → 120mm² | |
Number of Cores | 1 → 5 | |
Dimensions | 479 x 101 x 144mm | |
Kit Includes | Aluminium Guard Bag, Colour Mixing Indicator, Epoxy Resin, Plastic Pouch, Transparent Mould Body | |
Series | Scotchcast | |
Application | Cable Connection | |
Material | Resin Filled | |
Select all | ||
---|---|---|
Brand 3M | ||
Product Type Cable Joint Kit | ||
Joint Type Straight | ||
Cable Size 70 → 120mm² | ||
Number of Cores 1 → 5 | ||
Dimensions 479 x 101 x 144mm | ||
Kit Includes Aluminium Guard Bag, Colour Mixing Indicator, Epoxy Resin, Plastic Pouch, Transparent Mould Body | ||
Series Scotchcast | ||
Application Cable Connection | ||
Material Resin Filled | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BE
3M Scotchcast Series Cable Joint Kit, Straight Joint Type, 70 to 120mm² Cable Size - 7100229873
This cable joint kit is designed for efficient electrical connections in multi-core low-voltage energy applications. It provides a reliable, waterproof connection for cable sizes ranging from 70 to 120 mm², making it ideal for both indoor and outdoor installations. The resin-filled design enhances performance and user-friendliness.
Features & Benefits
• Resin 4GS ensures strong adhesion to various materials
• Closed mixing and pouring system prevents skin contact
• Transparent mould allows visibility during application
• Enhanced humidity resistance ensures effective curing
• Pre-cut foam seals enable straightforward installation
• Operating temperature range accommodates diverse environments
• Closed mixing and pouring system prevents skin contact
• Transparent mould allows visibility during application
• Enhanced humidity resistance ensures effective curing
• Pre-cut foam seals enable straightforward installation
• Operating temperature range accommodates diverse environments
Applications
• Electrical cable jointing in industrial settings
• Suitable for underground and submerged installations
• Connecting non-shielded polymeric cables
• Compatible with low voltage energy cables up to 0.6/1.0(1.2) kV
• Suitable for underground and submerged installations
• Connecting non-shielded polymeric cables
• Compatible with low voltage energy cables up to 0.6/1.0(1.2) kV
What is the temperature range suitable for operation?
The product operates effectively between -40°C and +110°C continuously, with overload capabilities up to 130°C.
How should the resin be stored before use?
Store resin bags at temperatures above 10°C prior to mixing to ensure optimal performance.
Is training provided for installation?
Detailed instruction drawings are included to assist with the installation process, ensuring clarity for users.
How does one ensure proper mixing of the resin?
The resin should achieve a homogenous green colour when adequately mixed, indicating it is ready for use.
