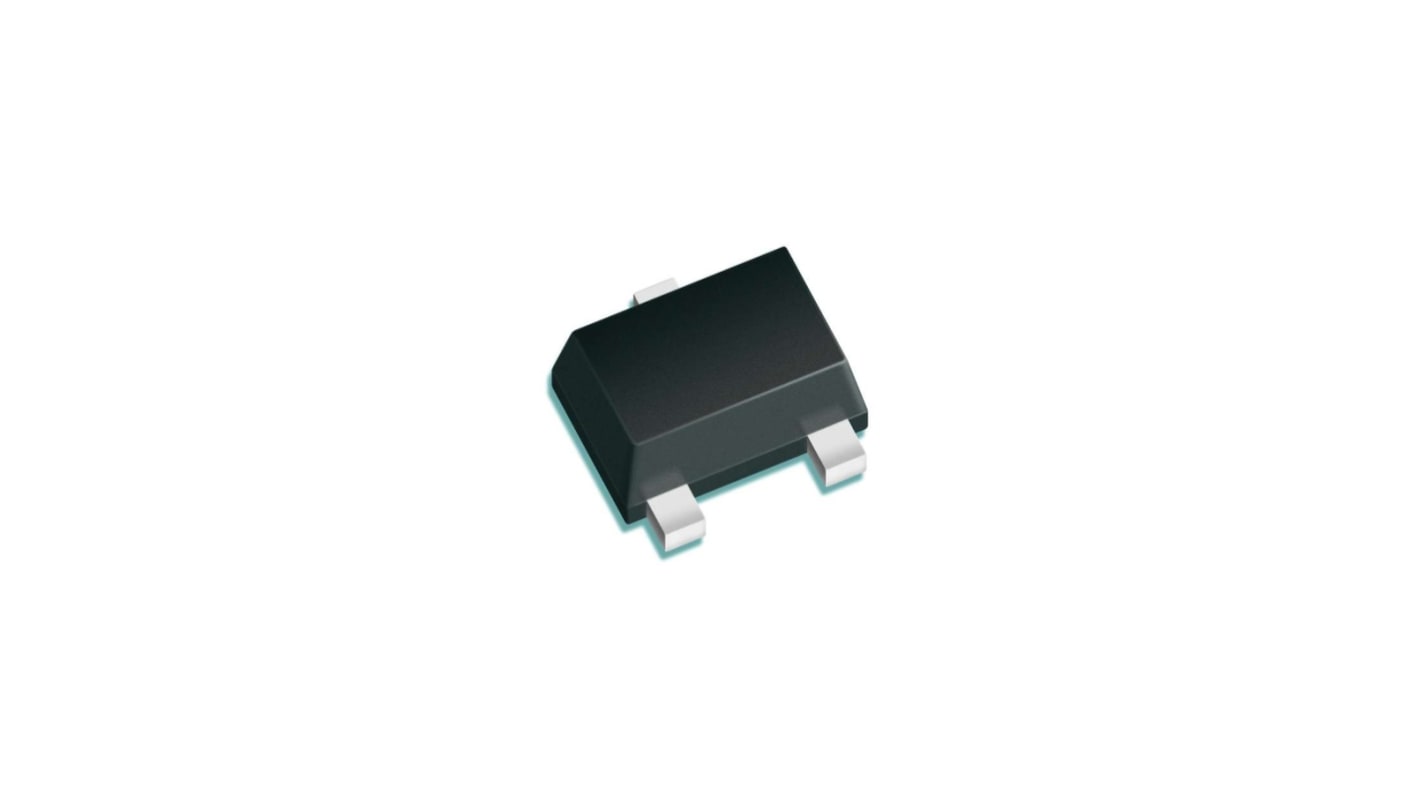

Infineon RF Bipolar Transistor, 80 mA NPN, 15 V, 3-Pin TSFP-3-1
- RS Stock No.:
- 259-1457
- Mfr. Part No.:
- BFR380FH6327XTSA1
- Brand:
- Infineon
Subtotal (1 reel of 3000 units)*
£129.00
(exc. VAT)
£156.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.043 | £129.00 |
*price indicative
- RS Stock No.:
- 259-1457
- Mfr. Part No.:
- BFR380FH6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | RF Bipolar Transistor | |
| Maximum DC Collector Current Idc | 80mA | |
| Maximum Collector Emitter Voltage Vceo | 15V | |
| Package Type | TSFP-3-1 | |
| Mount Type | Surface | |
| Transistor Configuration | NPN | |
| Maximum Collector Base Voltage VCBO | 15V | |
| Maximum Power Dissipation Pd | 380mW | |
| Minimum Operating Temperature | -55°C | |
| Maximum Emitter Base Voltage VEBO | 2V | |
| Minimum DC Current Gain hFE | 90 | |
| Transistor Polarity | NPN | |
| Maximum Transition Frequency ft | 14GHz | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Series | BFR | |
| Standards/Approvals | RoHS | |
| Height | 0.55mm | |
| Length | 1.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type RF Bipolar Transistor | ||
Maximum DC Collector Current Idc 80mA | ||
Maximum Collector Emitter Voltage Vceo 15V | ||
Package Type TSFP-3-1 | ||
Mount Type Surface | ||
Transistor Configuration NPN | ||
Maximum Collector Base Voltage VCBO 15V | ||
Maximum Power Dissipation Pd 380mW | ||
Minimum Operating Temperature -55°C | ||
Maximum Emitter Base Voltage VEBO 2V | ||
Minimum DC Current Gain hFE 90 | ||
Transistor Polarity NPN | ||
Maximum Transition Frequency ft 14GHz | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Series BFR | ||
Standards/Approvals RoHS | ||
Height 0.55mm | ||
Length 1.2mm | ||
Automotive Standard No | ||
The Infineon NPN silicon RF transistor has collector design which supports 5V supply voltage. It is Ideal for oscillators up to 3.5 GHz.
High linearity low noise driver amplifier
Low noise figure 1.1 dB at 1.8 GHz
Pb-free (RoHS compliant) package
