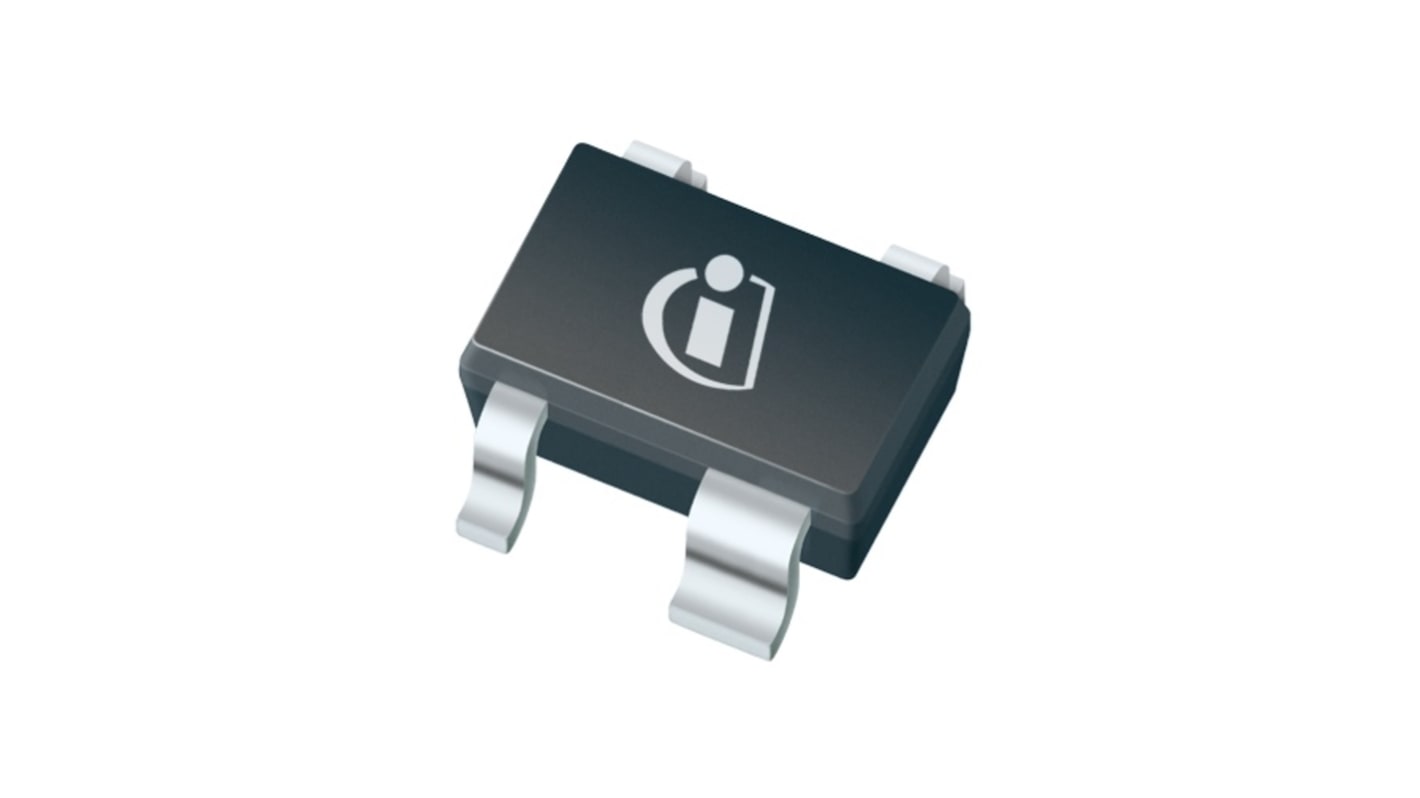

Infineon BFP196WH6327XTSA1 RF Bipolar Transistor, 150 mA NPN, 20 V, 4-Pin SOT-343
- RS Stock No.:
- 259-1417
- Distrelec Article No.:
- 304-40-484
- Mfr. Part No.:
- BFP196WH6327XTSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£2.25
(exc. VAT)
£2.75
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 75 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 225 | £0.09 | £2.25 |
| 250 - 600 | £0.083 | £2.08 |
| 625 - 1225 | £0.08 | £2.00 |
| 1250 - 2475 | £0.078 | £1.95 |
| 2500 + | £0.076 | £1.90 |
*price indicative
- RS Stock No.:
- 259-1417
- Distrelec Article No.:
- 304-40-484
- Mfr. Part No.:
- BFP196WH6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | RF Bipolar Transistor | |
| Maximum DC Collector Current Idc | 150mA | |
| Maximum Collector Emitter Voltage Vceo | 20V | |
| Package Type | SOT-343 | |
| Mount Type | Surface | |
| Transistor Configuration | NPN | |
| Maximum Collector Base Voltage VCBO | 20V | |
| Maximum Power Dissipation Pd | 700mW | |
| Maximum Transition Frequency ft | 7.5GHz | |
| Minimum DC Current Gain hFE | 70 | |
| Minimum Operating Temperature | -60°C | |
| Transistor Polarity | NPN | |
| Maximum Emitter Base Voltage VEBO | 2V | |
| Pin Count | 4 | |
| Maximum Operating Temperature | 150°C | |
| Length | 2.1mm | |
| Standards/Approvals | RoHS | |
| Height | 0.9mm | |
| Series | BFP196W | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type RF Bipolar Transistor | ||
Maximum DC Collector Current Idc 150mA | ||
Maximum Collector Emitter Voltage Vceo 20V | ||
Package Type SOT-343 | ||
Mount Type Surface | ||
Transistor Configuration NPN | ||
Maximum Collector Base Voltage VCBO 20V | ||
Maximum Power Dissipation Pd 700mW | ||
Maximum Transition Frequency ft 7.5GHz | ||
Minimum DC Current Gain hFE 70 | ||
Minimum Operating Temperature -60°C | ||
Transistor Polarity NPN | ||
Maximum Emitter Base Voltage VEBO 2V | ||
Pin Count 4 | ||
Maximum Operating Temperature 150°C | ||
Length 2.1mm | ||
Standards/Approvals RoHS | ||
Height 0.9mm | ||
Series BFP196W | ||
Automotive Standard AEC-Q101 | ||
The Infineon NPN silicon RF transistor is used for low noise, low distortion broadband amplifiers in antenna and telecommunications systems up to 1.5 GHz at collector currents from 20 mA to 80 mA.
Power amplifier for DECT and PCN systems
Pb-free (RoHS compliant) package
