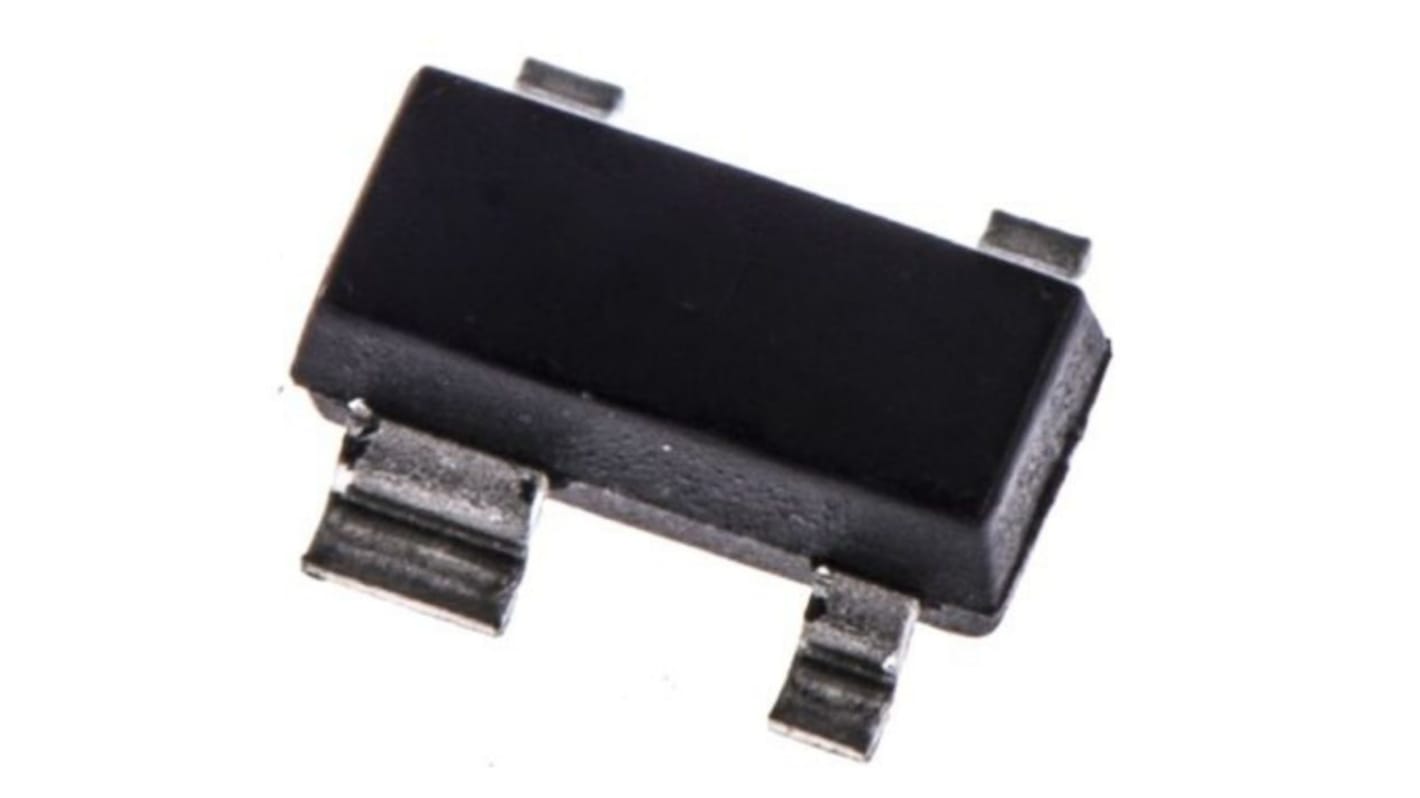

Infineon Bipolar Transistor, 20 mA NPN, 20 V, 4-Pin SOT-143
- RS Stock No.:
- 258-6986
- Mfr. Part No.:
- BFP181E7764HTSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 3000 units)*
£237.00
(exc. VAT)
£285.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.079 | £237.00 |
| 6000 - 12000 | £0.073 | £219.00 |
| 15000 + | £0.072 | £216.00 |
*price indicative
- RS Stock No.:
- 258-6986
- Mfr. Part No.:
- BFP181E7764HTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | 20mA | |
| Maximum Collector Emitter Voltage Vceo | 20V | |
| Package Type | SOT-143 | |
| Mount Type | Surface | |
| Maximum Collector Base Voltage VCBO | 20V | |
| Maximum Power Dissipation Pd | 175mW | |
| Maximum Transition Frequency ft | 8GHz | |
| Maximum Emitter Base Voltage VEBO | 2V | |
| Minimum DC Current Gain hFE | 70 | |
| Minimum Operating Temperature | -55°C | |
| Transistor Polarity | NPN | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 4 | |
| Standards/Approvals | RoHS | |
| Height | 1mm | |
| Length | 2.9mm | |
| Series | BFP181 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc 20mA | ||
Maximum Collector Emitter Voltage Vceo 20V | ||
Package Type SOT-143 | ||
Mount Type Surface | ||
Maximum Collector Base Voltage VCBO 20V | ||
Maximum Power Dissipation Pd 175mW | ||
Maximum Transition Frequency ft 8GHz | ||
Maximum Emitter Base Voltage VEBO 2V | ||
Minimum DC Current Gain hFE 70 | ||
Minimum Operating Temperature -55°C | ||
Transistor Polarity NPN | ||
Maximum Operating Temperature 150°C | ||
Pin Count 4 | ||
Standards/Approvals RoHS | ||
Height 1mm | ||
Length 2.9mm | ||
Series BFP181 | ||
Automotive Standard AEC-Q101 | ||
The Infineon NPN silicon RF transistor is for low noise, high gain broadband amplifiers at collector currents from 0.5 mA to 12 mA. This transistor is used for amplifier and oscillator applications in RF front end and wireless communications.
Qualification report according to AEC-Q101 available
Pb free RoHS compliant package
