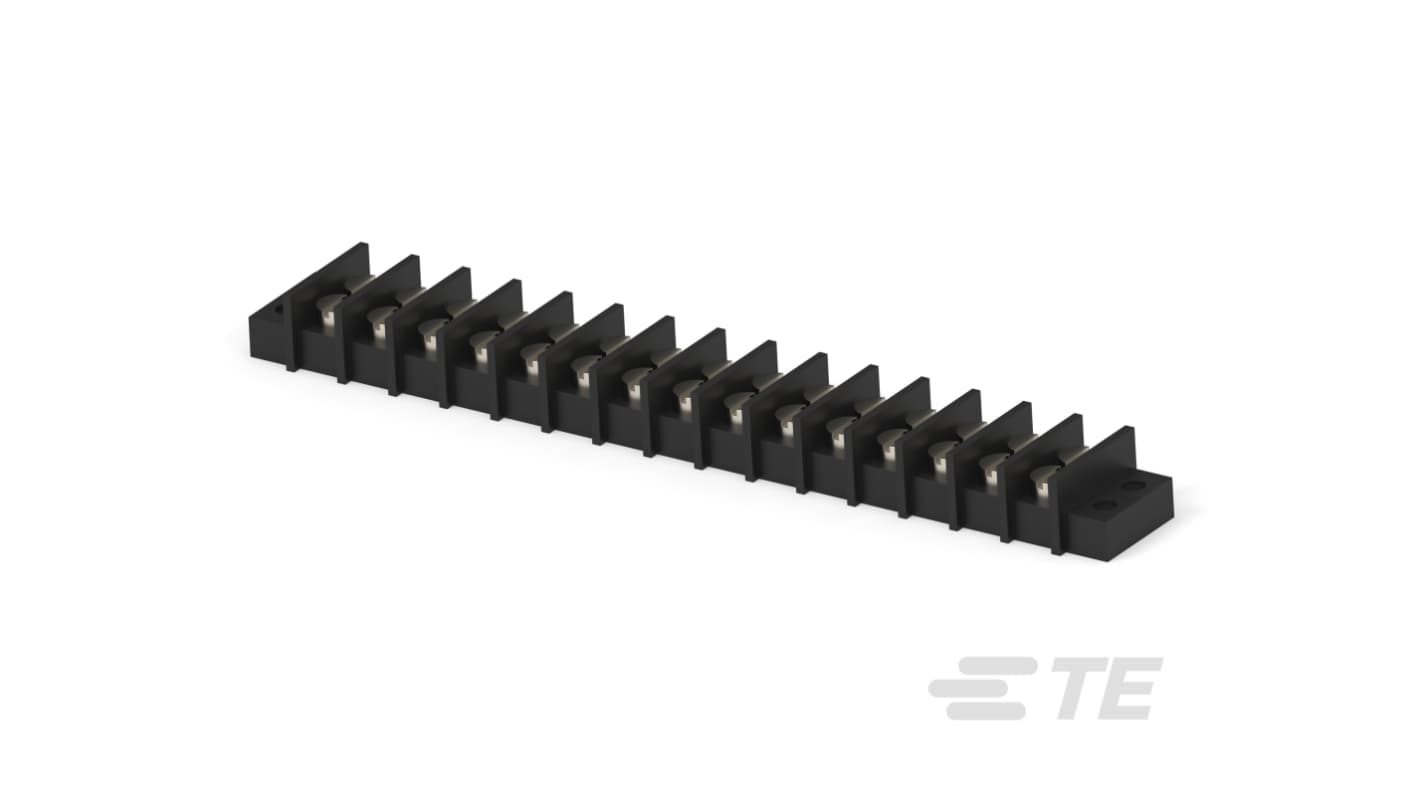

TE Connectivity Barrier Strip, 15 Contact, 9.53 mm Pitch, 2 Row, 300 V, 20A
- RS Stock No.:
- 508-411
- Mfr. Part No.:
- 1-1546306-5
- Brand:
- TE Connectivity
Subtotal (1 pack of 50 units)*
£168.98
(exc. VAT)
£202.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £168.98 | £3.38 |
*price indicative
- RS Stock No.:
- 508-411
- Mfr. Part No.:
- 1-1546306-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 15 | |
| Product Type | Barrier Strip | |
| Pitch | 9.53mm | |
| Orientation | Vertical | |
| Current | 20A | |
| Contact Material | Brass | |
| Housing Material | Thermoplastic | |
| Contact Plating | Tin | |
| Number of Rows | 2 | |
| Screw Size | 6-32 | |
| Wire Size | 22 AWG | |
| Minimum Operating Temperature | -40°C | |
| Voltage | 300 V | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | UL 94V-0 | |
| Length | 160mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 15 | ||
Product Type Barrier Strip | ||
Pitch 9.53mm | ||
Orientation Vertical | ||
Current 20A | ||
Contact Material Brass | ||
Housing Material Thermoplastic | ||
Contact Plating Tin | ||
Number of Rows 2 | ||
Screw Size 6-32 | ||
Wire Size 22 AWG | ||
Minimum Operating Temperature -40°C | ||
Voltage 300 V | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals UL 94V-0 | ||
Length 160mm | ||
- COO (Country of Origin):
- TW
The TE Connectivity 15 Position Barrier Strip from TE Connectivity is an innovative solution designed for reliable wire-to-wire connections in various applications. Engineered with dual barriers and a centreline of 9.53 mm, it accommodates wires ranging from 22 to 12 AWG, providing versatility in your installation. This barrier strip excels in durability and functionality, making it a perfect choice for both commercial and industrial environments. Its robust construction and high operating voltage of 300 V ensure excellent performance under demanding conditions. Additionally, the product is compliant with relevant safety standards, reinforcing its suitability for sensitive applications. Experience enhanced connectivity and ease of installation with this remarkable solution that stands the test of time.
Designed for secure and reliable wire connections
Accommodates a wide range of wire sizes
Compliant with strict industry safety standards
Quick connect tab plating improves conductivity
Vertical orientation optimises space utilisation
Low halogen content aligns with environmental regulations
Panel mount design facilitates straightforward installation
Features end mounting ears for enhanced stability
Wave solder capable for high volume assembly processes
Robust thermoplastic housing provides long lasting durability
