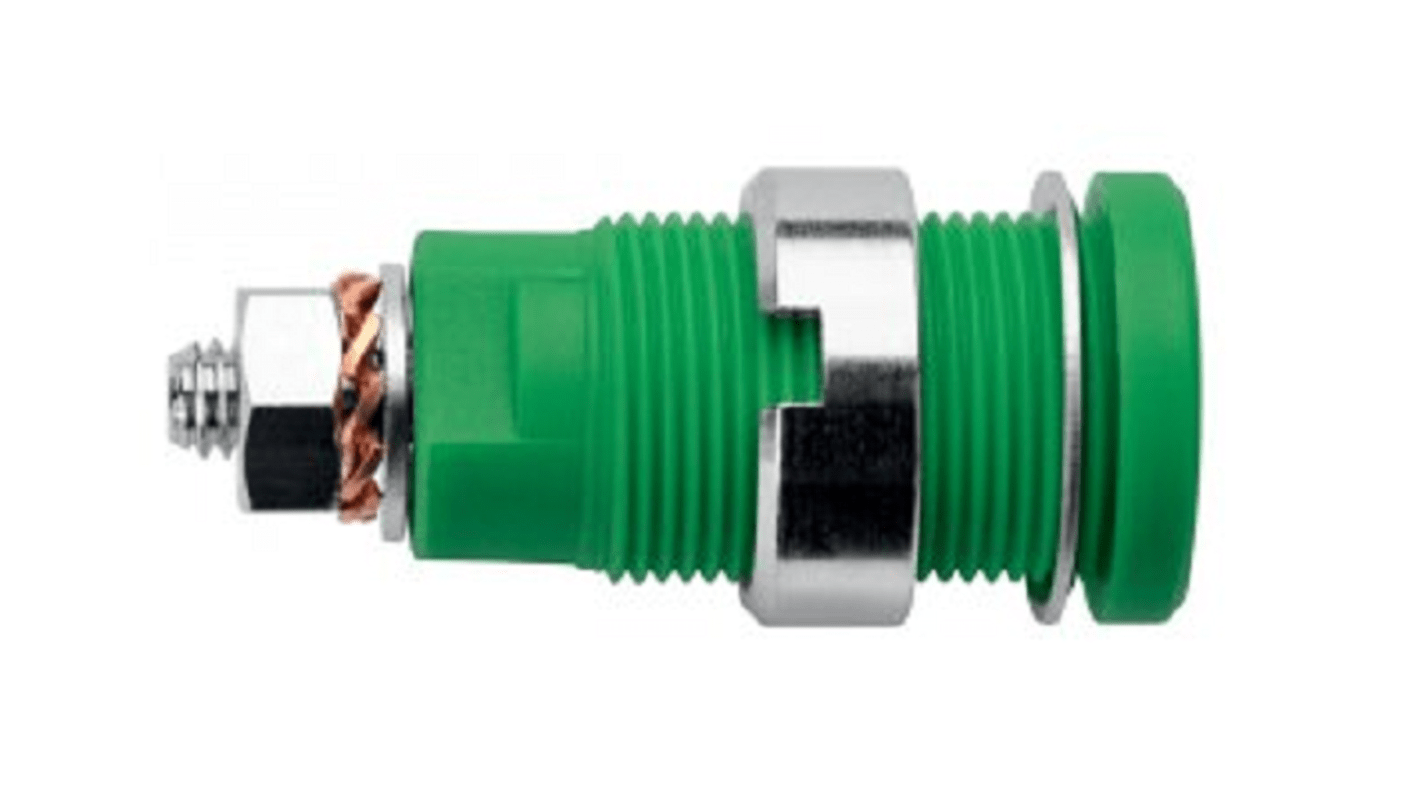

Schutzinger Green, Yellow Male Banana Socket, M4 Thread Termination, 32A, 1kV, Nickel Plating
- RS Stock No.:
- 249-4814
- Mfr. Part No.:
- RS SEB 6445 Ni / GNGE
- Brand:
- Schutzinger
Bulk discount available
Subtotal (1 unit)*
£3.63
(exc. VAT)
£4.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £3.63 |
10 - 24 | £3.44 |
25 - 49 | £3.26 |
50 + | £3.08 |
*price indicative
- RS Stock No.:
- 249-4814
- Mfr. Part No.:
- RS SEB 6445 Ni / GNGE
- Brand:
- Schutzinger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schutzinger | |
Colour | Green, Yellow | |
Gender | Male | |
Termination Method | M4 Thread | |
Voltage Rating | 1kV | |
Current Rating | 32A | |
Contact Plating | Nickel | |
Type | Banana Socket | |
Select all | ||
---|---|---|
Brand Schutzinger | ||
Colour Green, Yellow | ||
Gender Male | ||
Termination Method M4 Thread | ||
Voltage Rating 1kV | ||
Current Rating 32A | ||
Contact Plating Nickel | ||
Type Banana Socket | ||
- COO (Country of Origin):
- DE
The Schutzinger Safety threaded socket has 32 A rated current and 1000 V CAT III rated voltage, used for fixture in panels up to 6 mm thick also fixed by slotted nut M12 x 0.75
and spring washer using special tools MWZ 8 and MWZ 15 with green-yellow color
and spring washer using special tools MWZ 8 and MWZ 15 with green-yellow color
Nickel-plated contact parts
Terminal M4
Maximum torque fastening nut 45 Ncm
Maximum torque nut M4 100 Ncm
Insulation PA 6.6 (Polyamide), UL94 - V2
Operating temperature from - 25 °C to + 80 °C
Terminal M4
Maximum torque fastening nut 45 Ncm
Maximum torque nut M4 100 Ncm
Insulation PA 6.6 (Polyamide), UL94 - V2
Operating temperature from - 25 °C to + 80 °C
