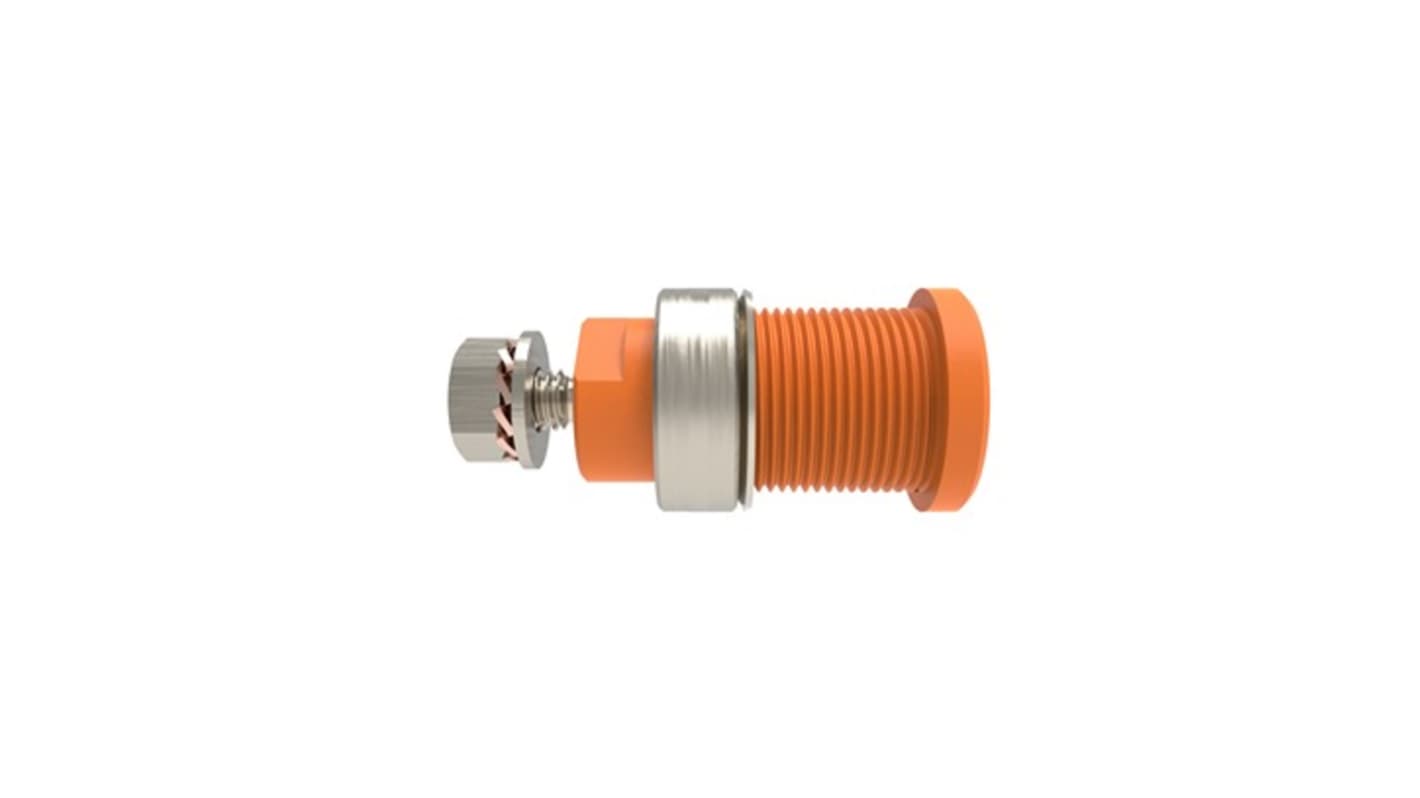

Schutzinger Orange Female Banana Connector, 4 mm Connector, M4 Thread Termination, 32A, 1kV, Nickel Plating
- RS Stock No.:
- 609-312
- Mfr. Part No.:
- RS SEB 6445 Ni / OR
- Brand:
- Schutzinger
Bulk discount available
Subtotal (1 unit)*
£1.67
(exc. VAT)
£2.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 94 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.67 |
| 10 - 24 | £1.53 |
| 25 + | £1.35 |
*price indicative
- RS Stock No.:
- 609-312
- Mfr. Part No.:
- RS SEB 6445 Ni / OR
- Brand:
- Schutzinger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schutzinger | |
| Colour | Orange | |
| Gender | Female | |
| Termination Method | M4 Thread | |
| Voltage Rating | 1kV | |
| Current Rating | 32A | |
| Connector Size | 4 mm | |
| Contact Plating | Nickel | |
Select all | ||
|---|---|---|
Brand Schutzinger | ||
Colour Orange | ||
Gender Female | ||
Termination Method M4 Thread | ||
Voltage Rating 1kV | ||
Current Rating 32A | ||
Connector Size 4 mm | ||
Contact Plating Nickel | ||
- COO (Country of Origin):
- DE
The Schutzinger Safety threaded socket is designed for fixture in panels up to 6 mm thick. It is secured using a slotted nut M12 x 0.75 and a spring washer for a reliable and vibration-resistant connection. The socket fits into a 12.2 ± 0.1 mm diameter hole and requires special tools MWZ 8 and MWZ 15 for installation (see accessories). Ideal for safe and stable panel mounting.
Nickel plated contact part
Polyamide insulation
-25 °C to +80 °C operating temperature
Polyamide insulation
-25 °C to +80 °C operating temperature
