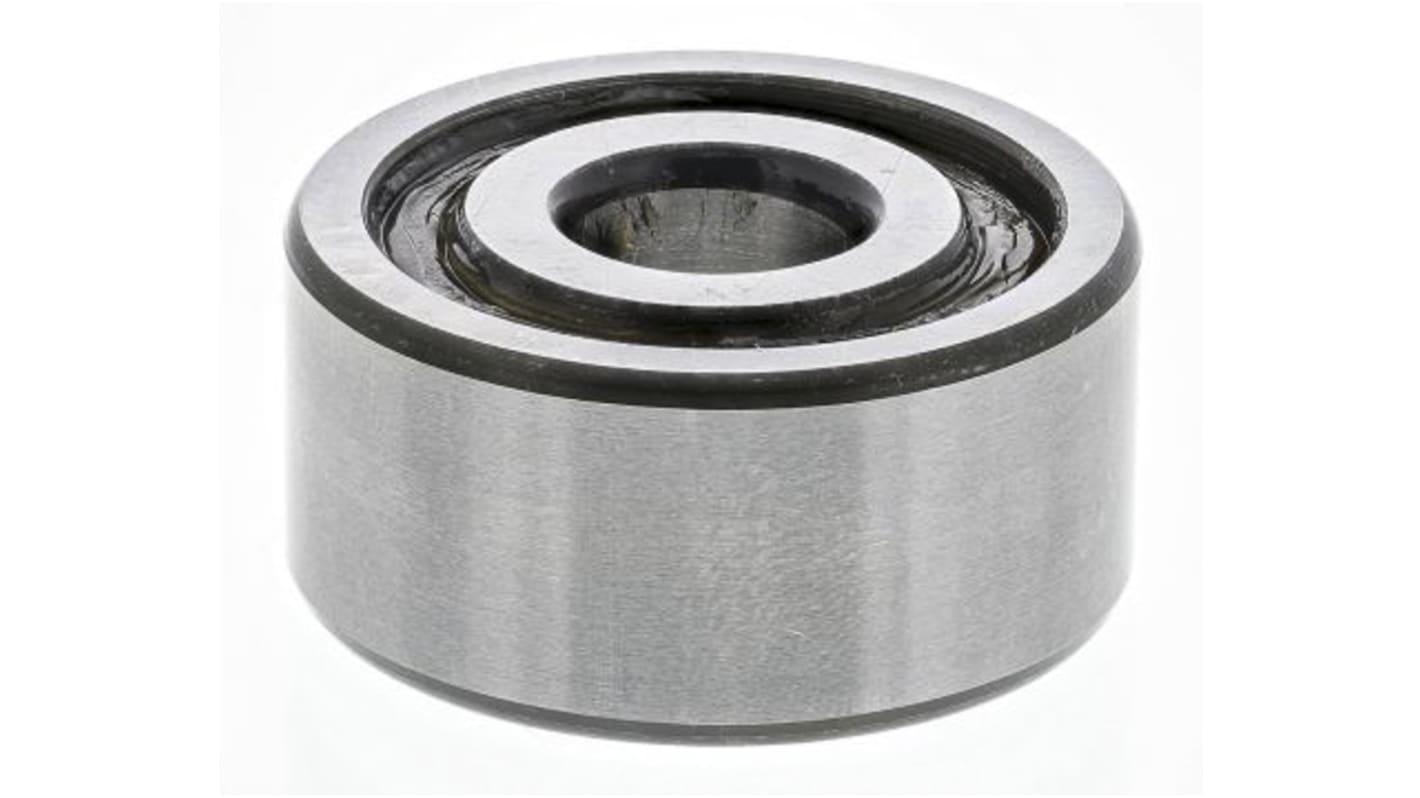

NSK 3203BTNG Double Row Angular Contact Ball Bearing- Open Type 17mm I.D, 40mm O.D
- RS Stock No.:
- 409-0782
- Mfr. Part No.:
- 3203BTNG
- Brand:
- NSK
Bulk discount available
Subtotal (1 unit)*
£32.15
(exc. VAT)
£38.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 999,999,994 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £32.15 |
5 - 9 | £30.86 |
10 - 24 | £30.21 |
25 + | £29.57 |
*price indicative
- RS Stock No.:
- 409-0782
- Mfr. Part No.:
- 3203BTNG
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | NSK | |
Inside Diameter | 17mm | |
Outside Diameter | 40mm | |
Race Width | 17.5mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 2 | |
Static Load Rating | 9kN | |
Dynamic Load Rating | 14.6kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 3203 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand NSK | ||
Inside Diameter 17mm | ||
Outside Diameter 40mm | ||
Race Width 17.5mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 2 | ||
Static Load Rating 9kN | ||
Dynamic Load Rating 14.6kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 3203 | ||
Race Type Plain | ||
RoHS Status: Exempt
Double Row Ball Bearings
Designed for greater dynamic and static load rating capacity than the single row version, and are very often used instead of a pair of single row angular contact bearings where assembly of the latter could be difficult and where there is a need to minimise tilt 25° contact angle
Supplied with
Instruction leaflet
Double Row Angular Contact Ball Bearings are similar to Single Row Axial Ball Bearings (when used as a pair, back to back), however, unlike Single Row Axial Ball Bearings, they can accept radial and axial loads simutaneously.
