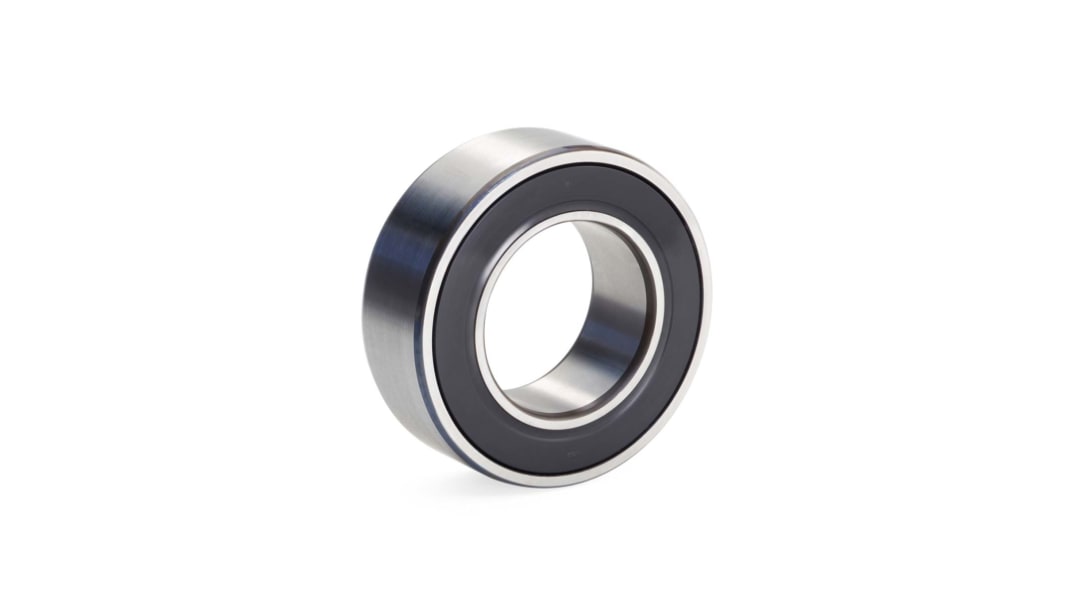

SKF 3203A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 17mm I.D, 40mm O.D
- RS Stock No.:
- 505-637
- Mfr. Part No.:
- 3203A-2RS1TN9/MT33
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£41.21
(exc. VAT)
£49.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 30 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £41.21 |
5 - 9 | £40.11 |
10 - 24 | £39.00 |
25 + | £37.97 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£35.54
(exc. VAT)
£42.65
(inc. VAT)
- RS Stock No.:
- 505-637
- Mfr. Part No.:
- 3203A-2RS1TN9/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 17mm | |
Outside Diameter | 40mm | |
Race Width | 17.5mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 8.8kN | |
Dynamic Load Rating | 14.3kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 3203 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 17mm | ||
Outside Diameter 40mm | ||
Race Width 17.5mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 8.8kN | ||
Dynamic Load Rating 14.3kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 3203 | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BG
SKF Combined Load Ball Bearing, 17mm ID, 40mm OD - 3203A-2RS1TN9/MT33
This innovative angular contact bearing is designed to effectively balance both axial and radial loads in multiple directions. It features two rows of rolling elements housed between plain races for smoother contact. The angular design allows it to be used at higher contact angles, which boosts its axial load-carrying ability. You can comfortably use this ball bearing for long periods without routine maintenance. Use it to ensure the smooth running of mechanical systems that involve sharp turns and high speeds.
• Sealed ends provide reinforced protection against abrasion
• Hardened steel material for prevention of dents and damage
• High 14.3kN dynamic rating for stability in vibrating parts
• Hardened steel material for prevention of dents and damage
• High 14.3kN dynamic rating for stability in vibrating parts
Applications
• Automotive industry
• Medical equipment
• Agricultural machinery
• Construction
• Medical equipment
• Agricultural machinery
• Construction
How is this double-row ball bearing different from a single-row ball bearing?
This ball bearing has two rolling elements arranged parallel to each other. This rigid arrangement makes it more grounded and able to accommodate tilting movements. A single-row bearing one row of densely arranged rolling components. This makes it compact and able to run at a higher speed.
