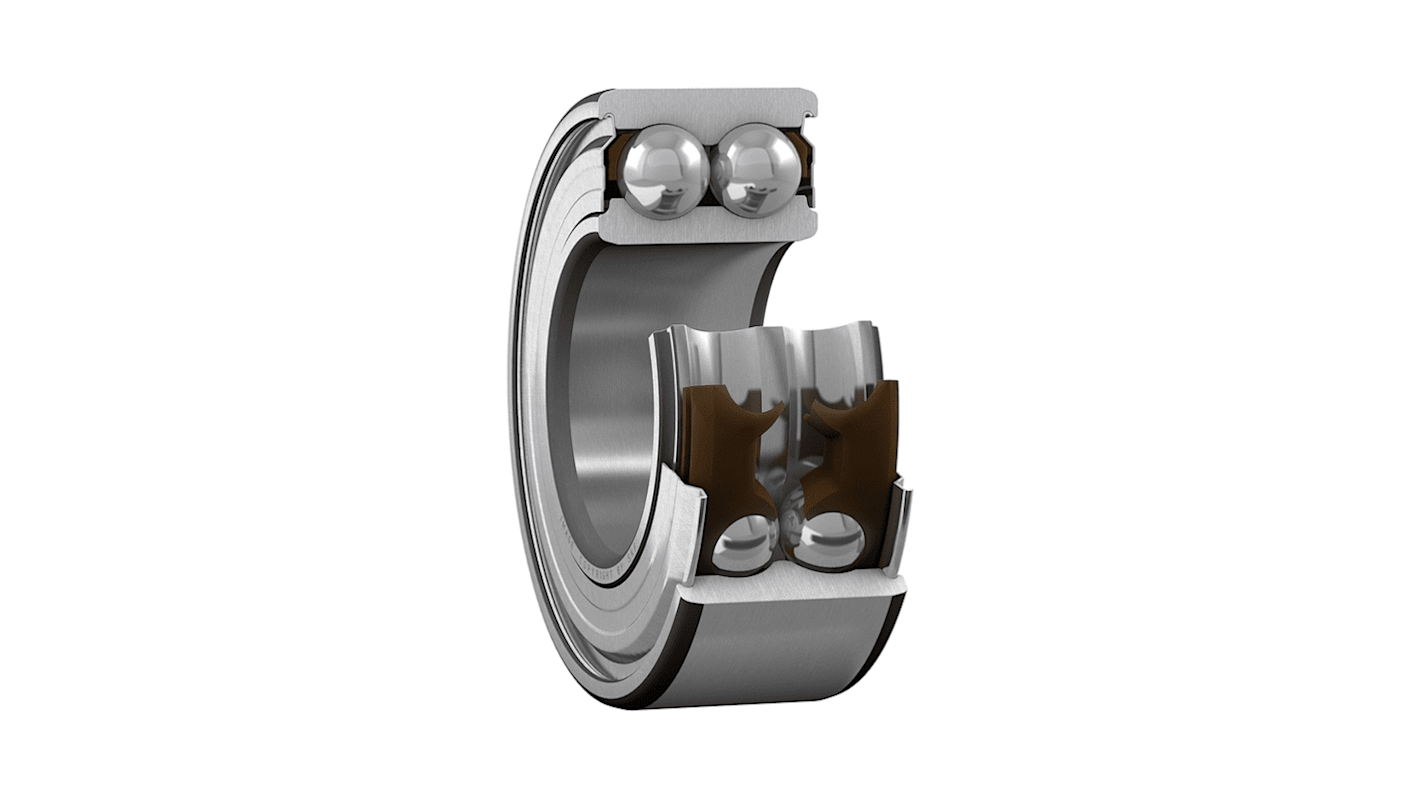

SKF 3203 A-2ZTN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Shielded 17mm I.D, 40mm O.D
- RS Stock No.:
- 207-9847
- Mfr. Part No.:
- 3203 A-2ZTN9/MT33
- Brand:
- SKF
Subtotal (1 unit)*
£43.45
(exc. VAT)
£52.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £43.45 |
*price indicative
- RS Stock No.:
- 207-9847
- Mfr. Part No.:
- 3203 A-2ZTN9/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 17mm | |
Outside Diameter | 40mm | |
Race Width | 17.5mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 8.8kN | |
Dynamic Load Rating | 14.3kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 3203 | |
Model Number p | 3203 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 17mm | ||
Outside Diameter 40mm | ||
Race Width 17.5mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 8.8kN | ||
Dynamic Load Rating 14.3kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 3203 | ||
Model Number p 3203 | ||
- COO (Country of Origin):
- BG
SKF Ball Bearing, 14.3 kN Dynamic Load Rating, 40 mm Outside Diameter - 3203 A-2ZTN9/MT33
This ball bearing from SKF is designed for high performance and durability. With a double row angular contact design, steel construction, CN bearing clearance, and belonging to the 2 Light series, this bearing is ideal for demanding applications.
Features & Benefits
• Double row angular contact ball bearing ensures improved load support and axial stiffness
• Steel material provides durability and strength for long-lasting performance
• CN bearing clearance allows for smooth operation and reduced friction
• 2 Light series design offers a compact and lightweight solution for various applications
• Steel material provides durability and strength for long-lasting performance
• CN bearing clearance allows for smooth operation and reduced friction
• 2 Light series design offers a compact and lightweight solution for various applications
Applications
• Ideal for use in machinery and equipment requiring high load support
• Suitable for use in automotive applications for efficient performance
• Used in agricultural equipment for reliable and consistent operation
• Suitable for use in automotive applications for efficient performance
• Used in agricultural equipment for reliable and consistent operation
Can it support heavy loads?
Yes, this SKF ball bearing is designed to support heavy loads efficiently.
Will it provide smooth operation in high-speed applications?
Yes, the double row angular contact design ensures smooth and reliable operation even at high speeds.
Is it suitable for use in industrial machinery?
Yes, this ball bearing is suitable for industrial machinery due to its durable steel construction and high load rating.
Can it handle axial loads effectively?
Yes, the angular contact design of this bearing allows it to handle axial loads with precision and stability.
Is it easy to install and replace?
Yes, the design of this SKF ball bearing makes it easy to install and replace when needed.
