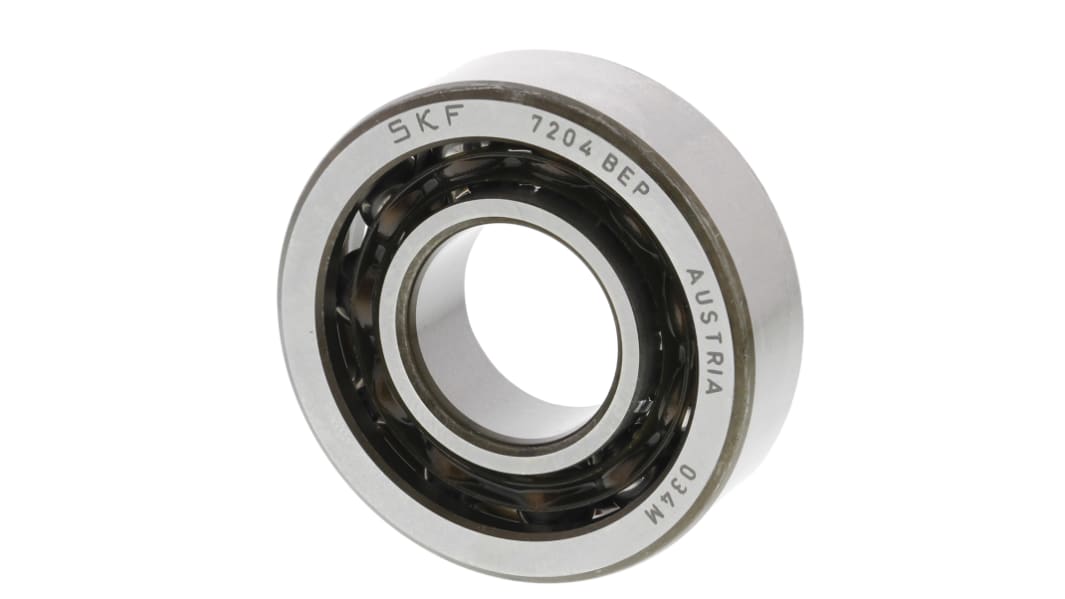

SKF 7204 BEP Single Row Angular Contact Ball Bearing- Open Type 20mm I.D, 47mm O.D
- RS Stock No.:
- 285-1541
- Mfr. Part No.:
- 7204 BEP
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£24.86
(exc. VAT)
£29.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
- Plus 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £24.86 |
5 - 9 | £23.90 |
10 - 24 | £23.37 |
25 + | £22.88 |
*price indicative
- RS Stock No.:
- 285-1541
- Mfr. Part No.:
- 7204 BEP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 47mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Static Load Rating | 7.65kN | |
Dynamic Load Rating | 13.3kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 7204 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Static Load Rating 7.65kN | ||
Dynamic Load Rating 13.3kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 7204 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- AT
SKF Ball Bearing, Plain-Race, Angular Contact, 20mm ID, 47mm OD - 7204 BEP
For modern machinery with high-performance requirements, choose this angular-contact bearing from SKF. Its precision design includes a cage with superior ball guidance to reduce friction and maximise the effects of lubricant. This lets the bearing run cooler and gives it improved speed acceleration, even in demanding environments. For a significantly longer service life, it's made from heat-treated, clean homogenised steel. As this versatile unit has raceways that are displaced to each other, it's able to accommodate combined radial and axial loads in one direction when mounted with another bearing.
• High dynamic load rating of 14kN makes it suitable for heavy-duty industrial use
• Robust reinforced nylon cage for reliable operation, even when frequently used
• Low levels of vibration to reduce the operational noise and temperature of equipment
• Light weight of 0.11kg adds minimal strain on machinery
• Robust reinforced nylon cage for reliable operation, even when frequently used
• Low levels of vibration to reduce the operational noise and temperature of equipment
• Light weight of 0.11kg adds minimal strain on machinery
Applications
• Gearboxes
• Lifts and hoisting equipment
• Conveyers and assembly lines
• Lifts and hoisting equipment
• Conveyers and assembly lines
Can I remanufacture this bearing?
Yes, most SKF bearings are suitable for remanufacturing, provided the damage to them isn't too severe. This environmentally-friendly solution means that up to 90% of the energy consumed in manufacturing a new bearing can be saved.
