SKF 7204 BECBP 1 Row Ball Bearing - 20 mm ID, 47 mm OD 14 mm Race Width
- RS Stock No.:
- 195-9560
- Mfr. Part No.:
- 7204 BECBP
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£48.69
(exc. VAT)
£58.43
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 24 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £48.69 |
| 5 - 9 | £46.75 |
| 10 - 24 | £45.76 |
| 25 + | £44.81 |
*price indicative
- RS Stock No.:
- 195-9560
- Mfr. Part No.:
- 7204 BECBP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 20mm | |
| Outside Diameter | 47mm | |
| Race Width | 14mm | |
| Cage Material | Non-Metallic | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 8.15kN | |
| Contact Angle | 40° | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 14.3kN | |
| Series | 2 Light | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 19000rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 14mm | ||
Cage Material Non-Metallic | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 8.15kN | ||
Contact Angle 40° | ||
Internal Clearance CN | ||
Dynamic Load Rating 14.3kN | ||
Series 2 Light | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 19000rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
Race Type Plain | ||
RoHS Status: Exempt

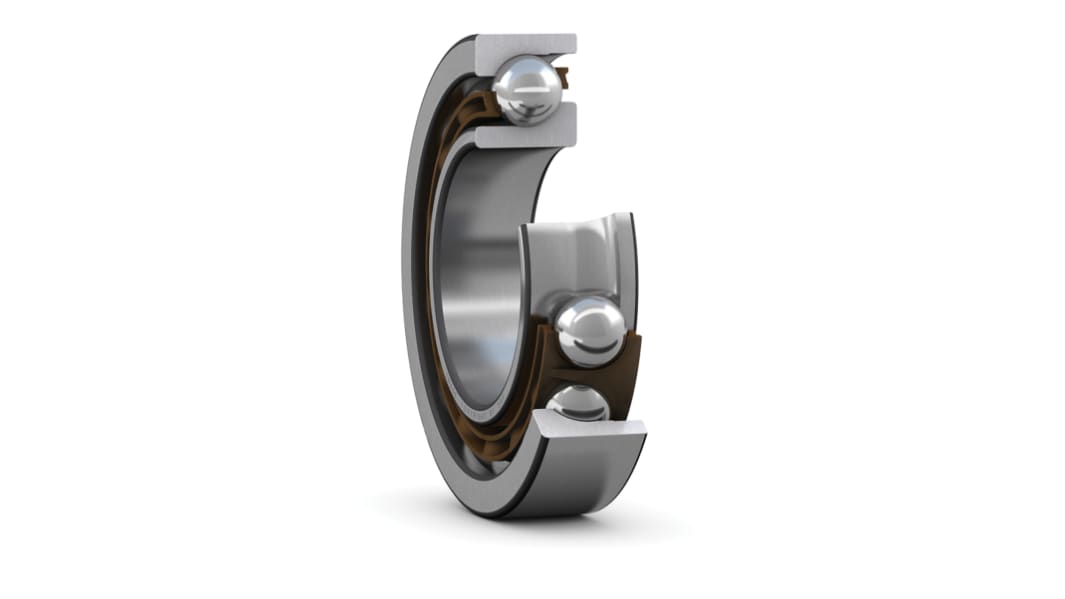

SKF Ball Bearing, Angular Contact Bearing Type, Plain Race, 20mm ID, 47mm OD - 7204 BECBP
Looking for a bearing that's a cool operator? Use this plain-race angular contact ball bearing from SKF. Its optimised design means operating heat is minimised, even at high rotational speeds, so you benefit from an extended service life. You can be sure your pre-defined clearance or preload will stay constant over time, thanks to the unit's unique heat treatment that provides maximum hardness and resistance to wear. Superior quality rolling elements ensure spot-on running accuracy, which means low noise generation and vibration. This bearing doesn't stress about axial overloading, as the ground transition between its raceway and shoulder cuts down on contact and edge pressure.
Features & Benefits
• High dynamic load carrying capacity of up to 14.3kN for heavy-duty tasks
• Efficient use of lubrication, so there's less need for regular greasing
• Increases machine uptime, for plant efficiency
• Comes pre-greased, making it conveniently ready for immediate use
Applications
• Screw compressors
• Grinding machines
• High-speed turbochargers
• Machine tool spindles
What material is this ball bearing made from?
This ball bearing is made from clean homogenised steel, for superior performance in demanding or contaminated operating conditions.
