SKF 7320 BEGAF Single Row Angular Contact Ball Bearing- Open Type 100mm I.D, 215mm O.D
- RS Stock No.:
- 208-0319
- Mfr. Part No.:
- 7320 BEGAF
- Brand:
- SKF
Subtotal (1 unit)*
£1,334.69
(exc. VAT)
£1,601.63
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,334.69 |
*price indicative
- RS Stock No.:
- 208-0319
- Mfr. Part No.:
- 7320 BEGAF
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 100mm | |
Outside Diameter | 215mm | |
Race Width | 47mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 190kN | |
Dynamic Load Rating | 203kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Race Material | Steel | |
Partial Bearing Code | 7320 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 100mm | ||
Outside Diameter 215mm | ||
Race Width 47mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 190kN | ||
Dynamic Load Rating 203kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Race Material Steel | ||
Partial Bearing Code 7320 | ||
- COO (Country of Origin):
- DE

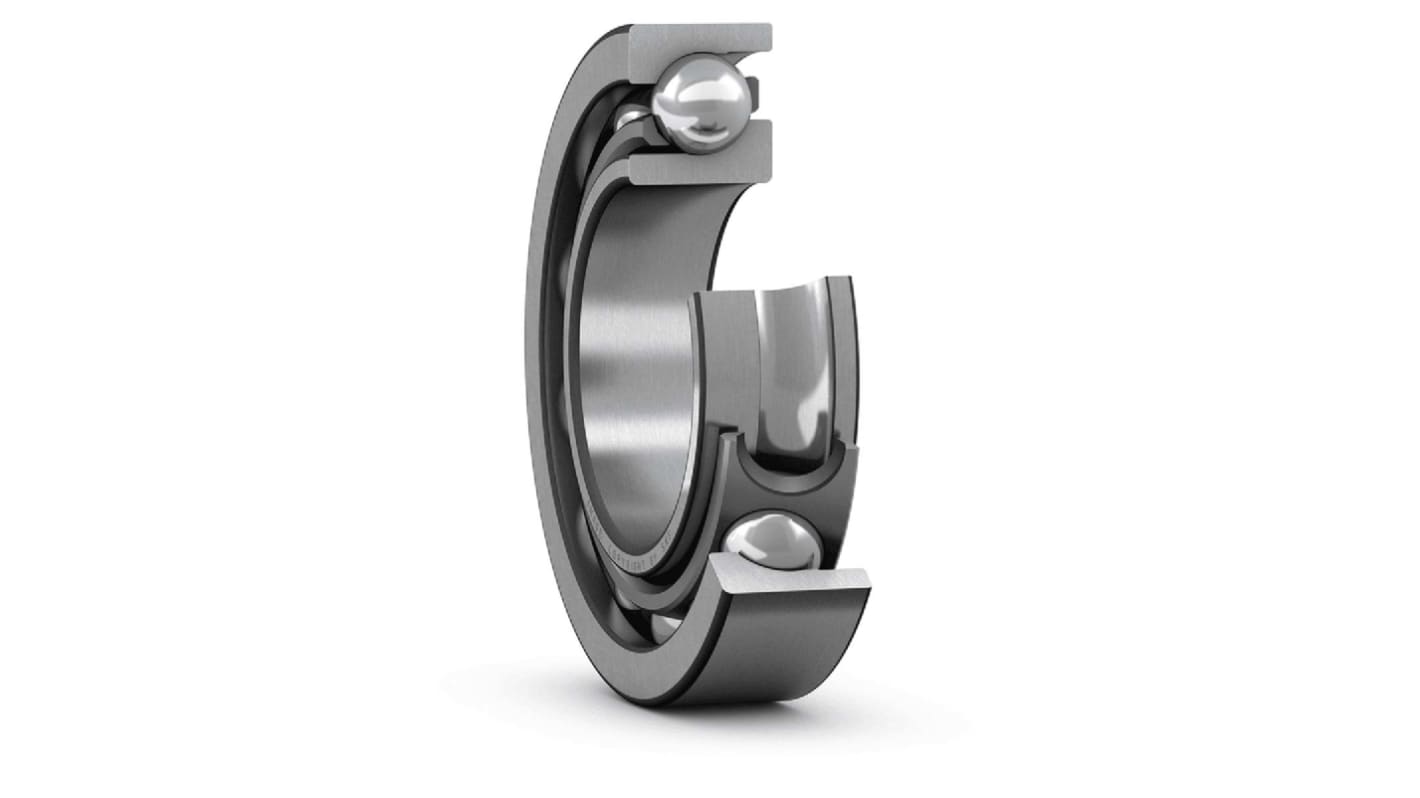

SKF Ball Bearing - 100 mm ID, 215 mm OD - 7320 BEGAF
Use this angular contact ball bearing from SKF when you need to support a high axial load. In this unit, the inner and outer raceways are displaced relative to each other in the direction of the bearing axis, which allows it to endure a combined radial and axial load. The bearing's ability to carry axial load gets higher as the contact angle of the axial load increases, which makes it a resilient option. This bearing has a versatile race width of 47 mm and is ideal for use with high-speed machinery.
• Open end type, so it can be greased as needed
• Single-row design offers a range of uses and offers a long service life
• Cylindrical bore type, for ease of installation
• Can be used at higher operational speeds than other types of bearing
• Single-row design offers a range of uses and offers a long service life
• Cylindrical bore type, for ease of installation
• Can be used at higher operational speeds than other types of bearing
Application Information
• Wind turbines
• Industrial pumps
• Gearboxes, electric motors and clutches in cars
• Industrial pumps
• Gearboxes, electric motors and clutches in cars
Are angular contact bearings noisy?
No, they're actually very quiet in operation. Because angular contact bearings compensate internally for angular misalignment and can accommodate axial shaft expansion, they're able to run quietly and coolly, with a minimal amount of friction.
