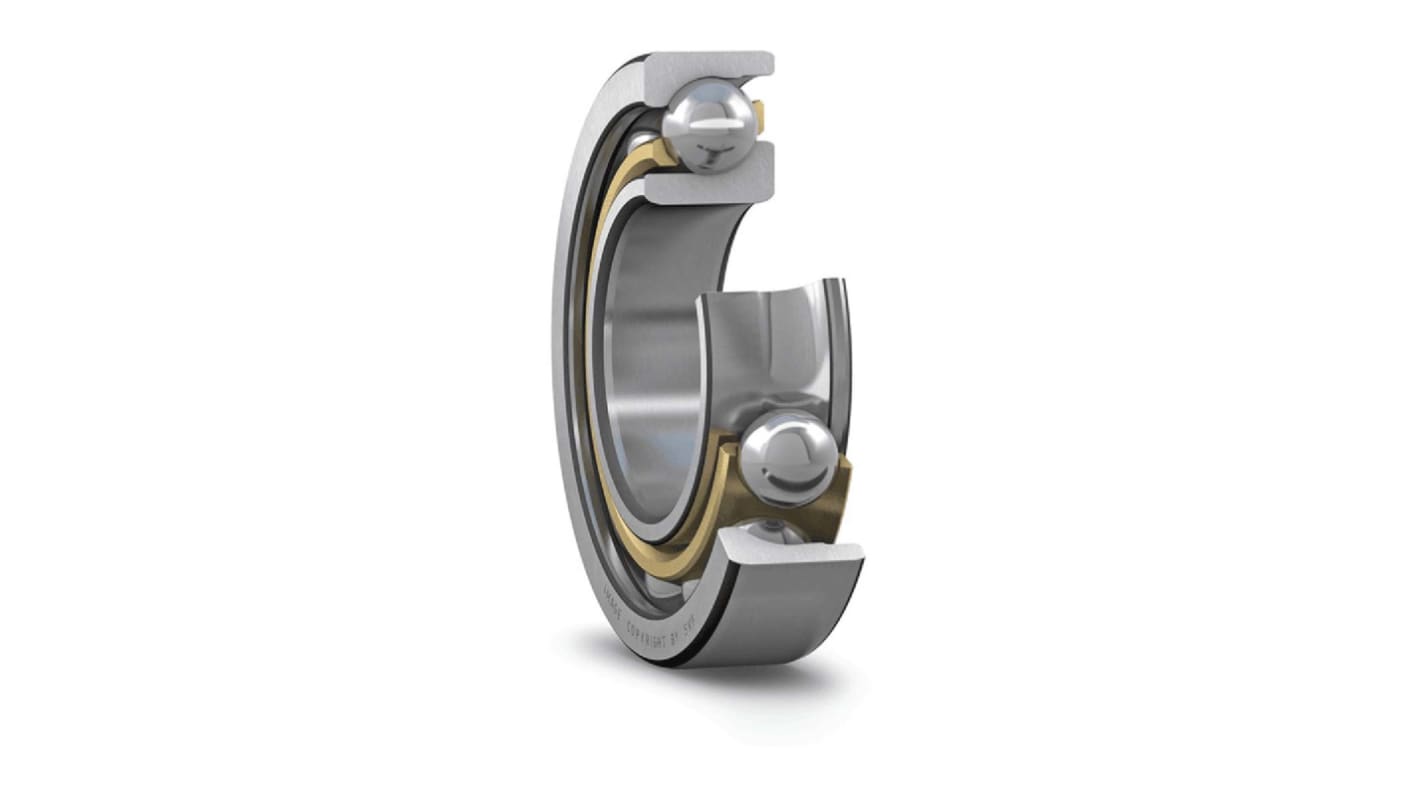

SKF 7320 BECBM Single Row Angular Contact Ball Bearing- Open Type 100mm I.D, 215mm O.D
- RS Stock No.:
- 208-0316
- Mfr. Part No.:
- 7320 BECBM
- Brand:
- SKF
Subtotal (1 unit)*
£977.02
(exc. VAT)
£1,172.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £977.02 |
*price indicative
- RS Stock No.:
- 208-0316
- Mfr. Part No.:
- 7320 BECBM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 100mm | |
Outside Diameter | 215mm | |
Race Width | 47mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Brass | |
Number of Rows | 1 | |
Static Load Rating | 208kN | |
Dynamic Load Rating | 216kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Race Material | Steel | |
Partial Bearing Code | 7320 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 100mm | ||
Outside Diameter 215mm | ||
Race Width 47mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Brass | ||
Number of Rows 1 | ||
Static Load Rating 208kN | ||
Dynamic Load Rating 216kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Race Material Steel | ||
Partial Bearing Code 7320 | ||
- COO (Country of Origin):
- DE
SKF Ball Bearing - 100 mm ID, 215 mm OD - 7320 BECBM
Use this angular ball bearing from SKF to support heavier or combined loads. It has a race width of 47 mm and is designed to handle both radial and axial loads acting simultaneously. Depending on the contact angle, it can also handle heavier thrust loads. The bearing's axial load carrying capacity increases in line with the contact angle, which means it can handle heavy-duty tasks efficiently and rapidly. Because of this, it's particularly well-suited to high-speed applications.
• Open end type allows for simple regreasing
• Single-row design needs minimal maintenance
• Cylindrical bore type is straightforward to fit
• Angular contact bearings offer better endurance at high speeds
• Single-row design needs minimal maintenance
• Cylindrical bore type is straightforward to fit
• Angular contact bearings offer better endurance at high speeds
Application Information
• Auto workshops, for example in gearboxes, engines and clutches
• Wind turbines
• Pumps
• Machine handling and steel mills
• Wind turbines
• Pumps
• Machine handling and steel mills
How are angular contact bearings different from other ball bearings?
Angular contact bearings have an asymmetrical design, which lets them support loads where the line of application is not at a right angle to the bearing axis. This means they're suited for a wide range of different loads, including torque loads and radial loads.
