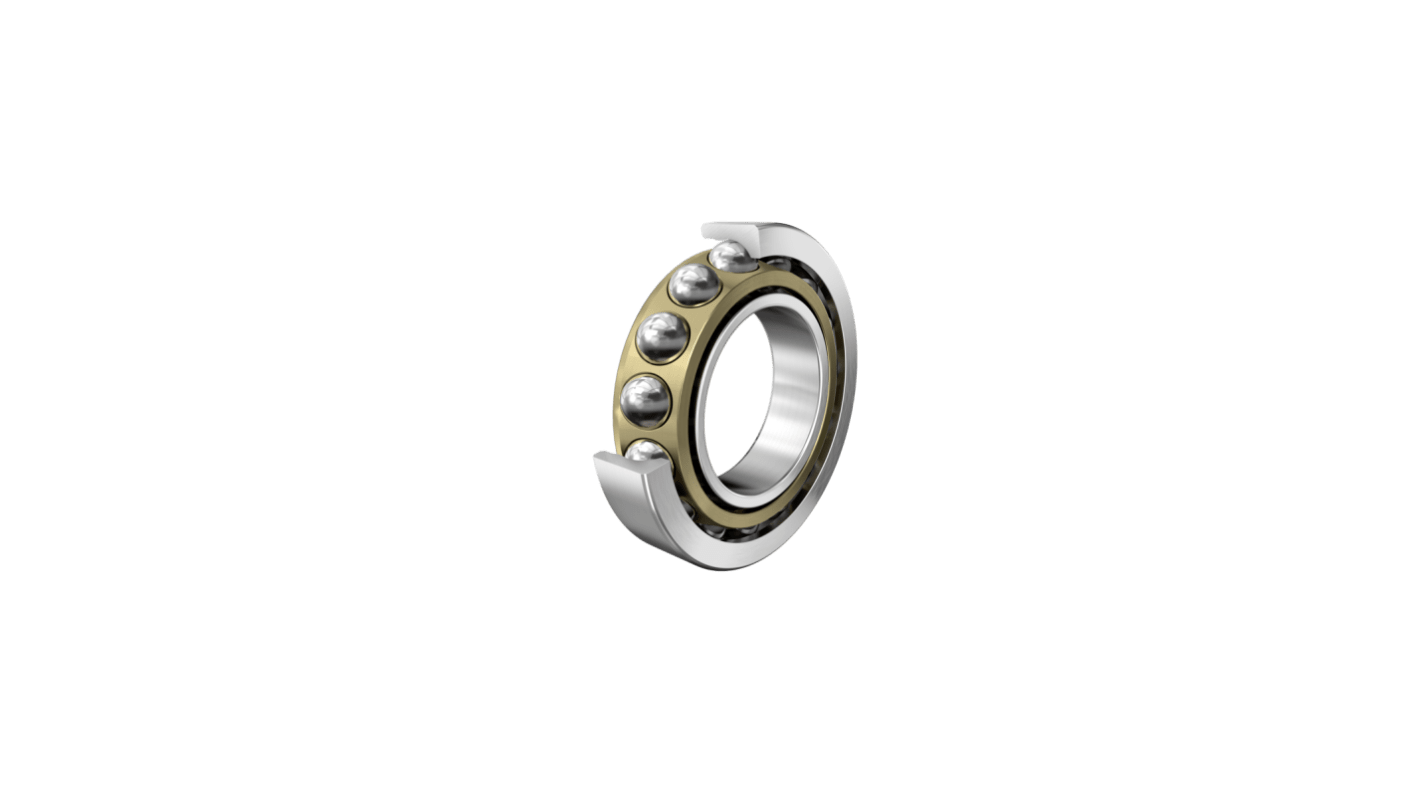

FAG 7320-B-XL-MP-UA 1 Row Angular Contact Ball Bearing - 100 mm ID, 215 mm OD 47 mm Race Width
- RS Stock No.:
- 312-023
- Mfr. Part No.:
- 7320-B-XL-MP-UA
- Brand:
- FAG
Subtotal (1 unit)*
£925.84
(exc. VAT)
£1,111.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £925.84 |
*price indicative
- RS Stock No.:
- 312-023
- Mfr. Part No.:
- 7320-B-XL-MP-UA
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 100 mm | |
| Outside Diameter | 215 mm | |
| Race Width | 47mm | |
| Cage Material | Solid Brass | |
| End Type | Unsealed | |
| Number of Rows | 1 | |
| Internal Clearance | UA Bearing Set with Small Axial Internal Clearance | |
| Contact Angle | 40° | |
| Static Load Rating | 197000N | |
| Dynamic Load Rating | 214000N | |
| Standards/Approvals | RoHS Exempt | |
| Series | 73-B-XL-MP | |
| Limiting Speed | 5300rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Flange Outside Diameter | 215mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 100 mm | ||
Outside Diameter 215 mm | ||
Race Width 47mm | ||
Cage Material Solid Brass | ||
End Type Unsealed | ||
Number of Rows 1 | ||
Internal Clearance UA Bearing Set with Small Axial Internal Clearance | ||
Contact Angle 40° | ||
Static Load Rating 197000N | ||
Dynamic Load Rating 214000N | ||
Standards/Approvals RoHS Exempt | ||
Series 73-B-XL-MP | ||
Limiting Speed 5300rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
Flange Outside Diameter 215mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Angular Contact Ball Bearing epitomises precision engineering, catering to various demanding applications. Designed for robustness, the product features a solid brass cage that ensures optimal ball guidance and longevity even under challenging conditions. With an advanced design variant and a standardised tolerance class, users can expect enhanced performance reliability. This bearing operates efficiently at a range of temperatures, making it suitable for industrial environments where thermal fluctuations are prevalent.
Operating temperature range accommodates diverse environmental conditions
Solid brass cage provides excellent strength and durability
Fatigue load limit improves safety and reliability in operation
Carefully engineered for harmonious performance with minimal vibration
Allows for flexibility in grease or oil lubrication methods
