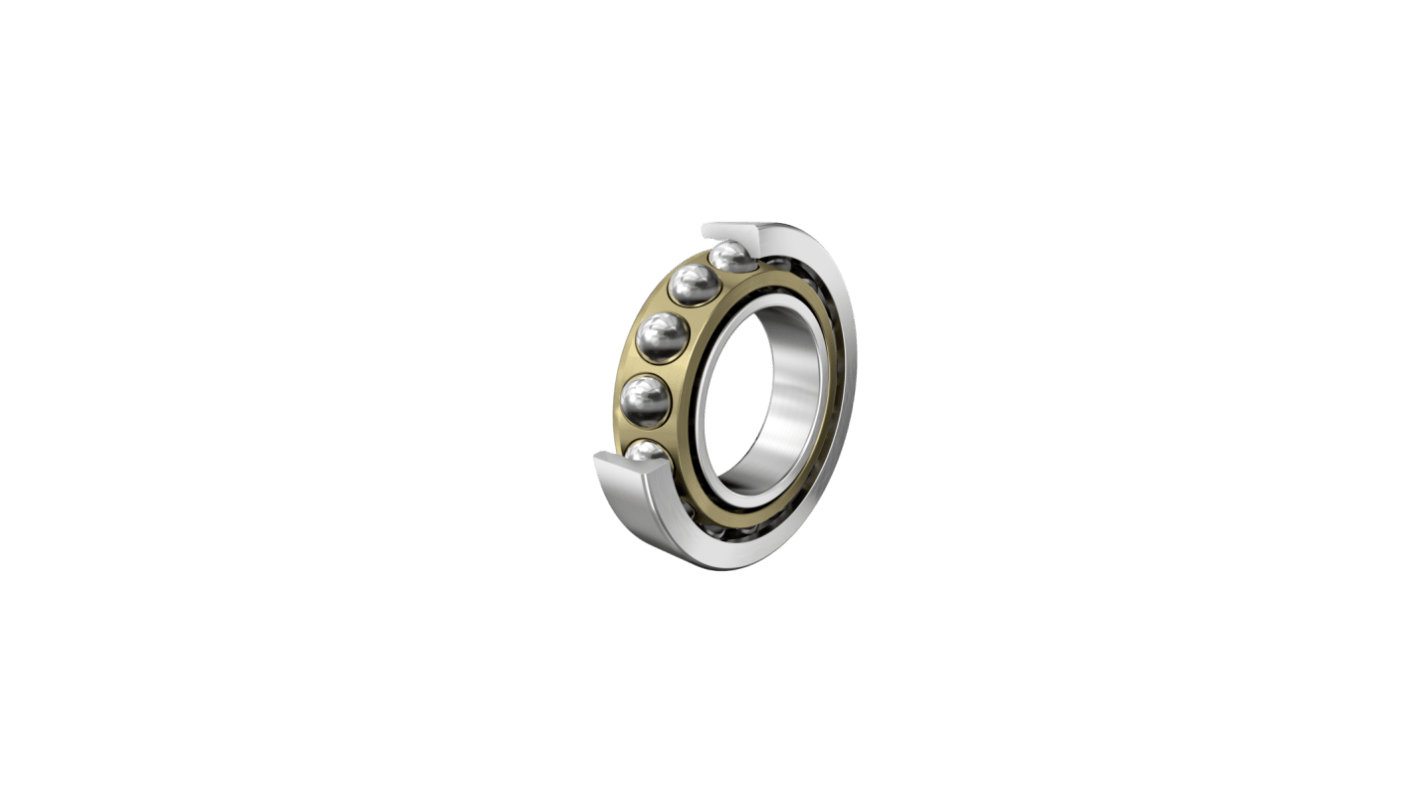

FAG 7219-B-XL-MP-UA 1 Row Angular Contact Ball Bearing - 95 mm ID, 170 mm OD 32 mm Race Width
- RS Stock No.:
- 312-011
- Mfr. Part No.:
- 7219-B-XL-MP-UA
- Brand:
- FAG
Subtotal (1 unit)*
£422.26
(exc. VAT)
£506.71
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £422.26 |
*price indicative
- RS Stock No.:
- 312-011
- Mfr. Part No.:
- 7219-B-XL-MP-UA
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 95 mm | |
| Product Type | Angular Contact Ball Bearing | |
| Outside Diameter | 170 mm | |
| Race Width | 32mm | |
| Cage Material | Solid Brass | |
| End Type | Unsealed | |
| Number of Rows | 1 | |
| Static Load Rating | 106000N | |
| Internal Clearance | Small Axial Internal Clearance | |
| Contact Angle | 40° | |
| Dynamic Load Rating | 123000N | |
| Standards/Approvals | RoHS Exempt | |
| Series | 72-B-XL-MP | |
| Limiting Speed | 6700rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Flange Outside Diameter | 170mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 95 mm | ||
Product Type Angular Contact Ball Bearing | ||
Outside Diameter 170 mm | ||
Race Width 32mm | ||
Cage Material Solid Brass | ||
End Type Unsealed | ||
Number of Rows 1 | ||
Static Load Rating 106000N | ||
Internal Clearance Small Axial Internal Clearance | ||
Contact Angle 40° | ||
Dynamic Load Rating 123000N | ||
Standards/Approvals RoHS Exempt | ||
Series 72-B-XL-MP | ||
Limiting Speed 6700rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
Flange Outside Diameter 170mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Angular Contact Ball Bearing is designed for high precision applications, ensuring optimal performance in demanding environments. Tailored for enhanced durability, its solid brass cage not only withstands the test of time but also ensures smooth operation under high loads. The product showcases advanced engineering, with features designed for stability and reliability, making it ideal for various industrial applications.
Single row design for efficient load distribution
X life technology ensures longer operational life
Normal tolerance class for reliable performance
Optimised for high limiting speeds in various applications
Wide operating temperature range for versatility in usage
