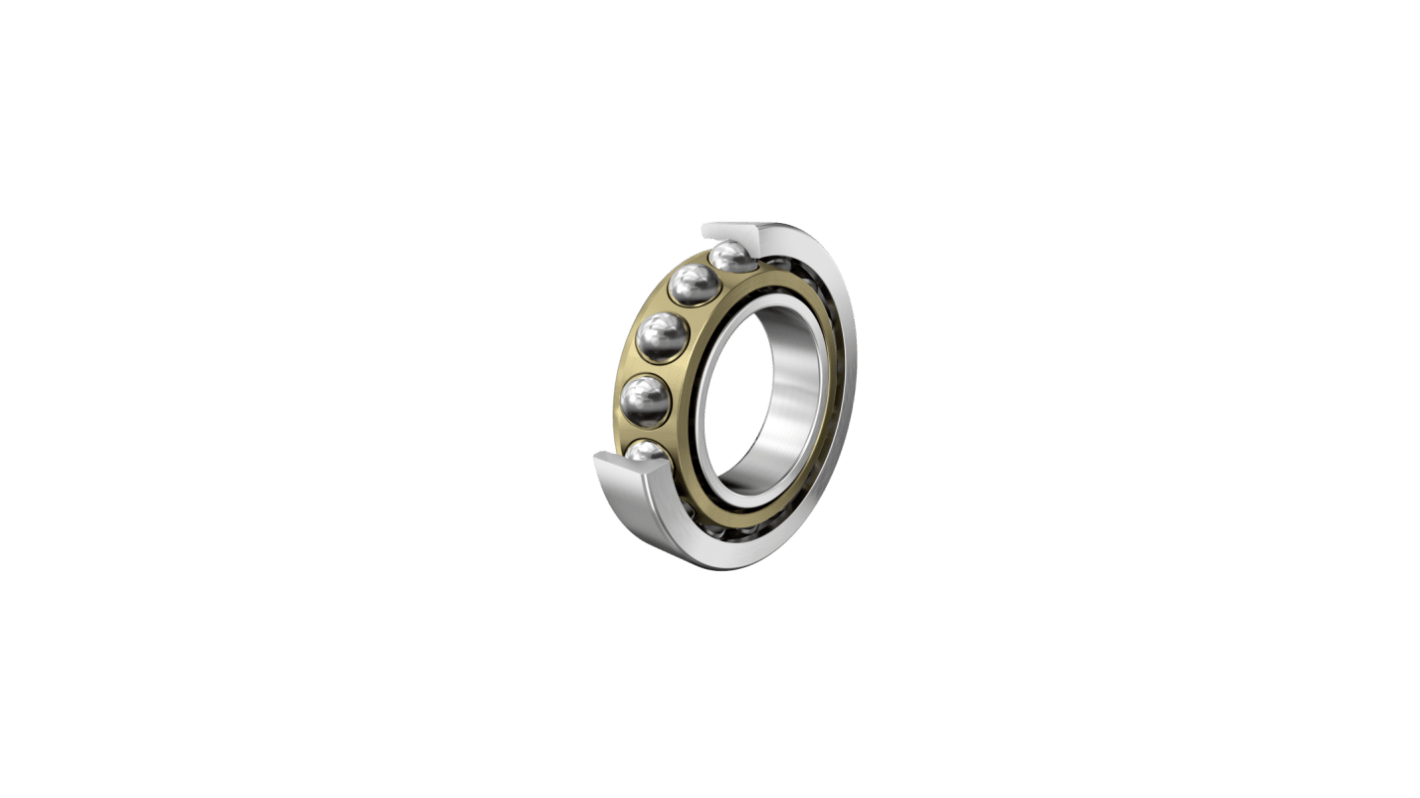

FAG 7222-B-XL-MP-UA 1 Row Angular Contact Ball Bearing - 110 mm ID, 200 mm OD 38 mm Race Width
- RS Stock No.:
- 312-898
- Mfr. Part No.:
- 7222-B-XL-MP-UA
- Brand:
- FAG
Subtotal (1 unit)*
£587.51
(exc. VAT)
£705.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £587.51 |
*price indicative
- RS Stock No.:
- 312-898
- Mfr. Part No.:
- 7222-B-XL-MP-UA
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 110 mm | |
| Outside Diameter | 200 mm | |
| Race Width | 38mm | |
| Cage Material | Solid Brass | |
| End Type | Unsealed | |
| Number of Rows | 1 | |
| Contact Angle | 40° | |
| Static Load Rating | 154000N | |
| Internal Clearance | Small Axial Internal Clearance | |
| Dynamic Load Rating | 167000N | |
| Standards/Approvals | RoHS Exempt | |
| Series | 72-B-XL-MP | |
| Limiting Speed | 5600rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Flange Outside Diameter | 200mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 110 mm | ||
Outside Diameter 200 mm | ||
Race Width 38mm | ||
Cage Material Solid Brass | ||
End Type Unsealed | ||
Number of Rows 1 | ||
Contact Angle 40° | ||
Static Load Rating 154000N | ||
Internal Clearance Small Axial Internal Clearance | ||
Dynamic Load Rating 167000N | ||
Standards/Approvals RoHS Exempt | ||
Series 72-B-XL-MP | ||
Limiting Speed 5600rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
Flange Outside Diameter 200mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Angular Contact Ball Bearing is engineered for exceptional performance and reliability, tailored for precision applications. Designed with a solid brass cage, it supports high dynamic loads while ensuring smooth operation. The innovative design and advanced materials provide stability at elevated temperatures, making it ideal for demanding environments. This product is perfect for applications requiring low friction and high rotational speed while maintaining robust load capacities.
Engineered with a solid brass cage for superior durability
Supports high limiting speeds to enhance operational efficiency
Compatible with paired fittings for enhanced load bearing capabilities
Precision engineering ensures optimal performance in precision applications
Offers detailed dimension guidelines for easy installation and integration
