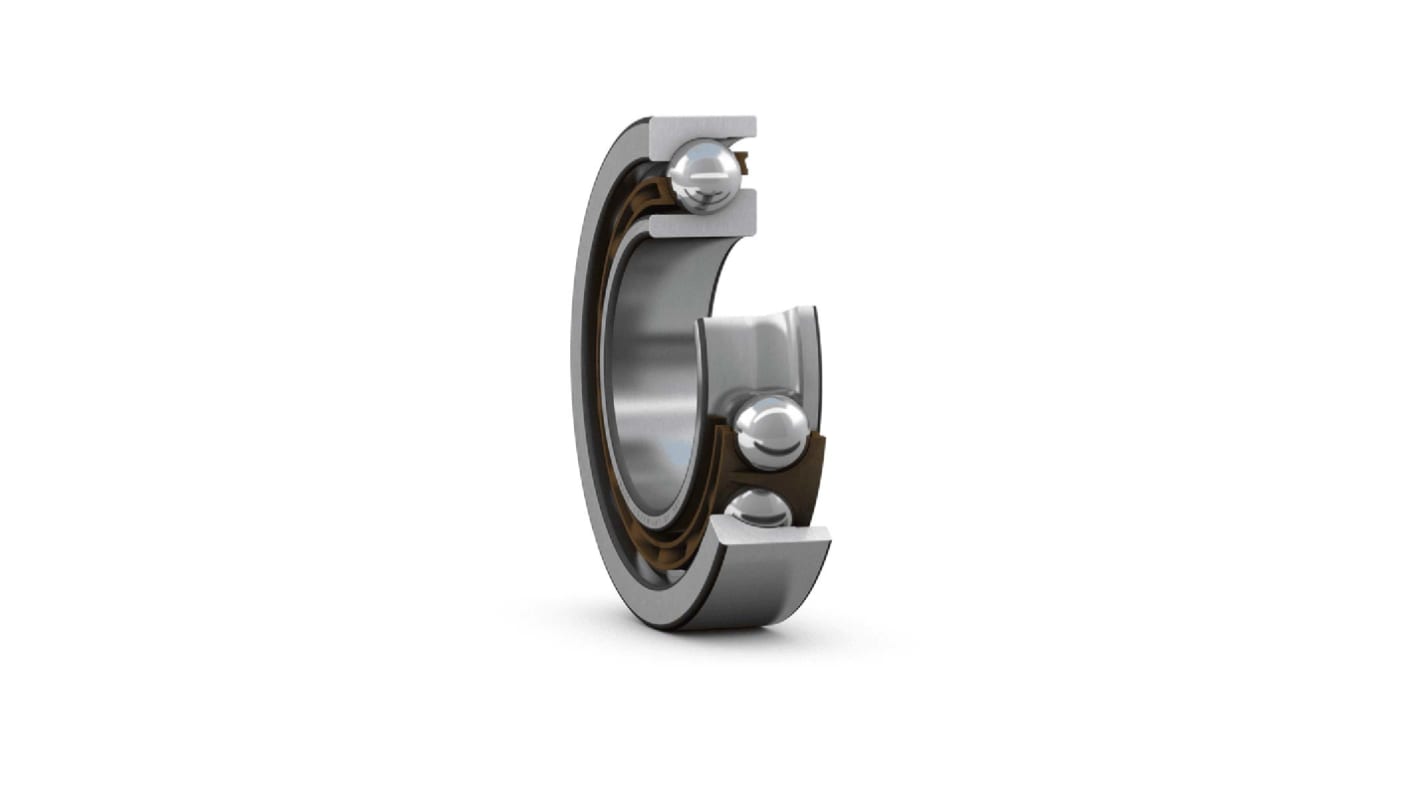

SKF 7320 BECBP Single Row Angular Contact Ball Bearing- Open Type 100mm I.D, 215mm O.D
- RS Stock No.:
- 208-0318
- Mfr. Part No.:
- 7320 BECBP
- Brand:
- SKF
Subtotal (1 unit)*
£903.89
(exc. VAT)
£1,084.67
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £903.89 |
*price indicative
- RS Stock No.:
- 208-0318
- Mfr. Part No.:
- 7320 BECBP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 100mm | |
Outside Diameter | 215mm | |
Race Width | 47mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Static Load Rating | 208kN | |
Dynamic Load Rating | 216kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Race Material | Steel | |
Partial Bearing Code | 7320 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 100mm | ||
Outside Diameter 215mm | ||
Race Width 47mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Static Load Rating 208kN | ||
Dynamic Load Rating 216kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Race Material Steel | ||
Partial Bearing Code 7320 | ||
- COO (Country of Origin):
- DE
SKF Ball Bearing - 100 mm ID, 215 mm OD - 7320 BECBP
When your high-speed machinery needs a high degree of accuracy and resilience, choose this angular ball bearing from SKF. It's designed to accommodate a load at an angle to the bearing axis and can handle a combination of radial and axial loads acting at the same time. As the contact angle increases, so does the bearing's axial load carrying capacity. That means it is the ideal ball bearing for supporting high axial forces.
• Race width of 47 mm for versatile application
• Open end type allows greasing as needed
• Single-row design is the most widely used type, allowing versatile use
• Cylindrical bore type is easy to fit
• Open end type allows greasing as needed
• Single-row design is the most widely used type, allowing versatile use
• Cylindrical bore type is easy to fit
Application Information
• Gearboxes and clutches in cars and other vehicles
• Wind turbines
• Steel mills
• Pumps
• Wind turbines
• Steel mills
• Pumps
What kind of loads can this type of angular contact bearing support?
Angular contact bearings from SKF are able to support heavy thrust loads as well as moderate radial loads.
How do I find the contact angle?
The contact angle consists of two intersecting lines – one measured from the point of contact between the ball and the ring and the other reaching out from the axis of rotation to the bearing.
