SKF 3205 A-2ZTN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Shielded 25mm I.D, 52mm O.D
- RS Stock No.:
- 207-9860
- Mfr. Part No.:
- 3205 A-2ZTN9/MT33
- Brand:
- SKF
Subtotal (1 unit)*
£49.85
(exc. VAT)
£59.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £49.85 |
*price indicative
- RS Stock No.:
- 207-9860
- Mfr. Part No.:
- 3205 A-2ZTN9/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 20.6mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 15.3kN | |
Dynamic Load Rating | 22kN | |
Bore Type | Parallel | |
Clearance Code | CN | |
Bearing Series | 2 Light | |
Model Number p | 3205 | |
Race Type | Plain | |
Partial Bearing Code | 3205 | |
Race Material | Steel | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 20.6mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 15.3kN | ||
Dynamic Load Rating 22kN | ||
Bore Type Parallel | ||
Clearance Code CN | ||
Bearing Series 2 Light | ||
Model Number p 3205 | ||
Race Type Plain | ||
Partial Bearing Code 3205 | ||
Race Material Steel | ||

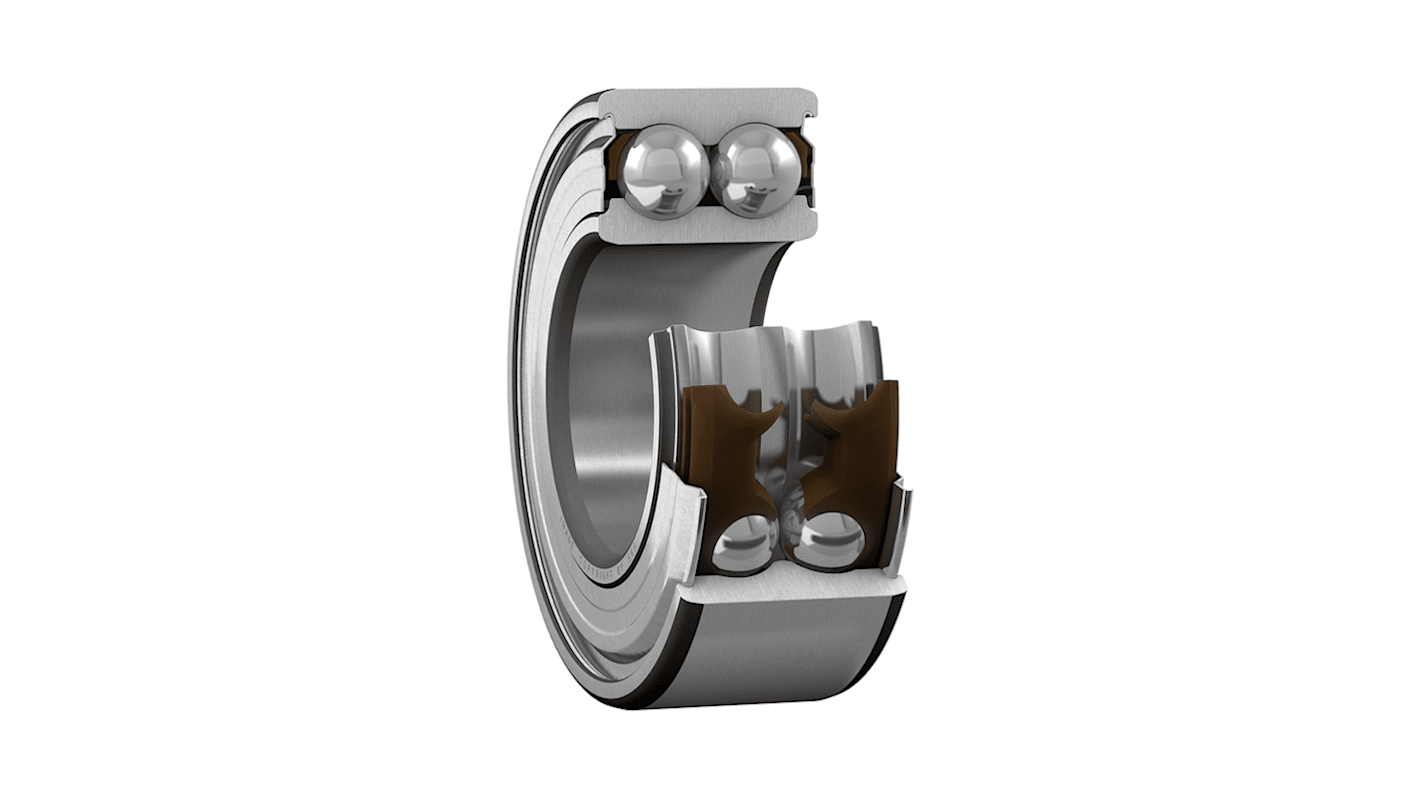

SKF Ball Bearing, Angular-Contact Bearing Type, Double Row, 25mm ID, 52mm OD - 3205 A-2ZTN9/MT33
Double up on rotating components while saving space with this angular contact bearing from SKF. Its double-row construction does the same job as two angular bearings mounted back-to-back, which helps you to downsize equipment and optimise efficiency. Seals on each end of the unit cut down on the chance of airborne contaminants interfering with the rolling parts. As these seals are non-contact, there's less chance of heat buildup, which extends the bearing's lifespan. Thanks to its efficient use of lubrication, you can rest assured of its light carbon footprint. Choose this unit to support combined radial and axial loads rotating in both a forward and backward direction.
Features & Benefits
• Supplied lubricated with bearing grease, so it's ready to install
• Durable bearing steel construction for longevity in harsh industrial settings
• Optimised internal geometry for quiet operation and reduced noise pollution
• Durable bearing steel construction for longevity in harsh industrial settings
• Optimised internal geometry for quiet operation and reduced noise pollution
Applications
• Textile industry
• Paper mills
• Hospitals and medical centres
• Aerospace technology
• Paper mills
• Hospitals and medical centres
• Aerospace technology
How heavy is this ball bearing?
Thanks to its light weight of 180g, this bearing adds minimal mass to your equipment.
