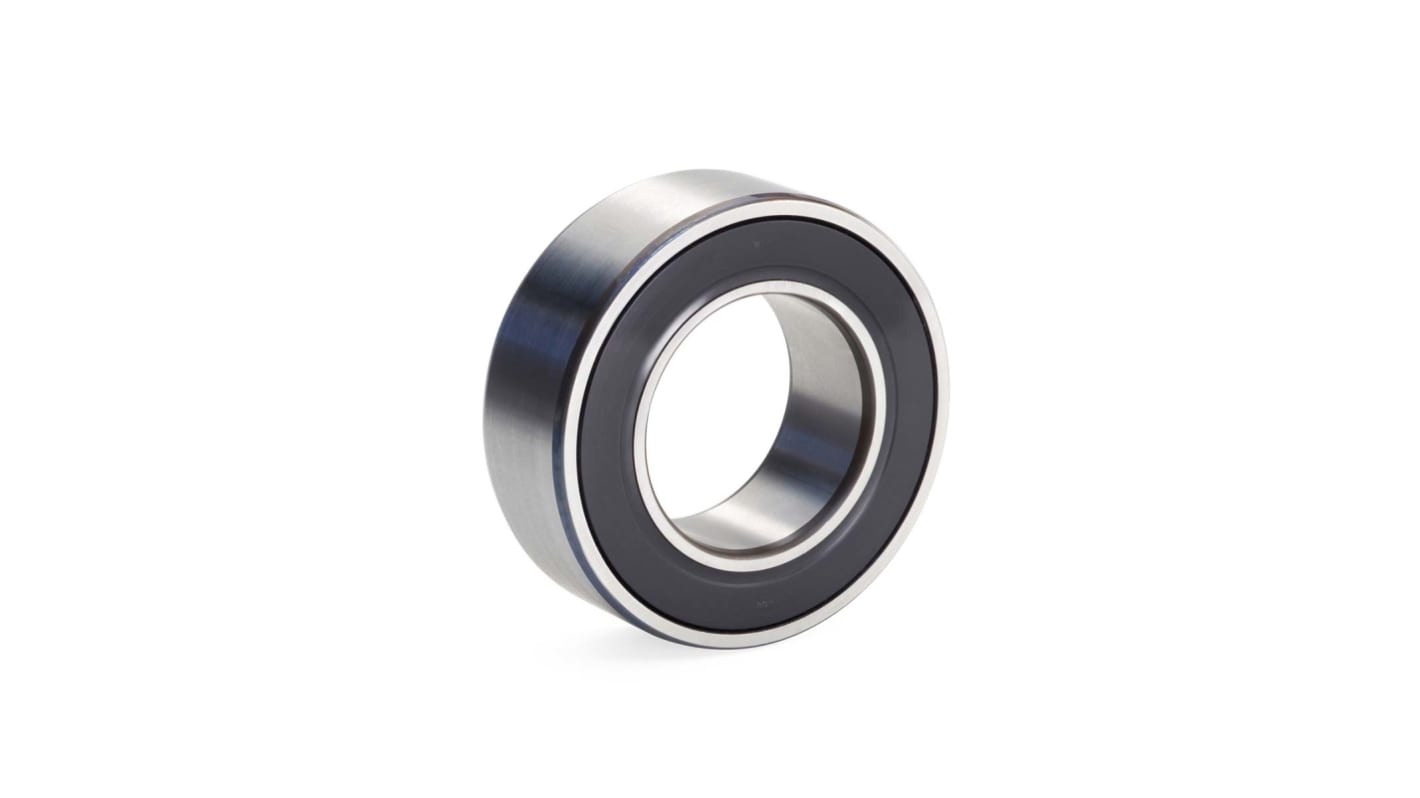

SKF 3205 A-2RS1 Double Row Angular Contact Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D
- RS Stock No.:
- 195-9592
- Mfr. Part No.:
- 3205 A-2RS1
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£63.94
(exc. VAT)
£76.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £63.94 |
5 - 9 | £61.39 |
10 - 24 | £60.10 |
25 + | £58.82 |
*price indicative
- RS Stock No.:
- 195-9592
- Mfr. Part No.:
- 3205 A-2RS1
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 20.6mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 2 | |
Static Load Rating | 15.3kN | |
Dynamic Load Rating | 22kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 3205 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 20.6mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 2 | ||
Static Load Rating 15.3kN | ||
Dynamic Load Rating 22kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 3205 | ||
RoHS Status: Exempt
SKF Double-Row Angular-Contact Ball Bearing, 25mm ID, 52mm OD - 3205 A-2RS1
Save space on your axial shaft with this double-row angular contact bearing from SKF. It accommodates both radial and axial loads in either direction and you can use it in place of two back-to-back single-row bearings with angular contacts. The unit is manufactured from ultra-clean steel, which gives it a higher rotational speed and greater load-carrying capacity. Its seals reduce the need for maintenance and re-lubrication, so you benefit from longer machine uptime and enhanced productivity.
• No need to dispose of used grease for a lighter carbon footprint
• Reduced noise and vibration levels for smoother machine performance and quieter operation
• Low-friction seals keep the bearing cool for improved performance
• Crown cage design that provides better ball guidance and lubrication for a higher speed rating
• Reduced noise and vibration levels for smoother machine performance and quieter operation
• Low-friction seals keep the bearing cool for improved performance
• Crown cage design that provides better ball guidance and lubrication for a higher speed rating
Applications
• Transmission systems
• Material handling
• Fans and blowers
• Gear systems
• Material handling
• Fans and blowers
• Gear systems
Can I use this bearing in a screw compressor?
Yes, you can use this bearing in a screw compressor. It's well-suited to applications where there are frequent rapid starts and stops, together with contaminated or inadequate lubrication conditions. Its combination of robust material and design offers up to 300% improvement in service life.
