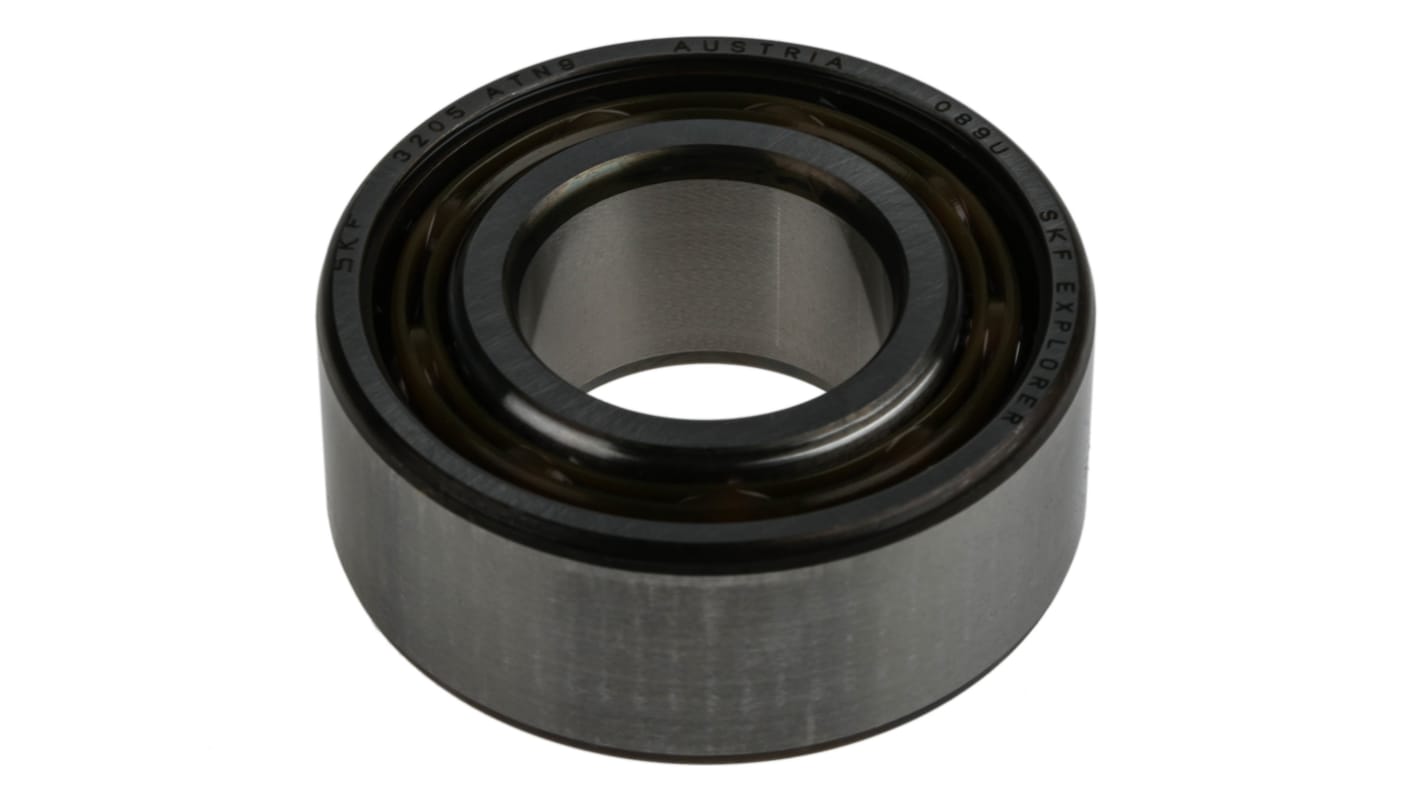

SKF 3205 ATN9 Double Row Angular Contact Ball Bearing- Open Type 25mm I.D, 52mm O.D
- RS Stock No.:
- 195-9527
- Mfr. Part No.:
- 3205 ATN9
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£44.11
(exc. VAT)
£52.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £44.11 |
5 - 9 | £42.33 |
10 - 24 | £41.48 |
25 + | £40.59 |
*price indicative
- RS Stock No.:
- 195-9527
- Mfr. Part No.:
- 3205 ATN9
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 20.6mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 15.3kN | |
Dynamic Load Rating | 22kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 3205 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 20.6mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 15.3kN | ||
Dynamic Load Rating 22kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 3205 | ||
RoHS Status: Exempt
SKF Angular-Contact Ball Bearing, 25mm ID, 52mm OD - 3205 ATN9
To ensure smooth rotations, this angular-contact ball bearing from SKF features two sets of rolling elements in plain raceways. A robust and durable glass-fibre-reinforced PA66 (polyamide 66) cage holds the balls to keep them secured. Thanks to this rigid arrangement, the unit can accommodate tilting movements without risk of mechanical breakdown. It supports both axial and radial loads, making it a versatile choice for high-speed rotations in multiple directions. As it's open-ended, grease can flow easily through the workings. This design also lets you easily top up the lubrication to boost performance.
• Outside diameter of 52mm to fit on large shafts
• Limiting speed of 12,000r/min (rotations per minute) to work with heavy-duty equipment without friction
• Steel construction resists impact and corrosion for added durability
• 22kN (kilonewtons) dynamic load rating keeps it stable in moving applications
• Limiting speed of 12,000r/min (rotations per minute) to work with heavy-duty equipment without friction
• Steel construction resists impact and corrosion for added durability
• 22kN (kilonewtons) dynamic load rating keeps it stable in moving applications
Applications
• Medical equipment
• Gearboxes
• Power generation facilities
• Transmission systems
• Gearboxes
• Power generation facilities
• Transmission systems
Where should I use a double-row angular contact bearing?
As it comes with two parallel rolling elements, this double-row ball bearing is suitable for use in situations where mounting two single-row bearings would take up too much axial space.
