SKF 3205-A-2RS1TN9/MT33 2 Row Ball Bearing - 25 mm ID, 52 mm OD 20.6 mm Race Width
- RS Stock No.:
- 285-1692
- Mfr. Part No.:
- 3205-A-2RS1TN9/MT33
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£52.71
(exc. VAT)
£63.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £52.71 |
| 5 - 9 | £50.59 |
| 10 - 24 | £49.53 |
| 25 + | £48.50 |
*price indicative
- RS Stock No.:
- 285-1692
- Mfr. Part No.:
- 3205-A-2RS1TN9/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 25 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 52 mm | |
| Race Width | 20.6mm | |
| Ball Material | Steel | |
| Cage Material | Non-Metallic | |
| End Type | Sealed | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Static Load Rating | 15.3kN | |
| Contact Angle | 30° | |
| Dynamic Load Rating | 22kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 8500rpm | |
| Distrelec Product Id | 30423630 | |
| Race Type | Plain | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 25 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 52 mm | ||
Race Width 20.6mm | ||
Ball Material Steel | ||
Cage Material Non-Metallic | ||
End Type Sealed | ||
Number of Rows 2 | ||
Internal Clearance CN | ||
Static Load Rating 15.3kN | ||
Contact Angle 30° | ||
Dynamic Load Rating 22kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 8500rpm | ||
Distrelec Product Id 30423630 | ||
Race Type Plain | ||
Bearing Type Double Row Angular Contact Ball | ||

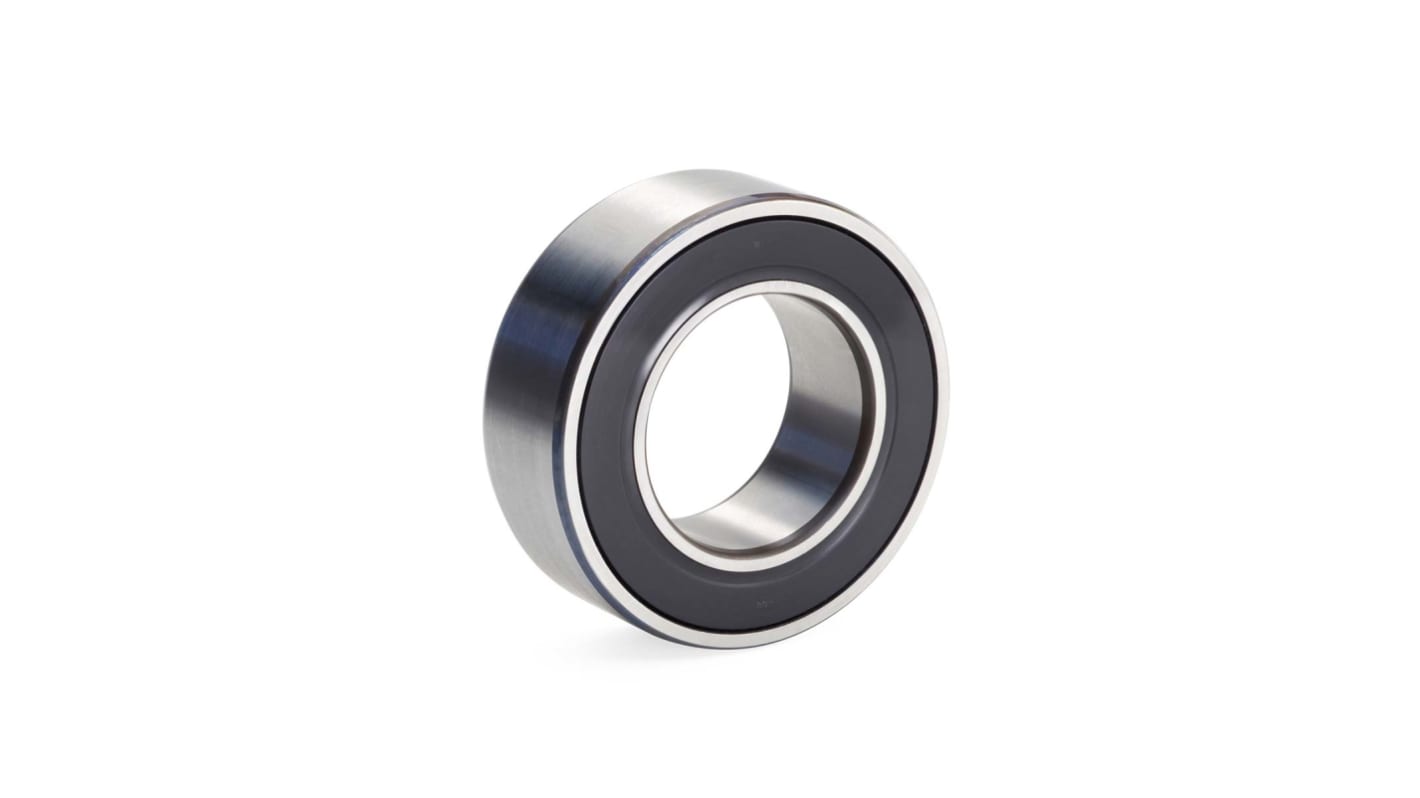

SKF Plain Angular Contact Ball Bearing, 25 mm ID - 3205-A-2RS1TN9/MT33
When you want increased power density in a compact unit, turn to this angular contact bearing from the SKF Explorer range. This component is suited to high-speed applications – it delivers excellent accuracy levels and precise shaft guidance. It also produces very little vibration and offers smooth shaft running. Because it generates minimal heat, it keeps its lubrication. This not only makes it virtually maintenance-free but also enables it to function at high temperatures without any significant dimensional stability loss.
• Angular contact ball bearing type
• Parallel bore type
• Made from steel
• Cage material of fibreglass reinforced nylon 66
• Dynamic load rating of 21.6 kN
• Static load rating of 14.3 kN
• Sealed end type
• Inner diameter of 25 mm
• Outer diameter of 52 mm
• Two rows
• Plain race type
• Race width of 20.6 mm
Application Information
• Materials handling
• Wind energy generation
• Steel mills
• Machine tool industries
Is this ball bearing used for axial loads or radial loads?
This versatile ball bearing from SKF is suitable for both radial and axial load applications. It can withstand heavy axial forces in one direction, as well as heavy thrusts. This is due to the angle of contact that's made between its rolling elements and the inner and outer races.
