SKF 7313 BECBP Single Row Angular Contact Ball Bearing- Open Type 65mm I.D, 140mm O.D
- RS Stock No.:
- 207-5535
- Mfr. Part No.:
- 7313 BECBP
- Brand:
- SKF
Subtotal (1 unit)*
£212.98
(exc. VAT)
£255.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £212.98 |
*price indicative
- RS Stock No.:
- 207-5535
- Mfr. Part No.:
- 7313 BECBP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 65mm | |
Outside Diameter | 140mm | |
Race Width | 33mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Static Load Rating | 86.5kN | |
Dynamic Load Rating | 116kN | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 7313 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 65mm | ||
Outside Diameter 140mm | ||
Race Width 33mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Static Load Rating 86.5kN | ||
Dynamic Load Rating 116kN | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 7313 | ||
- COO (Country of Origin):
- DE

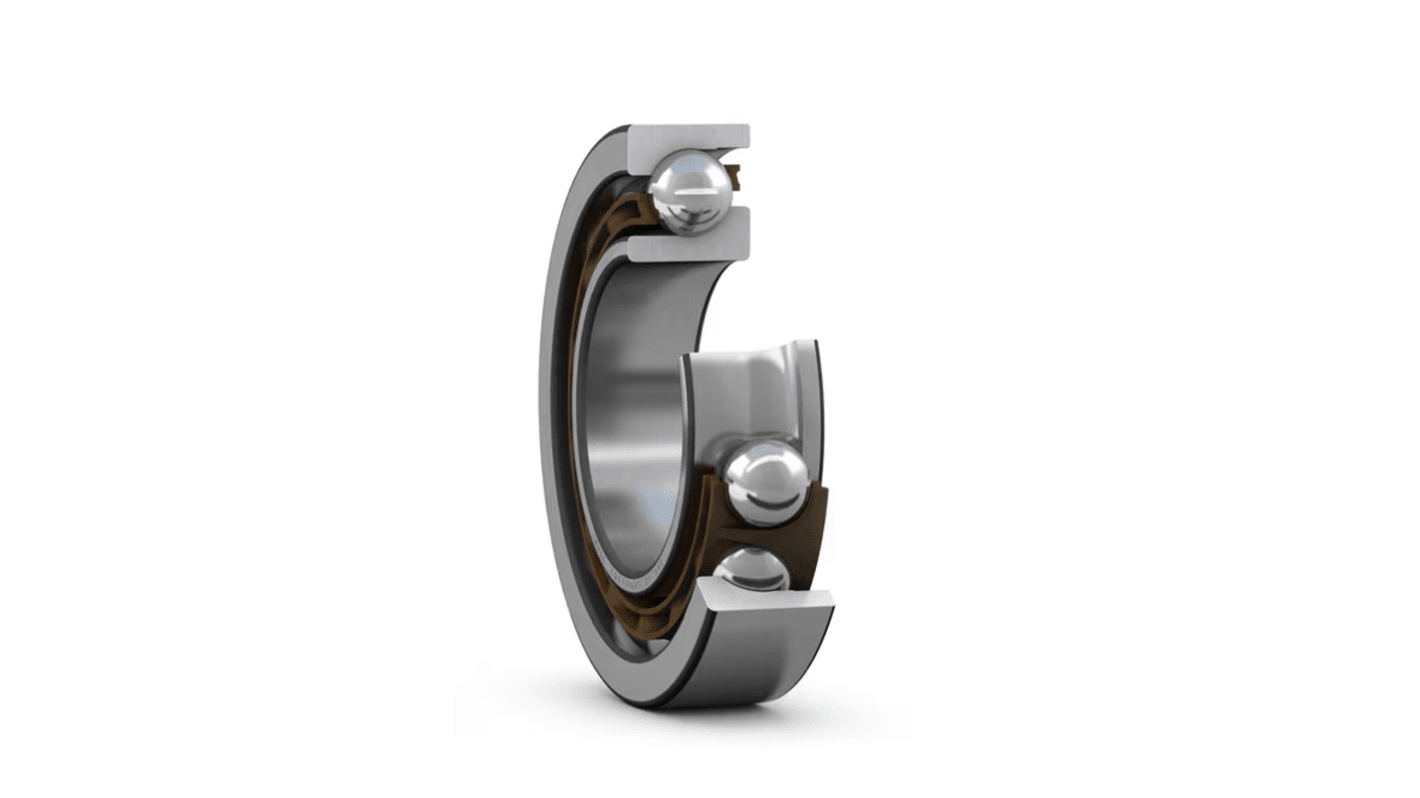

SKF Angular Contact Ball Bearing, 65mm Inside Diameter, 140mm Outside Diameter - 7313 BECBP
This angular contact ball bearing is designed for precision applications. With an inside diameter of 65mm and an outside diameter of 140mm, it offers robust performance in various mechanical environments. This single row bearing excels with its open-type sealing arrangement and steel construction, suitable for diverse industrial applications.
Features & Benefits
• Static load rating of 86.5 kN ensures reliability under heavy loads
• Single row design optimises space while maintaining strength
• Non-metallic cage reduces friction and operational noise
• Open type configuration facilitates easy maintenance and lubrication
• Medium series classification simplifies selection for standard requirements
• Single row design optimises space while maintaining strength
• Non-metallic cage reduces friction and operational noise
• Open type configuration facilitates easy maintenance and lubrication
• Medium series classification simplifies selection for standard requirements
Applications
• Utilised in electric motors for efficient energy transfer
• Effective in robotics for precise positioning tasks
• Suitable for automation systems requiring high-speed performance
• Can be used in industrial gearboxes for effective load handling
• Applied in CNC machinery to support bearing systems
• Effective in robotics for precise positioning tasks
• Suitable for automation systems requiring high-speed performance
• Can be used in industrial gearboxes for effective load handling
• Applied in CNC machinery to support bearing systems
What are the temperature limits for this particular bearing?
This bearing typically operates effectively within a temperature range of -30°C to +120°C, making it suitable for various industrial applications where temperature fluctuations may occur.
How does the dynamic load rating affect the bearing's performance?
The dynamic load rating of 116 kN indicates the maximum load the bearing can endure during operation without premature failure, ensuring optimal performance under varying operational conditions.
What type of lubrication is recommended for optimal performance?
It is advisable to use high-quality grease for lubrication to maintain performance, ensuring smooth operation and reducing wear over time.
Can this bearing be used in high-speed applications?
Yes, it is rated for a maximum reference speed of 6000 r/min and limiting speed of 6300 r/min, making it suitable for high-speed applications in automation and machinery.
