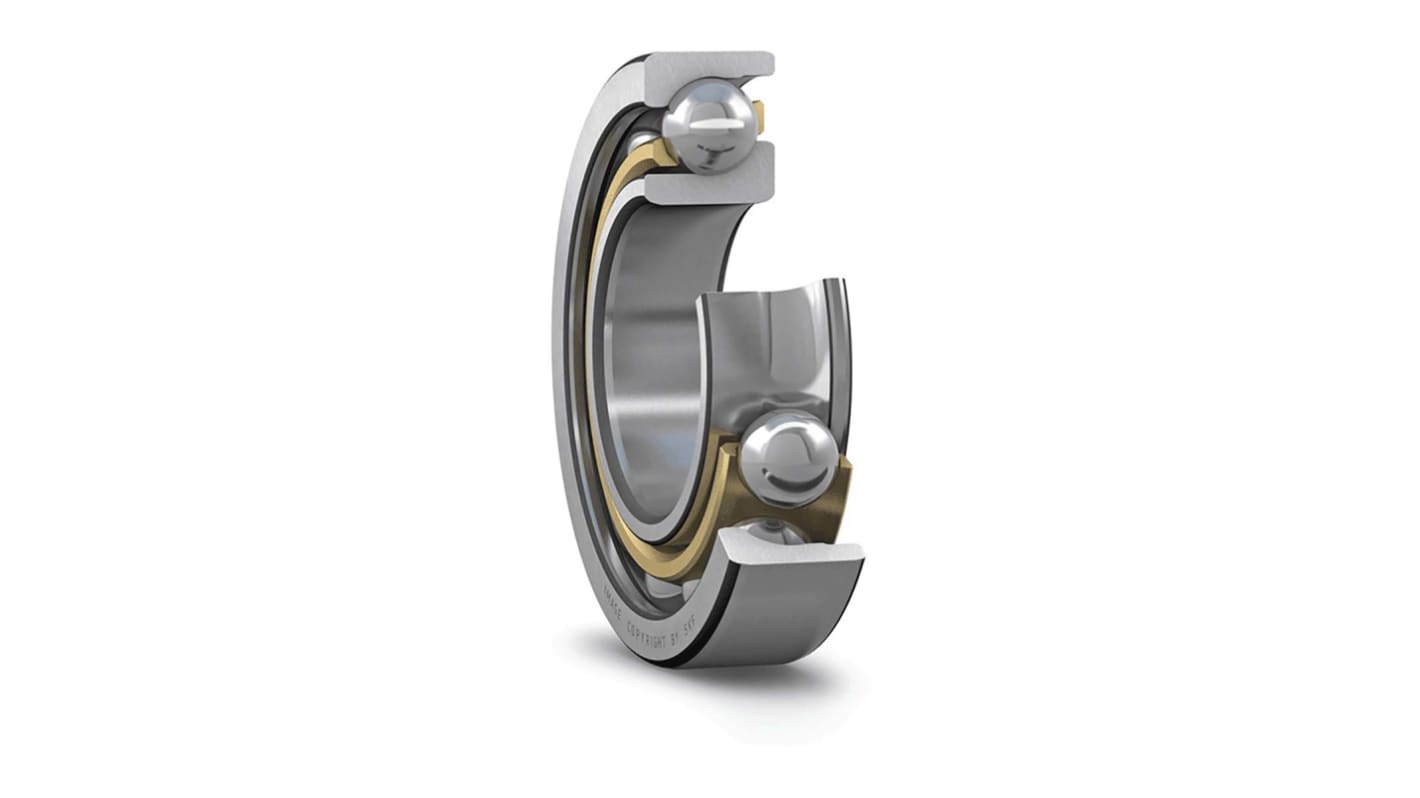

SKF 7313 BEGAM Single Row Angular Contact Ball Bearing- Open Type 65mm I.D, 140mm O.D
- RS Stock No.:
- 207-5536
- Mfr. Part No.:
- 7313 BEGAM
- Brand:
- SKF
Subtotal (1 unit)*
£326.35
(exc. VAT)
£391.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £326.35 |
*price indicative
- RS Stock No.:
- 207-5536
- Mfr. Part No.:
- 7313 BEGAM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 65mm | |
Outside Diameter | 140mm | |
Race Width | 33mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Brass | |
Number of Rows | 1 | |
Static Load Rating | 86.5kN | |
Dynamic Load Rating | 116kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 7313 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 65mm | ||
Outside Diameter 140mm | ||
Race Width 33mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Brass | ||
Number of Rows 1 | ||
Static Load Rating 86.5kN | ||
Dynamic Load Rating 116kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 7313 | ||
- COO (Country of Origin):
- DE
The SKF Angular contact ball bearing has 65mm inner bore and 140mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This bearing is designed to accommodate combined loads, i.e. Simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
Single row
Cylindrical type bore
Steel bearing
Nominal contact angle 40 deg
Cylindrical type bore
Steel bearing
Nominal contact angle 40 deg
