SKF 7313 BECBM Single Row Angular Contact Ball Bearing- Open Type 65mm I.D, 140mm O.D
- RS Stock No.:
- 207-5534
- Mfr. Part No.:
- 7313 BECBM
- Brand:
- SKF
Subtotal (1 unit)*
£322.46
(exc. VAT)
£386.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £322.46 |
*price indicative
- RS Stock No.:
- 207-5534
- Mfr. Part No.:
- 7313 BECBM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 65mm | |
Outside Diameter | 140mm | |
Race Width | 33mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Brass | |
Number of Rows | 1 | |
Static Load Rating | 86.5kN | |
Dynamic Load Rating | 116kN | |
Bore Type | Parallel | |
Clearance Code | CB | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 7313 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 65mm | ||
Outside Diameter 140mm | ||
Race Width 33mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Brass | ||
Number of Rows 1 | ||
Static Load Rating 86.5kN | ||
Dynamic Load Rating 116kN | ||
Bore Type Parallel | ||
Clearance Code CB | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 7313 | ||
- COO (Country of Origin):
- DE

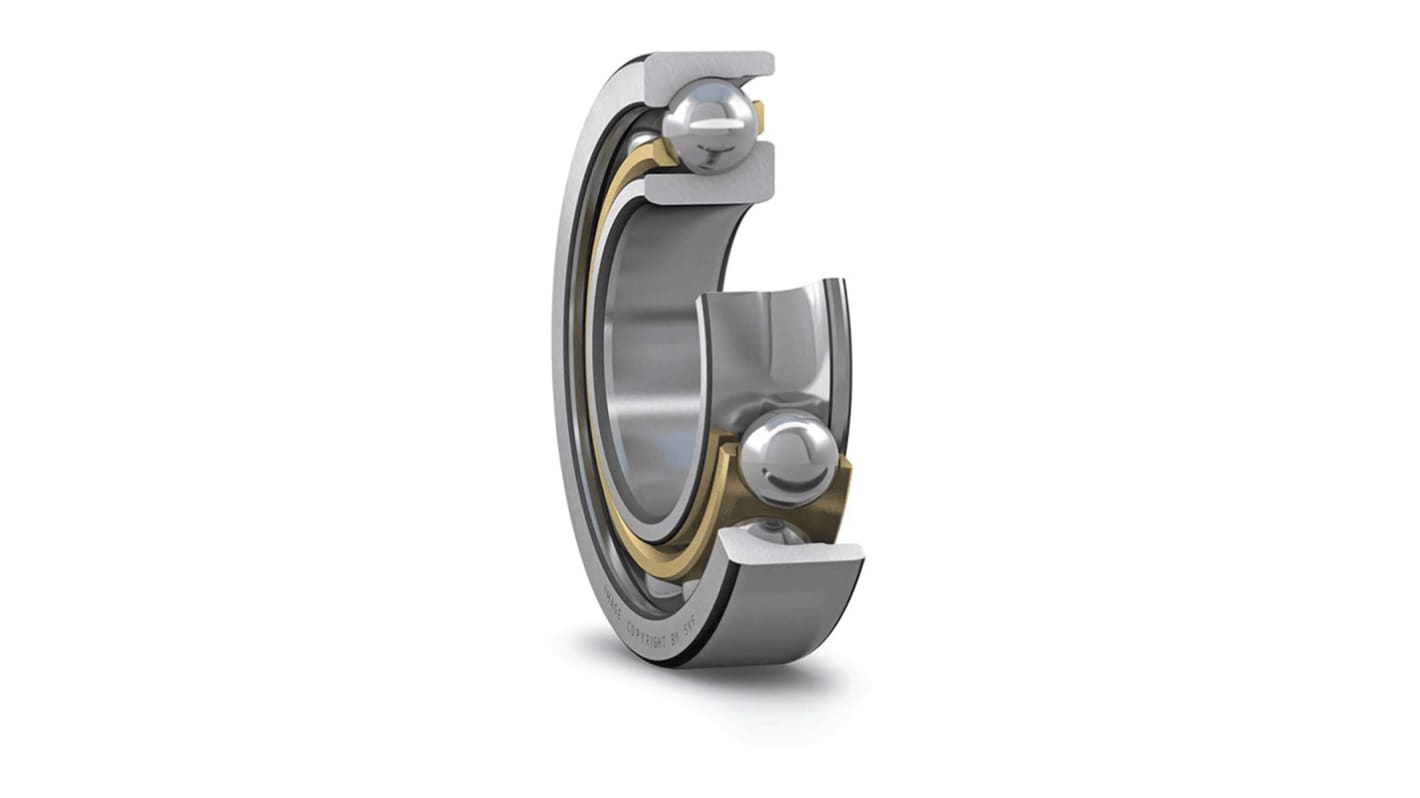

SKF Angular Contact Ball Bearing, 65mm Inside Diameter, 140mm Outside Diameter - 7313 BECBM
This angular contact ball bearing is designed to accommodate heavy radial and axial loads in one direction. It features a 65mm inside diameter and a 140mm outside diameter, is ideal for high-performance applications in various industries. Constructed from steel, this open type ball bearing combines durability with functionality to ensure optimal performance.
Features & Benefits
• High load capacity for demanding industrial requirements
• Lightweight brass cage enhances reliability and performance
• Open type design allows for easy lubrication access
• Single row structure suitable for axial loads in one direction
• Lightweight brass cage enhances reliability and performance
• Open type design allows for easy lubrication access
• Single row structure suitable for axial loads in one direction
Applications
• Used for precision machinery requiring axial support
• Suitable for motors in industrial automation
• Ideal for use in mechanical and electronic systems
• Compatible with equipment needing reliable load handling
• Suitable for motors in industrial automation
• Ideal for use in mechanical and electronic systems
• Compatible with equipment needing reliable load handling
How does the open type design benefit lubrication maintenance?
The open type design allows quick and straightforward lubrication application, ensuring that the bearings remain well-lubricated for optimal performance and longevity, reducing maintenance interruptions.
What considerations should be taken when mounting this bearing?
It is essential to ensure that the housing and shaft tolerances are appropriately matched to prevent premature wear. Proper alignment is crucial to avoid an increase in axial play, which can affect overall performance.
What load ratings indicate the suitability for heavy-duty applications?
With a static load rating of 86.5kN and a dynamic load rating of 116kN, this bearing type is suitable for handling significant loads, making it ideal for heavy-duty mechanical applications that require reliability.
What maintenance practices are recommended for this type of bearing?
Regular inspection and reapplication of grease or lubricant are recommended. Its also crucial to monitor for wear and alignment to maintain its optimal functionality throughout its lifespan.
How is the performance of this bearing affected by temperature variations?
This bearing can operate effectively within a wide temperature range. It is vital to assess the temperature conditions of the application to ensure that they do not exceed the bearings operational limits, which can impact its performance and lifespan.
