SKF 6414/C4 Single Row Deep Groove Ball Bearing- Open Type 70mm I.D, 180mm O.D
- RS Stock No.:
- 207-5415
- Mfr. Part No.:
- 6414/C4
- Brand:
- SKF
Subtotal (1 unit)*
£451.30
(exc. VAT)
£541.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £451.30 |
*price indicative
- RS Stock No.:
- 207-5415
- Mfr. Part No.:
- 6414/C4
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 70mm | |
Outside Diameter | 180mm | |
Race Width | 42mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C4 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 104kN | |
Dynamic Load Rating | 143kN | |
Bore Type | Parallel | |
Bearing Series | 4 Heavy | |
Partial Bearing Code | 6414 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 70mm | ||
Outside Diameter 180mm | ||
Race Width 42mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C4 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 104kN | ||
Dynamic Load Rating 143kN | ||
Bore Type Parallel | ||
Bearing Series 4 Heavy | ||
Partial Bearing Code 6414 | ||
- COO (Country of Origin):
- FR

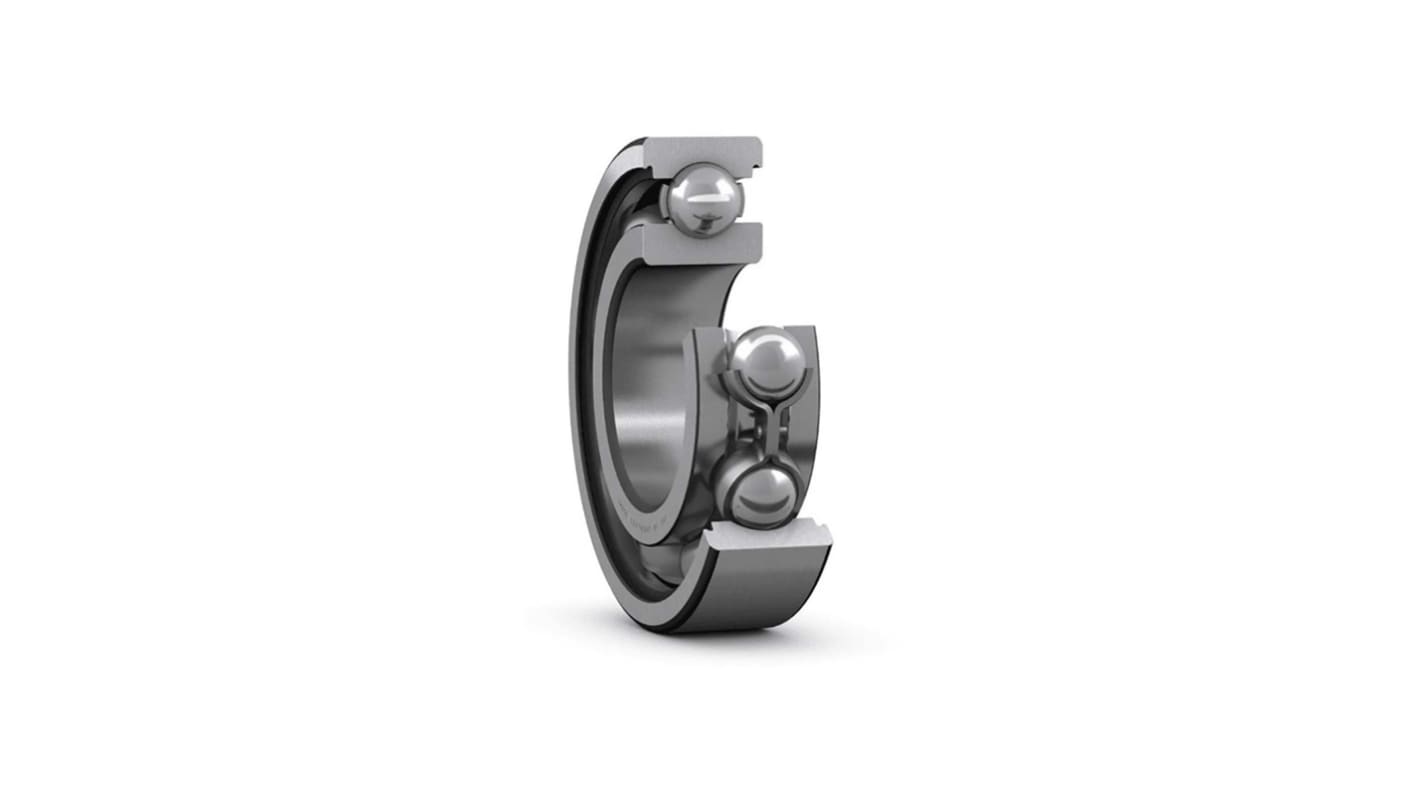

SKF Ball Bearing, 70 mm ID, 180 mm OD - 6414/C4
Want an energy-efficient way to rotate machinery components at high speed? This deep-groove ball bearing from SKF features a low-friction-torque design that minimises power consumption and cuts down on noise. It also minimises abrasion, which enables the bearing to operate at a lower temperature, so it offers a longer working life. Bearings of this type are commonly used in equipment such as pumps, gearboxes and fans.
• Low-maintenance option with no additional lubrication needed after installation
• Limiting speed of 1900 revolutions per minute (r/min) to handle high-speed operation
• Stainless-steel material for durability and corrosion resistance
• Limiting speed of 1900 revolutions per minute (r/min) to handle high-speed operation
• Stainless-steel material for durability and corrosion resistance
Application Information
• Wind farms
• Agricultural machinery
• Compressors
• Pumps
• Electrical motors
• Industrial gearboxes
• Agricultural machinery
• Compressors
• Pumps
• Electrical motors
• Industrial gearboxes
Why should I use a single row deep-groove ball bearing?
Deep-groove ball bearings offer lower friction than other types, making easy work of rotating components at high speed. This saves energy, reduces maintenance costs and keeps noise levels down.
What kind of loads is this ball bearing suitable for?
Deep groove ball bearings are ideal for rotating large loads at high speeds. They can handle a radial load combined with a limited axial load in both directions.
