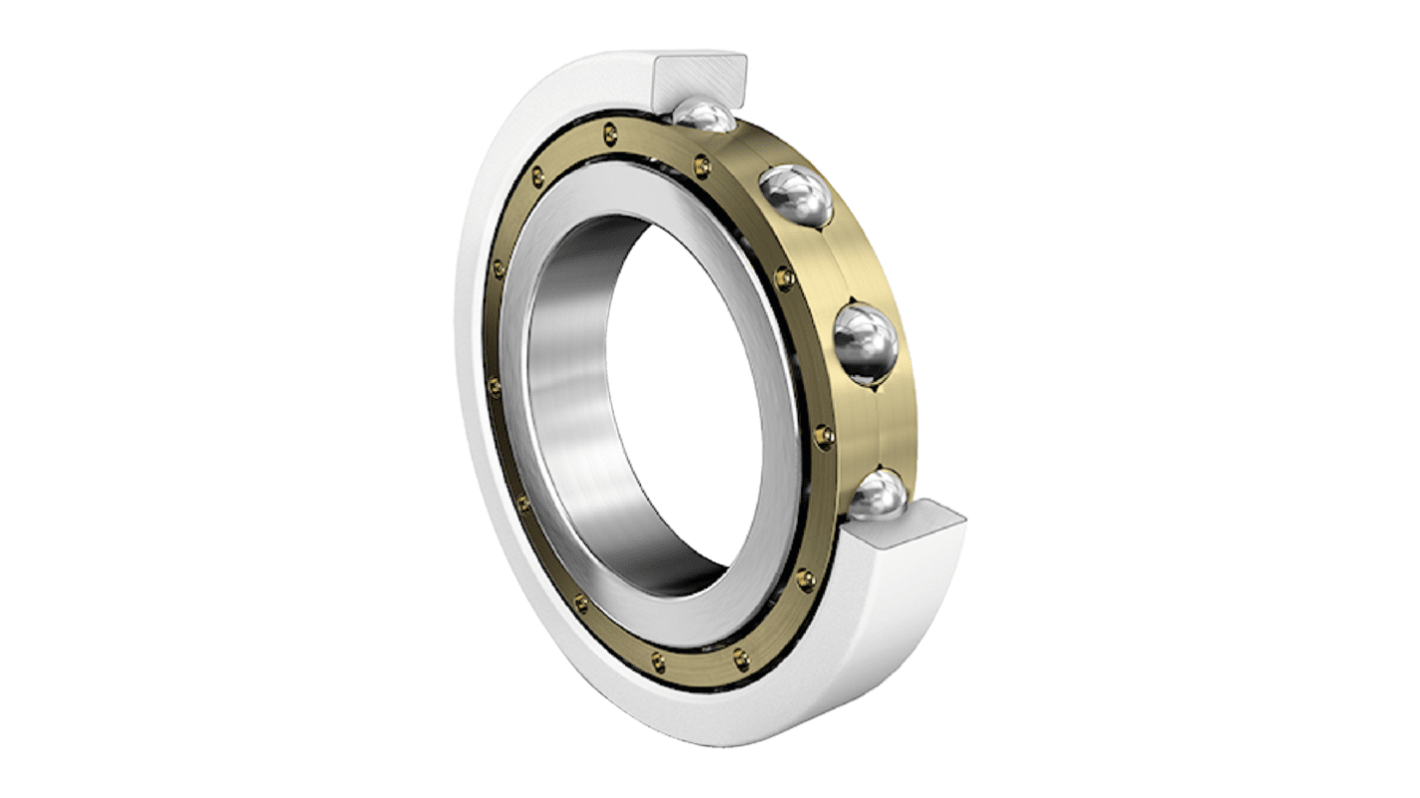

FAG 6220-M-J20AA-C4 1 Row Ball Bearing - 100 mm ID, 180 mm OD
- RS Stock No.:
- 312-327
- Mfr. Part No.:
- 6220-M-J20AA-C4
- Brand:
- FAG
Subtotal (1 unit)*
£1,178.40
(exc. VAT)
£1,414.08
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,178.40 |
*price indicative
- RS Stock No.:
- 312-327
- Mfr. Part No.:
- 6220-M-J20AA-C4
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 100mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 180mm | |
| Race Width | 34mm | |
| Race Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Machined Brass | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | C4 | |
| Static Load Rating | 93000N | |
| Dynamic Load Rating | 130000N | |
| Series | 62 | |
| Standards/Approvals | DIN 625-1 | |
| Bore Type | Cylindrical | |
| Limiting Speed | 6500rpm | |
| Flange Outside Diameter | 180mm | |
| Race Type | Deep Grooved | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 100mm | ||
Product Type Ball Bearing | ||
Outside Diameter 180mm | ||
Race Width 34mm | ||
Race Material Steel | ||
Ball Material Steel | ||
Cage Material Machined Brass | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance C4 | ||
Static Load Rating 93000N | ||
Dynamic Load Rating 130000N | ||
Series 62 | ||
Standards/Approvals DIN 625-1 | ||
Bore Type Cylindrical | ||
Limiting Speed 6500rpm | ||
Flange Outside Diameter 180mm | ||
Race Type Deep Grooved | ||
Bearing Type Deep Groove | ||
RoHS Status: Exempt
The FAG Deep Groove Ball Bearing is a precision engineered component designed for reliability and performance in various industrial applications. This particular variant features an innovative ceramic coating, ensuring enhanced durability and resistance to wear. With solid brass cage construction, it guarantees optimal rolling element guidance and performance. Its unique design allows for an extensive operational temperature range, making it suitable for demanding environments.
Offers a robust design that supports high load capacities
Ensures smooth operation with reduced friction and energy loss
Designed to withstand varying temperature conditions enhancing versatility
Not sealed allowing for easy maintenance and lubrication
