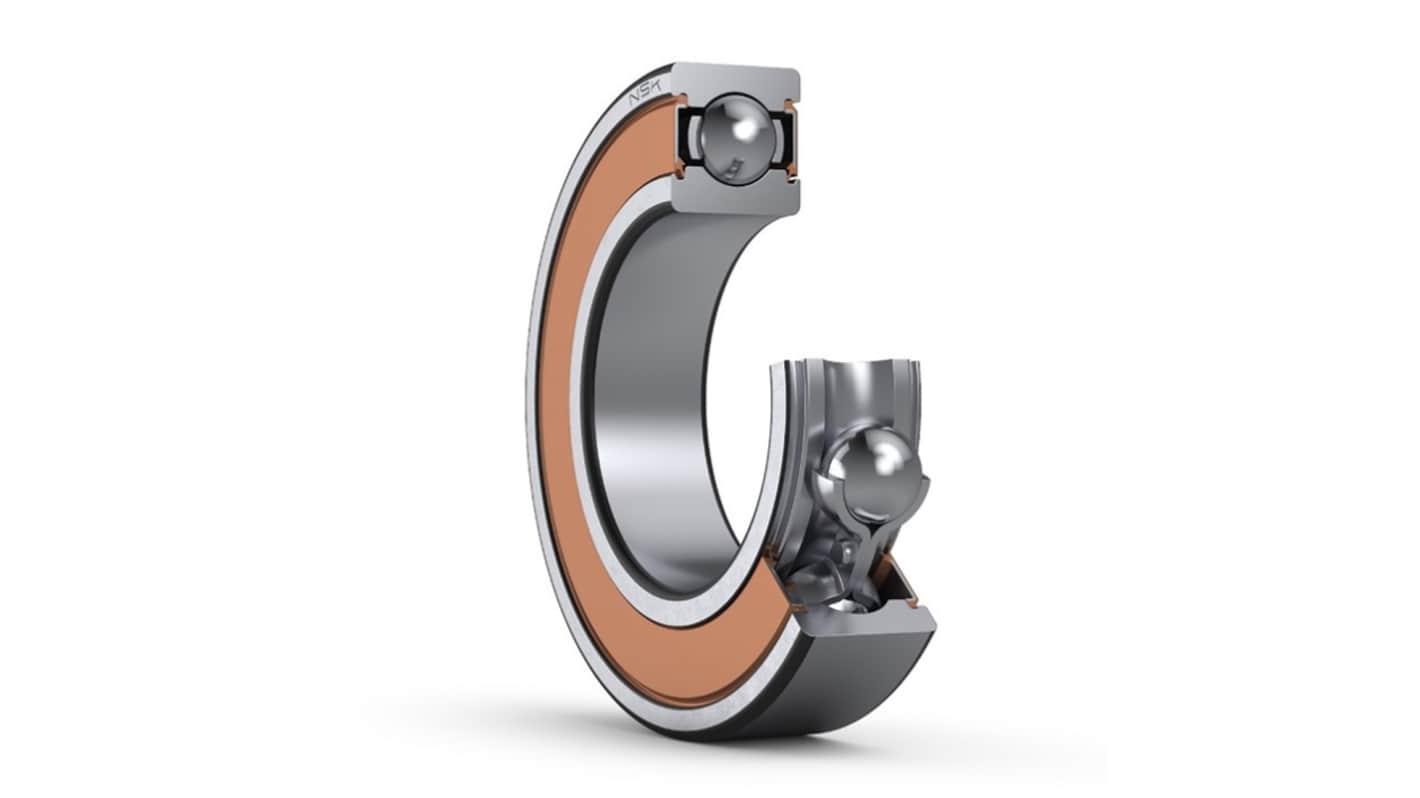

NSK 6314DDUC3 1 Row Deep Groove Ball Bearing - 70 mm ID, 150 mm OD
- RS Stock No.:
- 643-806
- Mfr. Part No.:
- 6314DDUC3
- Brand:
- NSK
Subtotal (1 unit)*
£110.66
(exc. VAT)
£132.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £110.66 |
*price indicative
- RS Stock No.:
- 643-806
- Mfr. Part No.:
- 6314DDUC3
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 70 mm | |
| Outside Diameter | 150 mm | |
| Race Width | 35mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 68000N | |
| Dynamic Load Rating | 115000N | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 3200rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 70 mm | ||
Outside Diameter 150 mm | ||
Race Width 35mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 68000N | ||
Dynamic Load Rating 115000N | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 3200rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
Non Compliant
- COO (Country of Origin):
- PL
The NSK Bearing has a 70 mm bore diameter, a 150 mm outer diameter, and a 35 mm width, making it suitable for larger mechanical assemblies and applications with higher load requirements. The C3 clearance allows for better handling of thermal expansion, making it ideal for high-speed and high-temperature environments. The rubber seals (DDU) ensure that the bearing remains protected from dirt, dust, and moisture while retaining lubrication. This bearing is designed for reliable, low-maintenance operation in both dynamic and static load conditions.
Durable construction
Excellent wear resistance due to the high quality materials
Compact design providing optimal space usage with minimal weight
