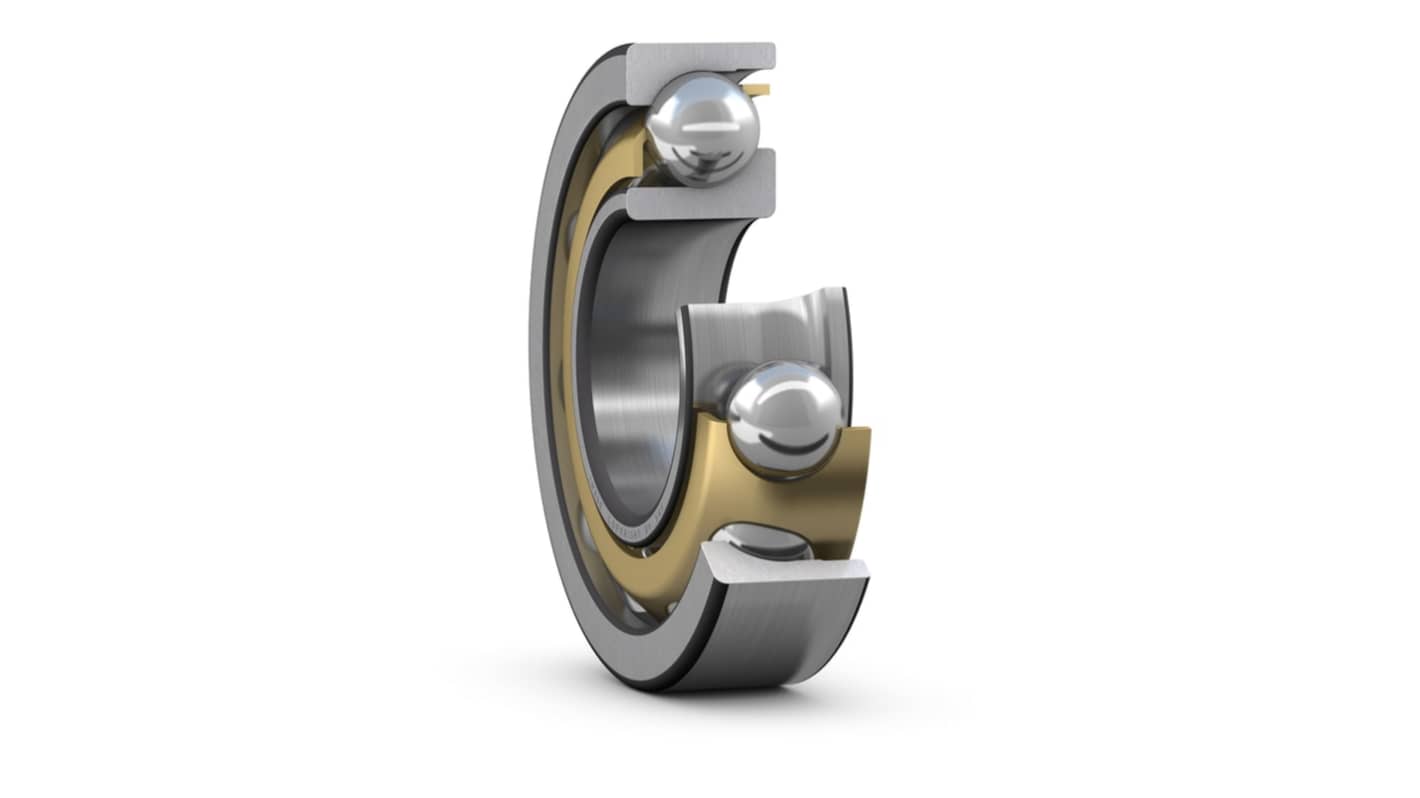

SKF 71908 ACDGA/P4A 1 Row Angular Contact Ball Bearing - 40 mm ID, 62 mm OD 12 mm Race Width
- RS Stock No.:
- 461-892
- Mfr. Part No.:
- 71908 ACDGA/P4A
- Brand:
- SKF
Subtotal (1 unit)*
£238.68
(exc. VAT)
£286.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £238.68 |
*price indicative
- RS Stock No.:
- 461-892
- Mfr. Part No.:
- 71908 ACDGA/P4A
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 40 mm | |
| Product Type | Angular Contact Ball Bearing | |
| Outside Diameter | 62 mm | |
| Race Width | 12mm | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 8kN | |
| Contact Angle | 25° | |
| Dynamic Load Rating | 11.7kN | |
| Standards/Approvals | RoHS | |
| Series | 71908 | |
| Limiting Speed | 30000, 18000rpm | |
| Race Type | Grooved | |
| Bearing Type | Angular Contact | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 40 mm | ||
Product Type Angular Contact Ball Bearing | ||
Outside Diameter 62 mm | ||
Race Width 12mm | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 8kN | ||
Contact Angle 25° | ||
Dynamic Load Rating 11.7kN | ||
Standards/Approvals RoHS | ||
Series 71908 | ||
Limiting Speed 30000, 18000rpm | ||
Race Type Grooved | ||
Bearing Type Angular Contact | ||
- COO (Country of Origin):
- IT
Gavin
The SKF Angular Contact Ball Bearing is engineered for high-performance applications, effectively managing both radial and axial loads simultaneously. Designed to excel in demanding conditions, it ensures exceptional accuracy and stability at elevated speeds. The innovative design allows for universal matching, facilitating seamless arrangements that enhance load sharing without the need for shims. Ideal for use in precision machinery, its robust construction withstands heavy loads while maintaining low operational temperatures, providing reliability and consistency.
Very high running accuracy ensures optimal performance
High load capacity supports challenging operational demands
Universally matchable for versatile arrangement solutions
Optimised for robust performance in compact designs
Facilitates effective load distribution in multi bearing setups
Developed to perform under low to moderate temperature conditions
No shims required for arrangement simplicity
Precision engineered for longevity and reliability in use
