SKF 7206 ACDGA/P4A 1 Row Angular Contact Ball Bearing - 30 mm ID, 62 mm OD 16 mm Race Width
- RS Stock No.:
- 462-397
- Mfr. Part No.:
- 7206 ACDGA/P4A
- Brand:
- SKF
Subtotal (1 unit)*
£273.64
(exc. VAT)
£328.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £273.64 |
*price indicative
- RS Stock No.:
- 462-397
- Mfr. Part No.:
- 7206 ACDGA/P4A
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 30 mm | |
| Outside Diameter | 62 mm | |
| Race Width | 16mm | |
| Ball Material | Steel | |
| Race Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 15.3kN | |
| Contact Angle | 25° | |
| Dynamic Load Rating | 23.4kN | |
| Standards/Approvals | RoHS | |
| Series | 7206 | |
| Limiting Speed | 20000, 34000rpm | |
| Bearing Type | Angular Contact | |
| Race Type | Grooved | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 30 mm | ||
Outside Diameter 62 mm | ||
Race Width 16mm | ||
Ball Material Steel | ||
Race Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 15.3kN | ||
Contact Angle 25° | ||
Dynamic Load Rating 23.4kN | ||
Standards/Approvals RoHS | ||
Series 7206 | ||
Limiting Speed 20000, 34000rpm | ||
Bearing Type Angular Contact | ||
Race Type Grooved | ||
Zoya

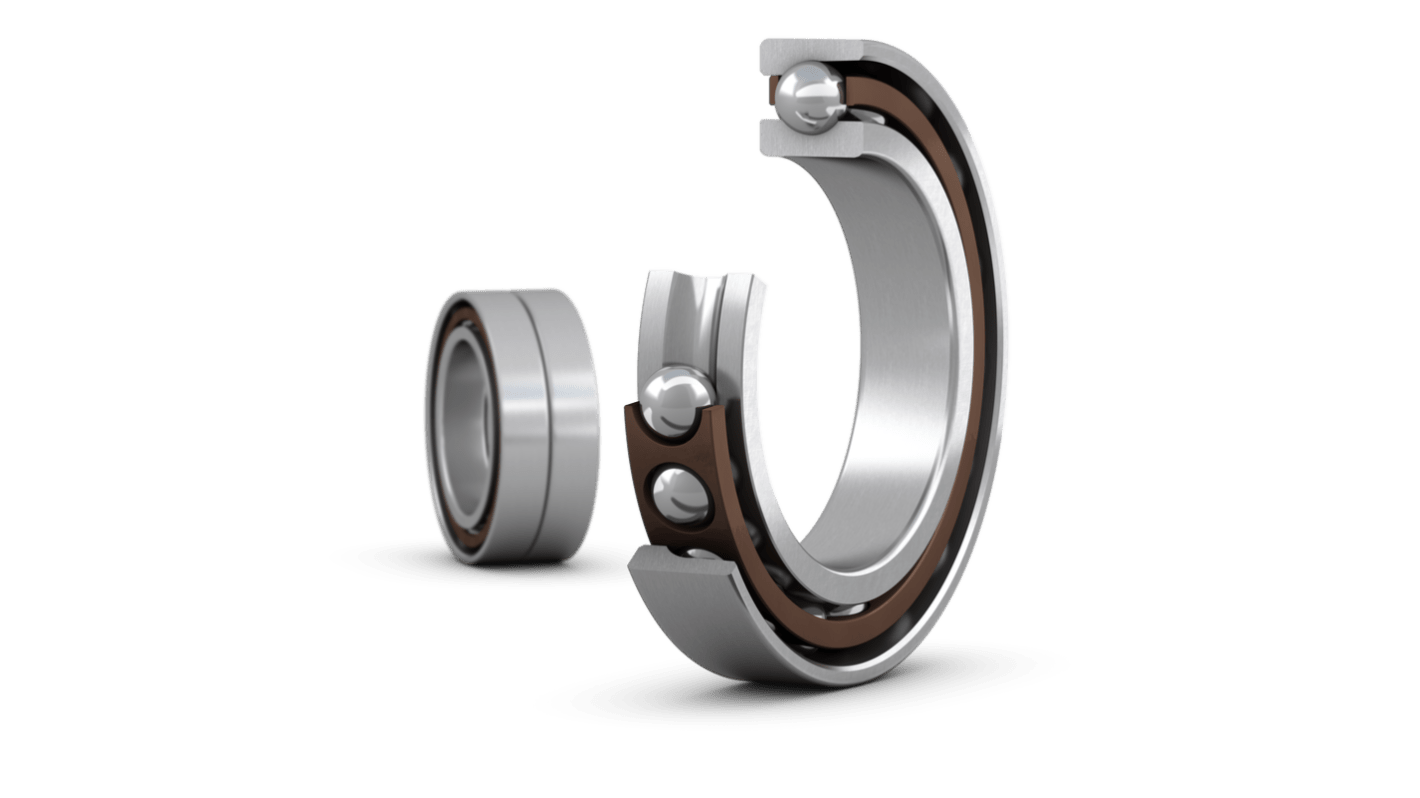

The SKF Super-precision angular contact ball bearing is engineered for exceptional performance in demanding applications. Crafted to accommodate both radial and axial loads acting simultaneously, it excels in scenarios where high accuracy and reliability are paramount. Designed for heavy loads at elevated speeds while maintaining low operating temperatures, this bearing offers a universal matching capability, allowing for diverse configurations without the need for shims. Whether used in single or matched arrangements, it provides optimal load-sharing properties, enhancing operational efficiency across various machinery. With its unique combination of high load capacity and running accuracy, this bearing stands out as a vital component in the world of precision engineering.
Universally matchable for flexible installation options
High load carrying capacity suitable for rigorous applications
Designed for precise performance with minimal friction
Constructed from durable bearing steel for enhanced longevity
Low to moderate operating temperatures increase reliability
Facilitates effective load sharing in paired arrangements
Optimised for high speed applications without compromising stability
