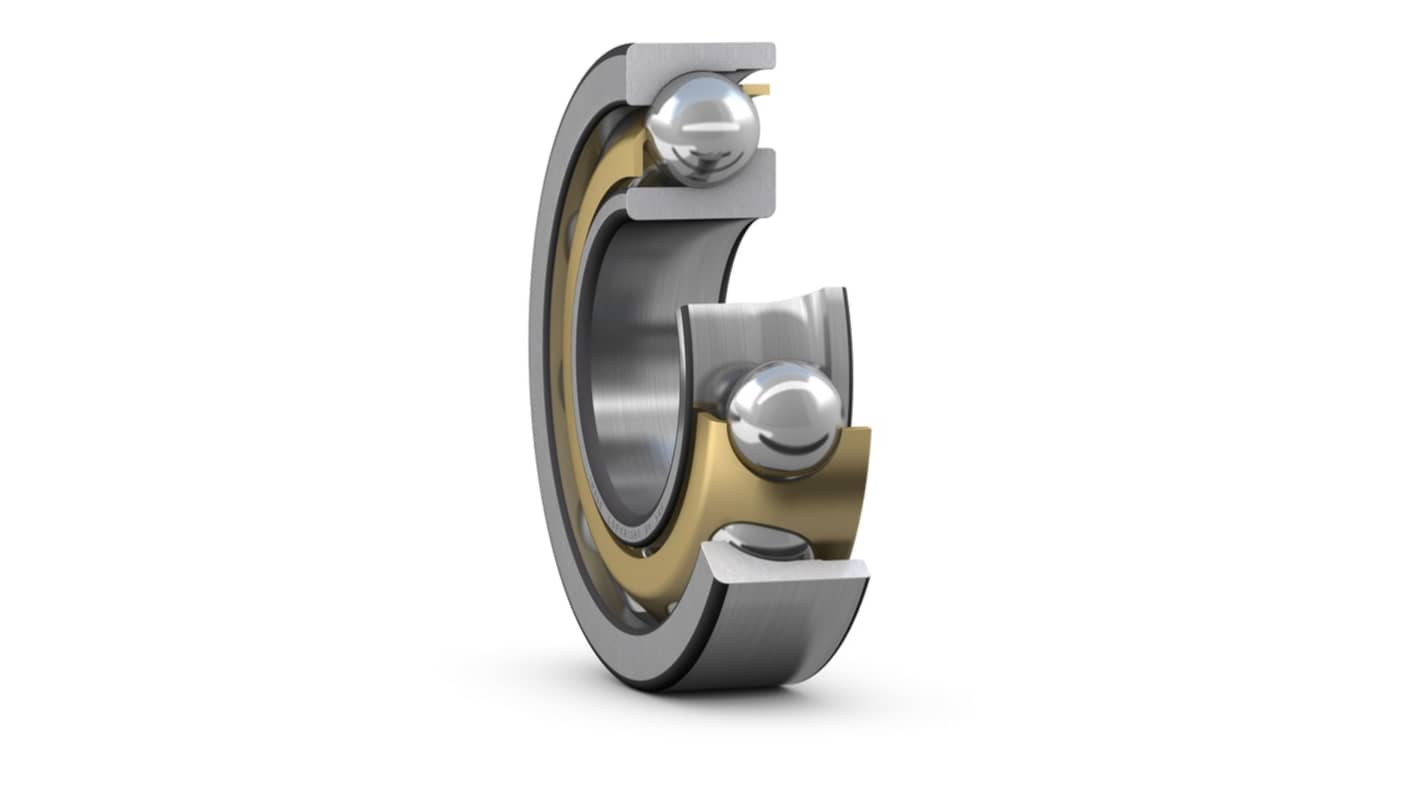

SKF 7206 BECBY 1 Row Angular Contact Ball Bearing - 30 mm ID, 62 mm OD 16 mm Race Width
- RS Stock No.:
- 585-890
- Mfr. Part No.:
- 7206 BECBY
- Brand:
- SKF
Subtotal (1 pack of 5 units)*
£354.65
(exc. VAT)
£425.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £354.65 | £70.93 |
*price indicative
- RS Stock No.:
- 585-890
- Mfr. Part No.:
- 7206 BECBY
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 30 mm | |
| Outside Diameter | 62 mm | |
| Race Width | 16mm | |
| Cage Material | Brass Sheet Metal | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 15.6kN | |
| Dynamic Load Rating | 24kN | |
| Series | 7206 | |
| Bore Type | Parallel | |
| Standards/Approvals | RoHS Compliance | |
| Limiting Speed | 14000rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 30 mm | ||
Outside Diameter 62 mm | ||
Race Width 16mm | ||
Cage Material Brass Sheet Metal | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 15.6kN | ||
Dynamic Load Rating 24kN | ||
Series 7206 | ||
Bore Type Parallel | ||
Standards/Approvals RoHS Compliance | ||
Limiting Speed 14000rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
- COO (Country of Origin):
- DE
The SKF Angular contact ball bearing is designed to deliver superior performance in a wide range of applications. The precision engineering of this component ensures optimal loading characteristics, making it an ideal choice for both radial and axial load discrepancies. Built with high quality materials, it promises durability and longevity, even in the most demanding environments. Its distinctive design allows for increased speed capability and reduced friction, enhancing overall operation efficiency. This bearing is expertly crafted to meet the rigorous standards expected in modern engineering while providing enhanced reliability and performance under various conditions.
Offers optimal load distribution for improved overall performance
Designed for high speed applications which ensuring minimal energy loss
Manufactured from advanced materials for extended service life
Facilitates easy installation and maintenance saving time and resources
Engineered to withstand adverse environmental conditions without compromising functionality
