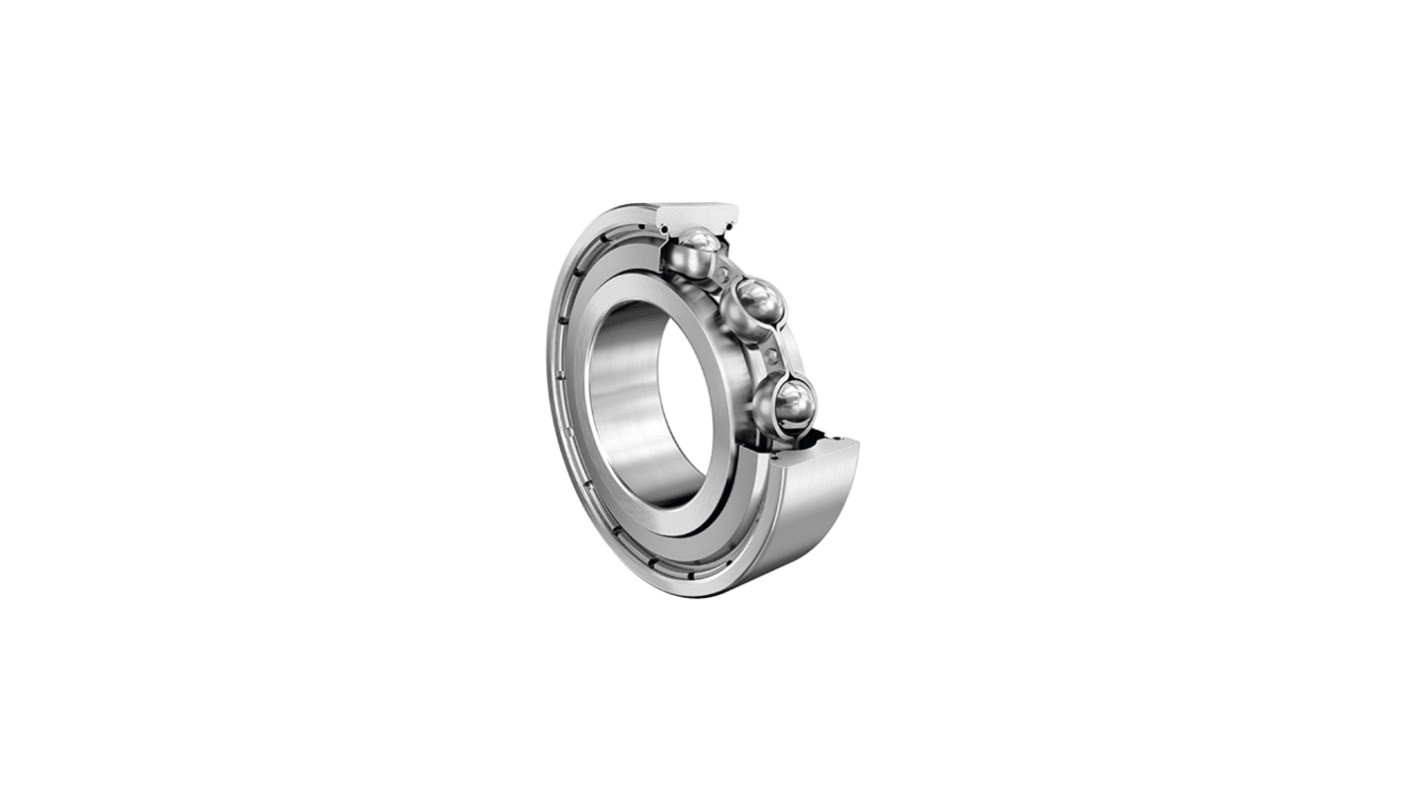

FAG 6017-Z 1 Row Deep Groove Ball Bearing - 85 mm ID, 130 mm OD
- RS Stock No.:
- 313-132
- Mfr. Part No.:
- 6017-Z
- Brand:
- FAG
Subtotal (1 unit)*
£95.68
(exc. VAT)
£114.82
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £95.68 |
*price indicative
- RS Stock No.:
- 313-132
- Mfr. Part No.:
- 6017-Z
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 85mm | |
| Outside Diameter | 130mm | |
| Race Width | 22mm | |
| Race Material | Bearing Steel | |
| Cage Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Static Load Rating | 43000N | |
| Internal Clearance | Normal | |
| Dynamic Load Rating | 53000N | |
| Bore Type | Cylindrical | |
| Series | 60 | |
| Standards/Approvals | ISO 492:2023 | |
| Limiting Speed | 7100rpm | |
| Bearing Type | Deep Groove | |
| Race Type | Deep Grooved | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 85mm | ||
Outside Diameter 130mm | ||
Race Width 22mm | ||
Race Material Bearing Steel | ||
Cage Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Static Load Rating 43000N | ||
Internal Clearance Normal | ||
Dynamic Load Rating 53000N | ||
Bore Type Cylindrical | ||
Series 60 | ||
Standards/Approvals ISO 492:2023 | ||
Limiting Speed 7100rpm | ||
Bearing Type Deep Groove | ||
Race Type Deep Grooved | ||
- COO (Country of Origin):
- DE
Schaeffler Series 60 Deep Groove Ball Bearing, 85mm bore, 130mm outside diameter - 6017-Z
This deep-groove ball bearing is a single-row, shielded rotary bearing designed to support radial and moderate axial loads in rotating assemblies. It combines hardened bearing-steel races with a steel cage and a cylindrical bore to provide consistent operation in machinery where sealed protection and defined internal clearance are required. The unit conforms to ISO 492:2023 dimensions and is suitable for installations demanding standardised geometry and predictable running behaviour.
Features and Benefits:
• 53,000 N dynamic load rating delivers higher operational capacity
• 43,000 N static load rating resists permanent deformation under Peak loads
• Shielded end type reduces ingress of contaminants during rotation
• Steel cage ensures stable ball spacing under continuous operation
• Normal internal clearance supports predictable axial and radial play
• 43,000 N static load rating resists permanent deformation under Peak loads
• Shielded end type reduces ingress of contaminants during rotation
• Steel cage ensures stable ball spacing under continuous operation
• Normal internal clearance supports predictable axial and radial play
Applications
• Suitable for electric motor spindle support where standardised fit is required
• Ideal for gearbox intermediate shafts operating at moderate revs
• Used with conveyor rollers requiring shielded bearings
• Can be used for pump drive supports in industrial plant
• Suitable for fan assemblies where a cylindrical bore is needed
• Ideal for gearbox intermediate shafts operating at moderate revs
• Used with conveyor rollers requiring shielded bearings
• Can be used for pump drive supports in industrial plant
• Suitable for fan assemblies where a cylindrical bore is needed
What is the maximum recommended rotational speed for this bearing?
The bearings limiting speed is 7,100 rpm, indicating its maximum continuous operating rotational rate under standard lubrication and mounting conditions.
What materials are used for the load-bearing surfaces?
The races are manufactured from bearing steel, providing hardened contact surfaces for rolling elements.
How does the bore type affect mounting options?
The cylindrical bore requires interference or adaptor fittings for secure shaft mounting rather than a tapered-seat arrangement.
How is contamination controlled with this configuration?
The shielded ends offer a barrier against particles while allowing some ventilation compared with fully sealed designs.
