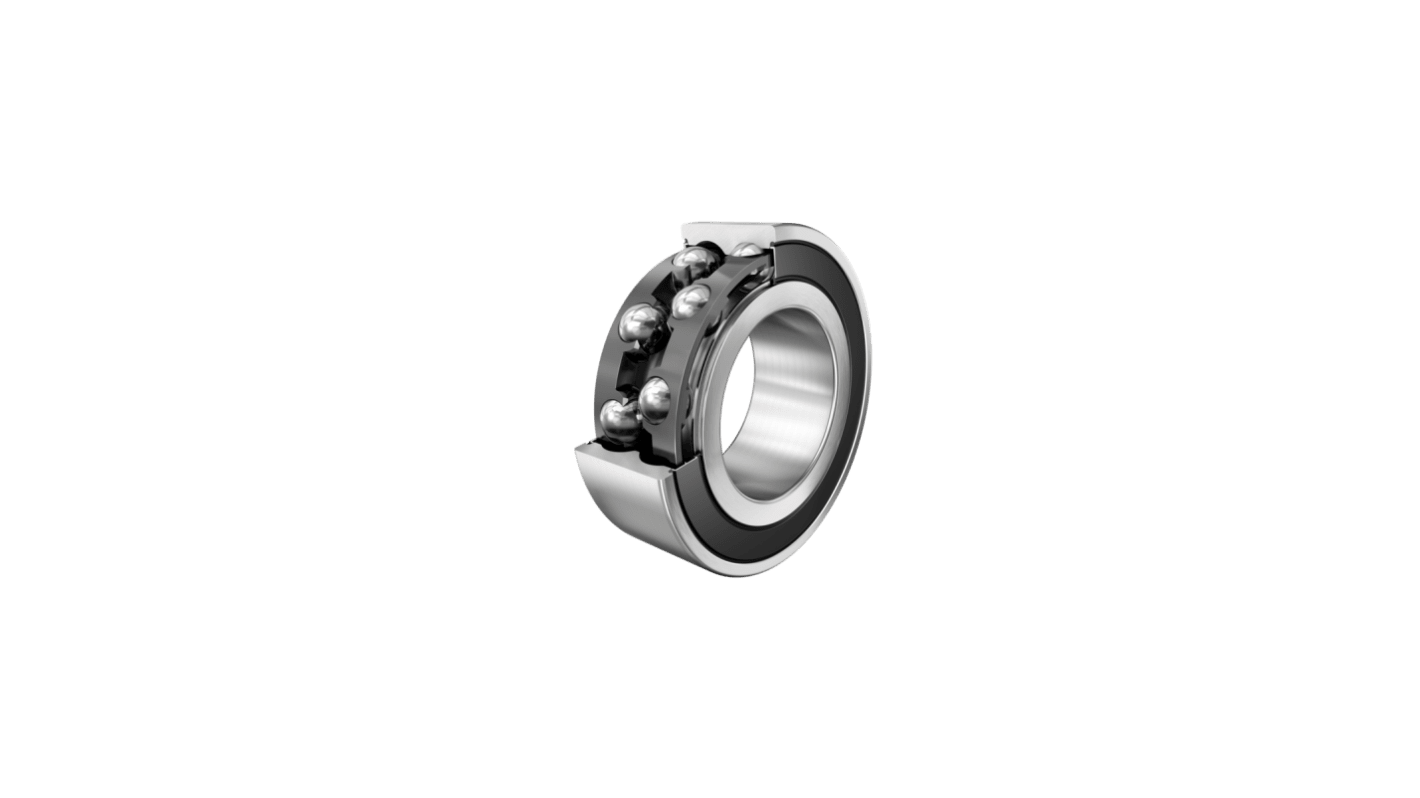

INA 3804-2Z 2 Row Angular Contact Ball Bearing - 20 mm ID, 32 mm OD 10 mm Race Width
- RS Stock No.:
- 313-039
- Mfr. Part No.:
- 3804-2Z
- Brand:
- INA
Subtotal (1 unit)*
£35.34
(exc. VAT)
£42.41
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £35.34 |
*price indicative
- RS Stock No.:
- 313-039
- Mfr. Part No.:
- 3804-2Z
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 20 mm | |
| Outside Diameter | 32 mm | |
| Race Width | 10mm | |
| Cage Material | Fibreglass Reinforced Polyamide | |
| End Type | Unsealed | |
| Number of Rows | 2 | |
| Internal Clearance | N | |
| Contact Angle | 25° | |
| Static Load Rating | 4750N | |
| Dynamic Load Rating | 5600N | |
| Series | 38..-B-2RZ-TVH | |
| Standards/Approvals | RoHS Exempt | |
| Limiting Speed | 17400rpm | |
| Flange Outside Diameter | 32mm | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 20 mm | ||
Outside Diameter 32 mm | ||
Race Width 10mm | ||
Cage Material Fibreglass Reinforced Polyamide | ||
End Type Unsealed | ||
Number of Rows 2 | ||
Internal Clearance N | ||
Contact Angle 25° | ||
Static Load Rating 4750N | ||
Dynamic Load Rating 5600N | ||
Series 38..-B-2RZ-TVH | ||
Standards/Approvals RoHS Exempt | ||
Limiting Speed 17400rpm | ||
Flange Outside Diameter 32mm | ||
Bearing Type Double Row Angular Contact Ball | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SK
The INA Angular Contact Ball Bearing is engineered to deliver precision and reliability in various applications. This double row design features a solid plastic cage, which not only enhances durability but also aids in reducing operational noise. Ideal for environments where space is limited, this product excels in load bearing capacities while ensuring efficient performance. The grease lubrication system ensures a lifetime of maintenance free use, making it a suitable choice for those seeking dependable solutions.
Robust plastic cage supports stability under varying load conditions
Defined operating temperature range accommodates challenging environments
Maintenance free design promotes ease of use over long durations
Optimized for axial and radial load applications which ensuring effectiveness
Quality construction supports dimensional stability under thermal stress
